C-Box Screw Cover Wwith Knockouts
NEMA 1
Application
- Designed for general purpose indoor commercial use as a junction, pull or switch box.
Standards
- UL-50 Type 1
- cUL Type 1
- Complies with:
- NEMA Type 1
- IEC 60529, IP29
Construction
- Formed and spot welded from 16 or 14 gauge steel depending on size.
- Flat steel covers fastened with plated steel screws.
- Keyhole slots permit cover to be lifted off without removing screws entirely.

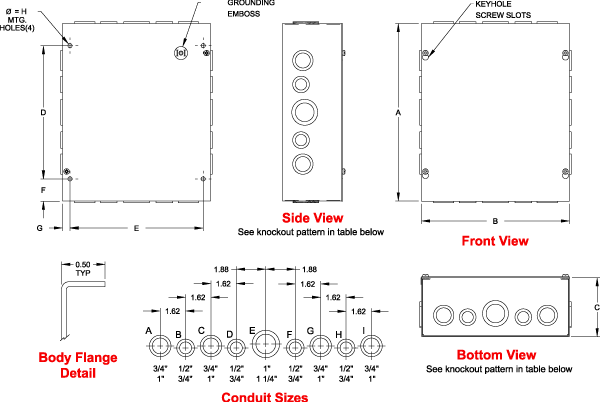

- Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
- Through holes in back for wall mounting.
- Grounding location embossed in body.
Finish
- Enclosure and cover are finished in ANSI 61 gray powder coating.
Part No. | Overall Dimensions |
Knockout Pattern Sides | Knockout Pattern Top & Bottom |
Ship Wt. lbs. |
|||||||
A | B | C | D | E | F | G | H | ||||
CSKO443 | 4 | 4 | 3 | 2 | 3 | 0.88 | 0.50 | B - C | 0.28 | A - B | 2 |
CSKO663 | 6 | 6 | 3 | 3 | 5 | 1.50 | 0.50 | B-C-D | 0.28 | B-C-D | 3 |
CSKO863 | 8 | 6 | 3 | 5 | 5 | 1.50 | 0.50 | F-G-H-I | 0.28 | B-C-D | 3 |
CSKO16143 | 16 | 14 | 3 | 13 | 13 | 1.50 | 0.50 | B-C-D-E-F-G-H | 0.28 | B-C-D-E-F-G-H | 12 |
CSKO18143 | 18 | 14 | 3 | 15 | 13 | 1.50 | 0.50 | A-B-C-D-E-F-G-H-I | 0.28 | B-C-D-E-F-G-H | 13 |
CSKO20143 | 20 | 14 | 3 | 17 | 13 | 1.50 | 0.50 | A-B-C-D-E-F-G-H-I | 0.28 | B-C-D-E-F-G-H | 13 |
CSKO444 | 4 | 4 | 4 | 2 | 3 | 0.88 | 0.50 | B - C | 0.28 | A - B | 2 |
CSKO644 | 6 | 4 | 4 | 3 | 3 | 1.50 | 0.50 | B-C-D | 0.28 | A - B | 3 |
CSKO664 | 6 | 6 | 4 | 3 | 5 | 1.50 | 0.50 | B-C-D | 0.28 | B-C-D | 3 |
CSKO864 | 8 | 6 | 4 | 5 | 5 | 1.50 | 0.50 | F-G-H-I | 0.28 | B-C-D | 5 |
CSKO884 | 8 | 8 | 4 | 5 | 7 | 1.50 | 0.50 | F-G-H-I | 0.28 | F-G-H-I | 5 |
CSKO1084 | 10 | 8 | 4 | 7 | 7 | 1.50 | 0.50 | F-G-H-I | 0.28 | F-G-H-I | 6 |
CSKO10104 | 10 | 10 | 4 | 7 | 9 | 1.50 | 0.50 | F-G-H-I | 0.28 | C-D-E-F-G | 6 |
CSKO1284 | 12 | 8 | 4 | 9 | 7 | 1.50 | 0.50 | C-D-E-F-G | 0.28 | F-G-H-I | 7 |
CSKO12104 | 12 | 10 | 4 | 9 | 9 | 1.50 | 0.50 | C-D-E-F-G | 0.28 | C-D-E-F-G | 8 |
CSKO12124 | 12 | 12 | 4 | 9 | 11 | 1.50 | 0.50 | C-D-E-F-G | 0.28 | C-D-E-F-G | 9 |
CSKO16124 | 16 | 12 | 4 | 13 | 11 | 1.50 | 0.50 | B-C-D-E-F-G-H | 0.28 | C-D-E-F-G | 12 |
CSKO18124 | 18 | 12 | 4 | 15 | 11 | 1.50 | 0.50 | A-B-C-D-E-F-G-H-I | 0.28 | C-D-E-F-G | 12 |
CSKO18184 | 18 | 18 | 4 | 15 | 17 | 1.50 | 0.50 | A-B-C-D-E-F-G-H-I | 0.28 | A-B-C-D-E-F-G-H-I | 16 |
CSKO24244 | 24 | 24 | 4 | 21 | 23 | 1.50 | 0.50 | C-D-E-F-G | 0.28 | C-D-E-F-G | 33 |
CSKO666 | 6 | 6 | 6 | 3 | 5 | 1.50 | 0.50 | B-C-D | 0.28 | B-C-D | 4 |
CSKO886 | 8 | 8 | 6 | 5 | 7 | 1.50 | 0.50 | F-G-H-I | 0.28 | F-G-H-I | 6 |
CSKO1086 | 10 | 8 | 6 | 7 | 7 | 1.50 | 0.50 | F-G-H-I | 0.28 | F-G-H-I | 7 |
CSKO10106 | 10 | 10 | 6 | 7 | 9 | 1.50 | 0.50 | F-G-H-I | 0.28 | C-D-E-F-G | 8 |
CSKO12106 | 12 | 10 | 6 | 9 | 9 | 1.50 | 0.50 | C-D-E-F-G | 0.28 | C-D-E-F-G | 9 |
CSKO12126 | 12 | 12 | 6 | 9 | 11 | 1.50 | 0.50 | C-D-E-F-G | 0.28 | C-D-E-F-G | 10 |
CSKO16126 | 16 | 12 | 6 | 13 | 11 | 1.50 | 0.50 | B-C-D-E-F-G-H | 0.28 | C-D-E-F-G | 13 |
CSKO16166 | 16 | 16 | 6 | 13 | 15 | 1.50 | 0.50 | B-C-D-E-F-G-H | 0.28 | B-C-D-E-F-G-H | 16 |
CSKO18126 | 18 | 12 | 6 | 15 | 11 | 1.50 | 0.50 | A-B-C-D-E-F-G-H-I | 0.28 | C-D-E-F-G | 14 |
CSKO18186 | 18 | 18 | 6 | 15 | 17 | 1.50 | 0.50 | A-B-C-D-E-F-G-H-I | 0.28 | A-B-C-D-E-F-G-H-I | 19 |
CSKO24186 | 24 | 18 | 6 | 21 | 17 | 1.50 | 0.50 | A-B-C-D-E-F-G-H-I | 0.28 | A-B-C-D-E-F-G-H-I | 26 |
CSKO24246 | 24 | 24 | 6 | 21 | 22.5 | 1.50 | 0.75 | A-B-C-D-E-F-G-H-I | 0.44 | A-B-C-D-E-F-G-H-I | 37 |
CSKO30246 | 30 | 24 | 6 | 27 | 22.5 | 1.50 | 0.75 | A-B-C-D-E-F-G-H-I | 0.44 | A-B-C-D-E-F-G-H-I | 45 |
CSKO36246 | 36 | 24 | 6 | 33 | 22.5 | 1.50 | 0.75 | A-B-C-D-E-F-G-H-I | 0.44 | A-B-C-D-E-F-G-H-I | 57 |
CSKO12128 | 12 | 12 | 8 | 9 | 11 | 1.50 | 0.50 | C-D-E-F-G | 0.28 | C-D-E-F-G | 12 |
CSKO16168 | 16 | 16 | 8 | 13 | 15 | 1.50 | 0.50 | B-C-D-E-F-G-H | 0.28 | B-C-D-E-F-G-H | 20 |
CSKO24248 | 24 | 24 | 8 | 21 | 22.5 | 1.50 | 0.75 | A-B-C-D-E-F-G-H-I | 0.44 | A-B-C-D-E-F-G-H-I | 44 |
CSKO202010 | 20 | 20 | 10 | 17 | 19 | 1.50 | 0.75 | A-B-C-D-E-F-G-H-I | 0.28 | A-B-C-D-E-F-G-H-I | 37 |
CSKO242410 | 24 | 24 | 10 | 21 | 22.5 | 1.50 | 0.50 | A-B-C-D-E-F-G-H-I | 0.44 | A-B-C-D-E-F-G-H-I | 52 |
CSKO302010 | 30 | 20 | 10 | 27 | 18.5 | 1.50 | 0.75 | A-B-C-D-E-F-G-H-I | 0.44 | A-B-C-D-E-F-G-H-I | 59 |
CSKO362410 | 36 | 24 | 10 | 33 | 22.5 | 1.50 | 0.75 | A-B-C-D-E-F-G-H-I | 0.44 | A-B-C-D-E-F-G-H-I | 75 |
