Pushbutton Enclosures - NEMA 12
1489/1489M Continuous Hinge Series
Application
- Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- Provides protection from dirt, dust, oil and water.
Standards
- UL 508 Type 12
- CSA Type 12
- JIC standard EGP-1-1967, EMP-1-1967
- Complies with
- NEMA Type 12
- IEC 60529, IP54
- Appropriate components are required to maintain these standards.
Construction
- Formed 14 gauge steel.
- Smooth continuously welded seams.
- Welded brackets provide for enclosure mounting.
- Continuously hinged cover is secured with captive, plated steel screws which fasten into threaded sealed wells.
- Oil resistant gasket and adhesive.
- Weldnuts are provided for mounting inner panels.
- A removable 14 gauge inner panel is included.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Finish
- Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.
- Removable inner panel is finished in white powder coating.
Accessories

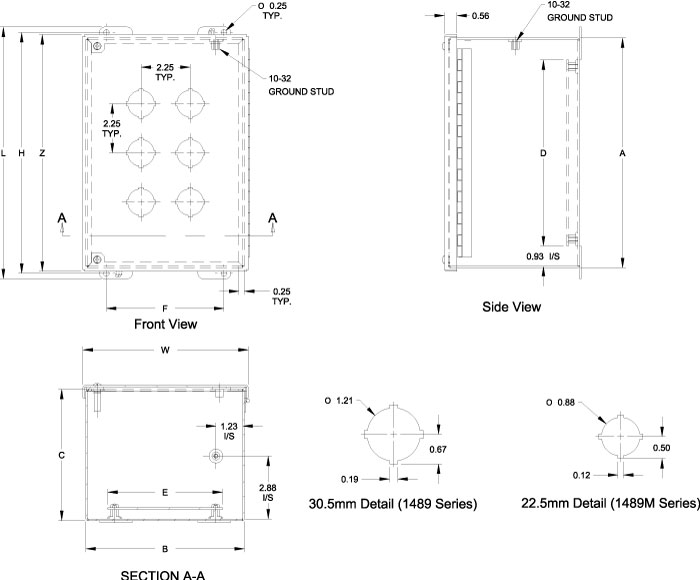

| Part No. | No. Of Holes |
Panel Size | Overall Dimensions | Ship Wt. Lbs. |
|||||||||
| 30.5mm Hole | 22.5mm Hole | A | B | C | D | E | F | H | L | W | Z | ||
| 1489P4 Buy › | 1489MP4 Buy › | 4 | 8.25 | 7.25 | 6.00 | 6.25 | 5.25 | 5.38 | 8.75 | 9.25 | 7.56 | 8.56 | 9 |
| 1489P6 Buy › | 1489MP6 Buy › | 6 | 10.50 | 7.25 | 6.00 | 8.50 | 5.25 | 5.38 | 11.00 | 11.50 | 7.56 | 10.81 | 11 |
| 1489P9 Buy › | 1489MP9 Buy › | 9 | 10.50 | 9.50 | 6.00 | 8.50 | 7.50 | 7.63 | 11.00 | 11.50 | 9.81 | 10.81 | 13 |
| 1489P12 Buy › | 1489MP12 Buy › | 12 | 12.75 | 9.50 | 6.00 | 10.75 | 7.50 | 7.63 | 13.25 | 13.75 | 9.81 | 13.06 | 15 |
| 1489P16 Buy › | 1489MP16 Buy › | 16 | 12.75 | 11.75 | 6.00 | 10.75 | 9.75 | 9.88 | 13.25 | 13.75 | 12.06 | 13.06 | 19 |
| 1489P20 Buy › | 1489MP20 Buy › | 20 | 15.00 | 11.75 | 6.00 | 13.00 | 9.75 | 9.88 | 15.50 | 16.00 | 12.06 | 15.31 | 21 |
| 1489P25 Buy › | 1489MP25 Buy › | 25 | 15.00 | 14.00 | 6.00 | 13.00 | 12.00 | 12.13 | 15.50 | 16.00 | 14.31 | 15.31 | 23 |
| 1489P30 Buy › | 1489MP30 Buy › | 30 | 17.25 | 14.00 | 6.00 | 15.25 | 12.00 | 12.13 | 17.75 | 18.25 | 14.31 | 17.56 | 28 |
| 1489P36 Buy › | 1489MP36 Buy › | 36 | 17.25 | 16.25 | 6.00 | 15.25 | 14.25 | 14.38 | 17.75 | 18.25 | 16.56 | 17.56 | 32 |
| 1489P42 Buy › | 1489MP42 Buy › | 42 | 19.50 | 16.25 | 6.00 | 17.50 | 14.25 | 14.38 | 20.00 | 20.50 | 16.56 | 19.81 | 29 |
We can take those parts and ship your enclosure ready to wire! Contact Gross Manufacturing, a UL 508A panel shop at Gross Automation, to learn more.
