Application

• Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.

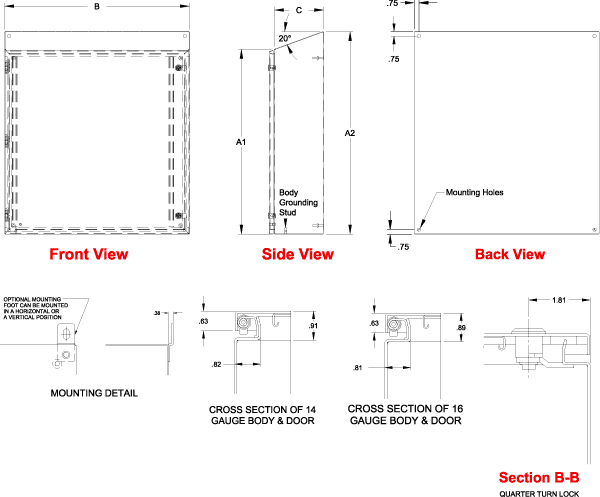

• Sloped top prevents water from resting on top as well as providing potential for controls mounting.
• Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
• A wide range of sizes and practical accessories make this product line a complete package.
• For high temperature applications, a gasket retainer may be required, please refer to factory.

Standards

• UL 508 Type 3R, 4, 12 and 13
• CSA Type 3R, 4, 12 and 13
• Complies with
  • NEMA 3R, 4, 12 and 13
  • IEC 60529, IP66


Construction

• Formed 14 or 16 gauge steel.
• Continuously welded seams ground smooth.
• Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
• Doors may be easily removed for modifications and are interchangeable.
• Oil resistant gaskets are permanently secured and can easily be replaced in the field if necessary.
• Collar studs provided for mounting inner panel.
• Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
• Bonding stud provided on door and grounding stud installed in enclosure.
• Hinges are finished in mild steel.
• Stainless steel hinge pins and quarter turns.

Finish

• Cover and enclosure are finished in recoatable RAL 7035 light gray textured powder coating.

Accessories

• Air conditioners
• Blowers
• Breather kits
• DIN rails
• DIN rail mounting kit
• Door stop kit
• Drip Shield Kit
• Filter fans
• Gland plates
• Heaters
• Handles
• Inner panels
• Quarter turn inserts and keys
• Literature pocket
• Mounting foot kit
• Swing frame
• Swing panel
• Replacement hinge pins
• Replacement quarter turn assemblies
• Thermostats
• Touch up paint
• UL/CSA approved hardware kit
• Padlock adapter (EPA)
