Application

• The splitter boxes are designed for distribution of up to 600 V (max) service using either 3 or 4 wires.


Standards

• CSA Certified Type 3R, 12, 4
• Complies with
  • IEC 60529, IP66

Construction

• Formed 14 and 16 gauge steel.

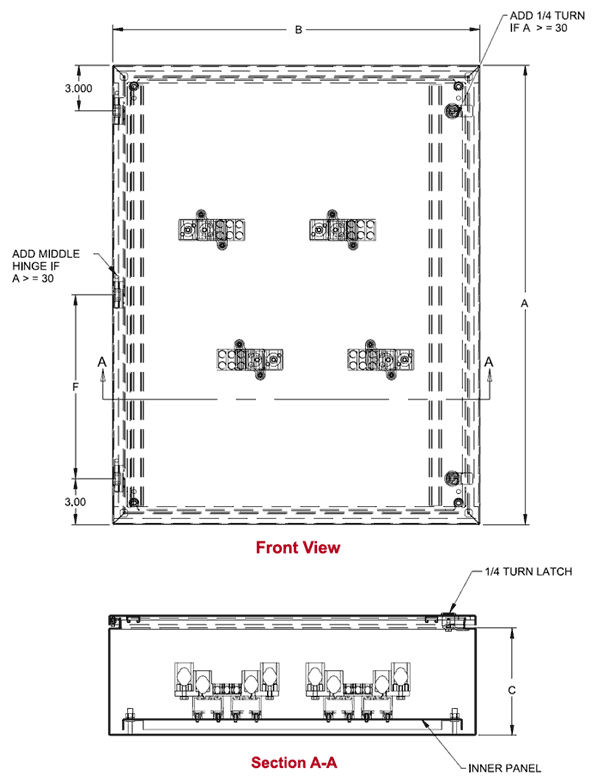

• Factory installed splitter blocks.
• Smooth, continuously welded seams ground smooth.
• Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
• Doors may be easily removed for modifications and are interchangeable.
• Oil resistant gaskets are permanently secured.
• Collar studs provided for mounting inner panel.
• Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
• Hinges are constructed from 304 stainless steel.
• Hinge pins are stainless steel.
• Inner panel is included.

Finish

• Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
• Inner panel is finished in white powder coating.
