HME Series Single Door Enclosure

Application

The HME product line provides users with a rugged housing for industrial control and operator interface in industrial environments.
Modular design permits joining of units together for large scale and mixed use applications.
Frame's 25mm hole pattern provides extensive component and accessory mounting flexibility.
A broad range of industry standard sizes are offered.

Standards

UL 508 Type 12
CSA Type 12
Complies with
- NEMA Type 12
- IEC 60529 IP54

Standard Configuration

Frame
Removable solid top panel
Lifting eyebolts (4)
Removable bottom panel w/gland plates
Solid front door with door frame
Removable rear cover panel
Inner mounting panel

Construction

Formed 14 gauge steel.
Fully welded frame with 25mm hole pattern for superior mounting flexibility.
Seamless foam in place gasket.
Reinforced eyebolts are provided for easy enclosure lifting.
Frames can be joined together with an optional joining kit.
Doors can be easily interchanged, removed and/or reversed.
Door opening 135°.
Optional formed 14 gauge steel side panels are sold separately (in pairs).
Bonding and grounding studs are provided for all doors and panels.

Finish

Phosphatized and finished in RAL 7035 light gray powder coating.
Inner panel is unpainted galvanized 12 gauge steel.

Accessories

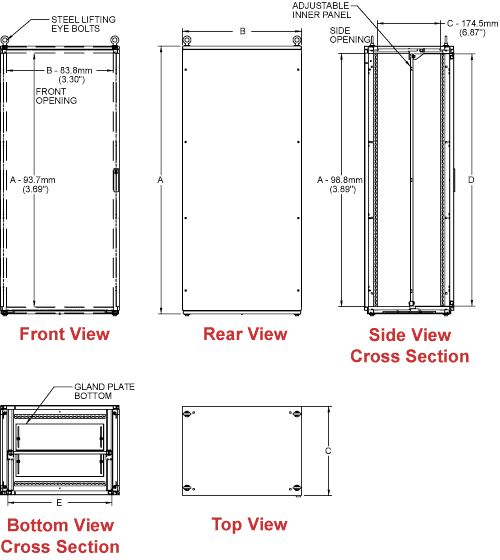

Part No.		Overall Dimensions (in/mm)			Panel Dimensions
Part No.		A	B	C	Height	Width
HME1465	inch	55.12	23.62	19.69	51.03	19.65
HME1465	mm	1400	600	500	1296	499
HME1466	inch	55.12	23.62	23.62	51.03	19.65
HME1466	mm	1400	600	600	1296	499
HME1468	inch	55.12	23.62	31.5	51.03	19.65
HME1468	mm	1400	600	800	1296	499
HME1485	inch	55.12	31.5	19.69	51.03	27.52
HME1485	mm	1400	800	500	1296	699
HME1486	inch	55.12	31.5	23.62	51.03	27.52
HME1486	mm	1400	800	600	1296	699
HME1488	inch	55.12	31.5	31.5	51.03	27.52
HME1488	mm	1400	800	800	1296	699
HME1665	inch	62.99	23.62	19.69	58.9	19.65
HME1665	mm	1600	600	500	1496	499
HME1666	inch	62.99	23.62	23.62	58.9	19.65
HME1666	mm	1600	600	600	1496	499
HME1668	inch	62.99	23.62	31.5	58.9	19.65
HME1668	mm	1600	600	800	1496	499
HME1685	inch	62.99	31.5	19.69	58.9	27.52
HME1685	mm	1600	800	500	1496	699
HME1686	inch	62.99	31.5	23.62	58.9	27.52
HME1686	mm	1600	800	600	1496	699
HME1688	inch	62.99	31.5	31.5	58.9	27.52
HME1688	mm	1600	800	800	1496	699
HME1864	inch	70.87	23.62	15.75	66.77	19.65
HME1864	mm	1800	600	400	1696	499
HME1865	inch	70.87	23.62	19.69	66.77	19.65
HME1865	mm	1800	600	500	1696	499
HME1866	inch	70.87	23.62	23.62	66.77	19.65
HME1866	mm	1800	600	600	1696	499
HME1868	inch	70.87	23.62	31.5	66.77	19.65
HME1868	mm	1800	600	800	1696	499
HME1884	inch	70.87	31.5	15.75	66.77	27.52
HME1884	mm	1800	800	400	1696	699
HME1885	inch	70.87	31.5	19.69	66.77	27.52
HME1885	mm	1800	800	500	1696	699
HME1886	inch	70.87	31.5	23.62	66.77	27.52
HME1886	mm	1800	800	600	1696	699
HME1888	inch	70.87	31.5	31.5	66.77	27.52
HME1888	mm	1800	800	800	1696	699
HME18104	inch	70.87	39.37	15.75	66.77	35.4
HME18104	mm	1800	1000	400	1696	899
HME18105	inch	70.87	39.37	19.69	66.77	35.4
HME18105	mm	1800	1000	500	1696	899
HME18106	inch	70.87	39.37	23.62	66.77	35.4
HME18106	mm	1800	1000	600	1696	899
HME18108	inch	70.87	39.37	31.5	66.77	35.4
HME18108	mm	1800	1000	800	1696	899
HME2045	inch	78.74	15.75	19.69	74.65	11.77
HME2045	mm	2000	400	500	1896	299
HME2064	inch	78.74	23.62	15.75	74.65	19.65
HME2064	mm	2000	600	400	1896	499
HME2065	inch	78.74	23.62	19.69	74.65	19.65
HME2065	mm	2000	600	500	1896	499
HME2066	inch	78.74	23.62	23.62	74.65	19.65
HME2066	mm	2000	600	600	1896	499
HME2068	inch	78.74	23.62	31.5	74.65	19.65
HME2068	mm	2000	600	800	1896	499
HME2084	inch	78.74	31.5	15.75	74.65	27.52
HME2084	mm	2000	800	400	1896	699
HME2085	inch	78.74	31.5	19.69	74.65	27.52
HME2085	mm	2000	800	500	1896	699
HME2086	inch	78.74	31.5	23.62	74.65	27.52
HME2086	mm	2000	800	600	1896	699
HME2088	inch	78.74	31.5	31.5	74.65	27.52
HME2088	mm	2000	800	800	1896	699
HME20106	inch	78.74	39.37	23.62	74.65	35.4
HME20106	mm	2000	1000	600	1896	899
HME20108	inch	78.74	39.37	31.5	74.65	35.4
HME20108	mm	2000	1000	800	1896	899
HME2246	inch	86.62	15.75	23.62	82.52	11.77
HME2246	mm	2200	400	600	2096	299
HME2265	inch	86.62	23.62	19.69	82.52	19.65
HME2265	mm	2200	600	500	2096	499
HME2266	inch	86.62	23.62	23.62	82.52	19.65
HME2266	mm	2200	600	600	2096	499
HME2285	inch	86.62	31.5	19.69	82.52	27.52
HME2285	mm	2200	800	500	2096	699
HME2286	inch	86.62	31.5	23.62	82.52	27.52
HME2286	mm	2200	800	600	2096	699
HME2288	inch	86.62	31.5	31.5	82.52	27.52
HME2288	mm	2200	800	800	2096	699
HME22105	inch	86.62	39.37	19.69	82.52	35.4
HME22105	mm	2200	1000	500	2096	899
HME22106	inch	86.62	39.37	23.62	82.52	35.4
HME22106	mm	2200	1000	600	2096	899
