1418 Series Single Door Enclosures - NEMA 12, 13

Continuous Hinge, Clamped Cover

Application

Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
Provides a degree of protection from falling dirt, dust, oil and water.

Standards

UL 508 Type 12 and 13
CSA Type 12 and 13
Complies with
- NEMA Type 12 and 13
- JIC EGP-1-1967 unless marked¹
- IEC 60529, IP54

Construction

Formed 14 gauge steel bodies and doors.
Smooth, continuously welded seams without knockouts, cutouts or holes.
Door and body stiffeners are provided in the larger enclosures for extra rigidity.
Welded brackets provide for enclosure mounting.
Formed lip on door and enclosure exclude flowing liquids and contaminants.
Continuously hinged door may be removed by pulling the hinge pin.
Door is secured with easily operated stainless steel clamps.
Provision for padlocking.
Oil resistant gaskets are permanently secured.
A removable 12 gauge inner panel is included.
Collar studs are provided for mounting inner panels.
A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
A literature pocket is provided for the inside of the door.

Finish

Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating on the outside, with white powder coating on the inside.
Removable inner panel is finished in white powder coating.

Accessories

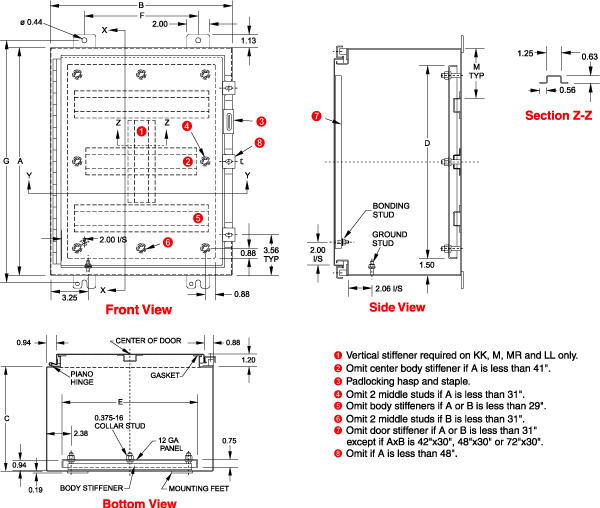

Part No.				Panel Size		Centers		Ship Wt. lbs
Part No.	A	B	C	D	E	F	G	Ship Wt. lbs
1418A6 Buy ›	12	24	6	9	21	18.0	13.25	34
1418B6 Buy ›	16	12	6	13	9	9.5	17.25	26
1418G6 Buy ›	16	16	6	13	13	10.0	17.25	32
1418CR6 Buy ›	16	20	6	13	17	14.0	17.25	38
1418CA6 Buy ›	20	12	6	17	9	9.5	21.25	32
1418C6 Buy ›	20	16	6	17	13	10.0	21.25	38
1418D6 Buy ›	20	20	6	17	17	14.0	21.25	48
1418ER6 Buy ›	20	24	6	17	21	18.0	21.25	54
1418AR6 Buy ›	24	12	6	21	9	9.5	25.25	36
1418H6 Buy ›	24	16	6	21	13	10.0	25.25	46
1418E6 Buy ›	24	20	6	21	17	14.0	25.25	54
1418J6 Buy ›	24	24	6	21	21	18.0	25.25	62
1418FG6 Buy ›	30	16	6	27	13	10.0	31.25	56
1418F6 Buy ›	30	20	6	27	17	14.0	31.25	66
1418K6 Buy ›	30	24	6	27	21	18.0	31.25	76
1418L6 Buy ›	36	24	6	33	21	18.0	37.25	91
1418M6 Buy ›	36	30	6	33	27	24.0	37.25	114
1418A8 Buy ›	12	24	8	9	21	18.0	13.25	38
1418B8 Buy ›	16	12	8	13	9	9.5	17.25	28
1418G8 Buy ›	16	16	8	13	13	10.0	17.25	34
1418CR8 Buy ›	16	20	8	13	17	14.0	17.25	43
1418CA8 Buy ›	20	12	8	17	9	9.5	21.25	35
1418C8 Buy ›	20	16	8	17	13	10.0	21.25	40
1418D8 Buy ›	20	20	8	17	17	14.0	21.25	48
1418ER8 Buy ›	20	24	8	17	21	18.0	21.25	61
1418AR8 Buy ›	24	12	8	21	9	9.5	25.25	40
1418H8 Buy ›	24	16	8	21	13	10.0	25.25	50
1418E8 Buy ›	24	20	8	21	17	14.0	25.25	58
1418J8 Buy ›	24	24	8	21	21	18.0	25.25	68
1418KR8 Buy ›	24	30	8	21	27	24.0	25.25	82
1418KA8 Buy ›	30	12	8	27	9	9.5	31.25	50
1418KG8 Buy ›	30	16	8	27	13	10.0	31.25	60
1418F8 Buy ›	30	20	8	27	17	14.0	31.25	70
1418K8 Buy ›	30	24	8	27	21	18.0	31.25	82
1418KK8 Buy ›	30	30	8	27	27	24.0	31.25	102
1418MR8 Buy ›	30	36	8	27	33	30.0	31.25	124
1418L8 Buy ›	36	24	8	33	21	18.0	37.25	96
1418M8 Buy ›	36	30	8	33	27	24.0	37.25	120
1418LL8¹ Buy ›	36	36	8	33	33	30.0	37.25	142
1418N8 Buy ›	42	24	8	39	21	18.0	43.25	110
1418O8¹ Buy ›	42	30	8	39	27	24.0	43.25	132
1418P8¹ Buy ›	42	36	8	39	33	30.0	43.25	182
1418Q8 Buy ›	48	24	8	45	21	18.0	49.25	122
1418R8¹ Buy ›	48	30	8	45	27	24.0	49.25	173
1418S8¹ Buy ›	48	36	8	45	33	30.0	49.25	201
1418T8¹ Buy ›	60	36	8	57	33	30.0	61.25	246
1418B10 Buy ›	16	12	10	13	9	9.5	17.25	30
1418C10 Buy ›	20	16	10	17	13	10.0	21.25	44
1418D10 Buy ›	20	20	10	17	17	14.0	21.25	52
1418AR10 Buy ›	24	12	10	21	9	9.5	25.25	42
1418E10 Buy ›	24	20	10	21	17	14.0	25.25	64
1418J10 Buy ›	24	24	10	21	21	18.0	25.25	73
1418F10 Buy ›	30	20	10	27	17	14.0	31.25	76
1418K10 Buy ›	30	24	10	27	21	18.0	31.25	86
1418L10 Buy ›	36	24	10	33	21	18.0	37.25	105
1418M10 Buy ›	36	30	10	33	27	24.0	37.25	124
1418O10¹ Buy ›	42	30	10	39	27	24.0	43.25	140
1418P10¹ Buy ›	42	36	10	39	33	30.0	43.25	192
1418R10¹ Buy ›	48	30	10	45	27	24.0	49.25	162
1418S10¹ Buy ›	48	36	10	45	33	30.0	49.25	208
1418T10¹ Buy ›	60	36	10	57	33	30.0	61.25	258
1418C12 Buy ›	20	16	12	17	13	10.0	21.25	48
1418E12 Buy ›	24	20	12	21	17	14.0	25.25	68
1418J12 Buy ›	24	24	12	21	21	18.0	25.25	76
1418K12 Buy ›	30	24	12	27	21	18.0	31.25	90
1418KK12 Buy ›	30	30	12	27	27	24.0	31.25	114
1418L12 Buy ›	36	24	12	33	21	18.0	37.25	108
1418M12 Buy ›	36	30	12	33	27	24.0	37.25	132
1418LL12¹ Buy ›	36	36	12	33	33	30.0	37.25	156
1418O12¹ Buy ›	42	30	12	39	27	24.0	43.25	150
1418P12¹ Buy ›	42	36	12	39	33	30.0	43.25	198
1418S12¹ Buy ›	48	36	12	45	33	30.0	49.25	222
1418T12¹ Buy ›	60	36	12	57	33	30.0	61.25	264
1418U12¹ Buy ›	72	30	12	69	27	24.0	73.25	272
1418V12 Buy ›	72	36	12	69	33	30.0	73.25	312
1418E12 Buy ›	24	20	16	21	17	14.0	25.25	74
1418J16 Buy ›	24	24	16	21	21	18.0	25.25	86
1418K16 Buy ›	30	24	16	27	21	18.0	31.25	102
1418M16 Buy ›	36	30	16	33	27	24.0	37.25	140
1418P16¹ Buy ›	42	36	16	39	33	30.0	43.25	214
1418S16¹ Buy ›	48	36	16	45	33	30.0	49.25	238
1418T16¹ Buy ›	60	36	16	57	33	30.0	61.25	290
1418U16¹ Buy ›	72	30	16	69	27	24.0	73.25	290
1418K20 Buy ›	30	24	20	27	21	18.0	31.25	112
1418M20 Buy ›	36	30	20	33	27	24.0	37.25	152
1418S20¹ Buy ›	48	36	20	45	33	30.0	49.25	256
1418T20¹ Buy ›	60	36	20	57	33	30.0	61.25	300
1418U20¹ Buy ›	72	30	20	69	27	24.0	73.25	308
1418K24 Buy ›	30	24	24	27	21	18.0	31.25	142
1418U24¹ Buy ›	72	30	24	69	27	24.0	73.25	332
¹ Does not meet JIC requirements ² Flat Panel

When A=	M=
30	7.00
36	9.00
42	9.88
48	11.38
60	14.38
72	17.38
