1418J Series - NEMA 12

Hammond p016 1418JDownload PDFDownload LinksHammond inr pnl incldedUL ListedCE Marked

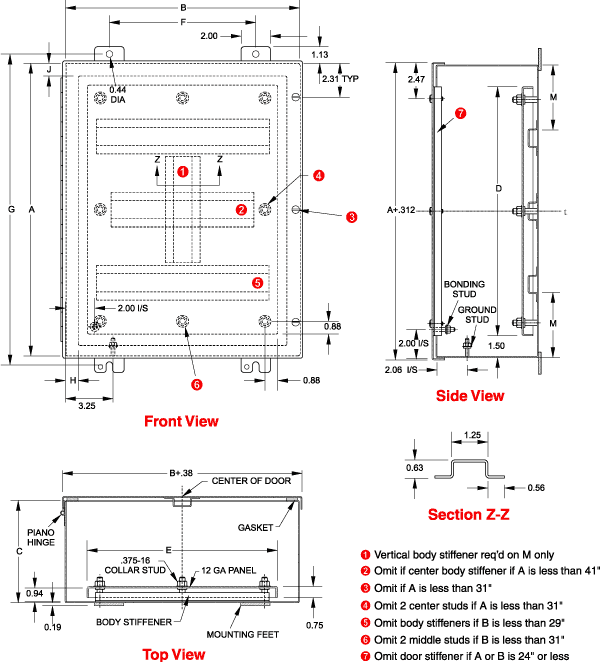

Hammond p016 1418j
Part No. A B C Panel Dimensions Centers H J Ship Wt.
(lbs)
D E F G
1418JB7 Buy › 16 12 7 13 9 6 17.25 0.88 0.50 30
1418JC7 Buy › 20 16 7 17 13 10 21.25 0.88 0.88 38
1418JD7 Buy › 20 20 7 17 17 14 21.25 0.88 0.50 45
1418JE7 Buy › 24 20 7 21 17 14 25.25 0.88 0.50 54
1418JJ7 Buy › 24 24 7 21 21 18 25.25 0.88 0.50 63
1418JF7 Buy › 30 20 7 27 17 14 31.25 0.88 0.50 70
1418JK7 Buy › 30 24 7 27 21 18 31.25 0.88 0.50 78
1418JL7 Buy › 36 24 7 33 21 18 37.25 0.88 0.50 90
1418JC9 Buy › 20 16 9 17 13 10 21.25 0.88 0.50 42
1418JD9 Buy › 20 20 9 17 17 14 21.25 0.88 0.50 45
1418JE9 Buy › 24 20 9 21 17 14 25.25 0.88 0.50 60
1418JJ9 Buy › 24 24 9 21 21 18 25.25 0.88 0.50 67
1418JK9 Buy › 30 24 9 27 21 18 31.25 0.88 0.50 85
1418JF9 Buy › 30 20 9 27 17 14 31.25 0.88 0.50 70
1418JM9 Buy › 36 30 9 33 27 24 37.25 1.38 1.38 120
1418JL9 Buy › 36 24 9 33 21 18 37.25 0.88 0.50 100
1418JO9¹ Buy › 42 30 9 39 27 24 43.25 1.38 1.38 137
1418JP9¹ Buy › 42 36 9 39 33 30 43.25 1.38 1.38 165
1418JJ11 Buy › 24 24 11 21 21 18 25.25 0.88 0.50 73
1418JL11 Buy › 36 24 11 33 21 18 37.25 0.88 0.50 107
1418JS11¹ Buy › 48 36 11 45 33 30 49.25 1.38 1.38 187
1418JK13 Buy › 30 24 13 27 21 18 31.25 0.88 0.50 94
1418JM13 Buy › 36 30 13 33 27 24 37.25 1.38 1.38 131
¹ Does not meet JIC requirements
When A= M=
30 7.00
36 9.00
42 9.88
48 11.38
