Polyester Modular Enclosures - NEMA 4X
PJ Series - Raised Lid Snap Latch Hinged Cover, Solid and Window Door
Application
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
Standards
- UL 508 Type 1, 2, 3, 4, 4X, 12 and 13
- CSA Type 1, 2, 3, 4, 4X, 12 and 13
- Complies with
- NEMA Type 1, 2, 3, 4, 4X, 12, & 13
- IEC 60529, IP66
Construction
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Enhanced UV inhibitors protect against outdoor weathering.
- Standard JIC sizes under 18"x16".
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
- Stainless steel draw type "snap latch" door fasteners.
- Door fasteners include a provision for padlocking.
- Enclosures are available with bonded polycarbonate viewing windows.
- Door is supported with a continuous stainless steel hinge.
- Captive oil resistant gasket provides a positive seal.
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
- Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
Finish
- Fiberglass polyester material has a gray finish.
- Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or fiberglass.
Accessories
| Solid Cover Part No. |
Window Cover Part No. |

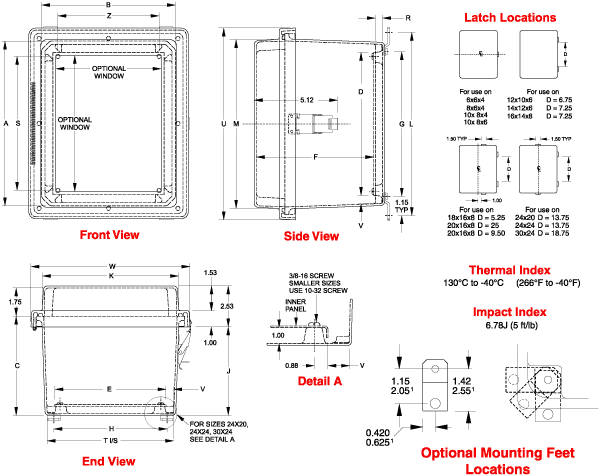

Overall Dimensions | Panel Size | Center | |||||||
| A | B | C | D | E | G | H | J | S | Z | ||
| PJ664RL | PJ664RLW | 6.10 | 6.10 | 4.18 | 4.88 | 4.88 | 5.01 | 5.01 | 3.52 | 4.25 | 4.25 |
| PJ864RL | PJ864RLW | 8.00 | 6.12 | 4.13 | 6.75 | 4.88 | 6.89 | 5.01 | 3.47 | 6.25 | 4.25 |
| PJ1084RL | PJ1084RLW | 10.13 | 8.26 | 4.13 | 8.75 | 6.88 | 8.89 | 7.01 | 3.47 | 8.25 | 6.25 |
| PJ1086RL | PJ1086RLW | 10.13 | 8.26 | 6.13 | 8.75 | 6.88 | 8.89 | 7.01 | 5.47 | 8.25 | 6.25 |
| PJ12106RL | PJ12106RLW | 12.13 | 10.26 | 6.13 | 10.75 | 8.88 | 10.89 | 9.01 | 5.47 | 10.25 | 8.25 |
| PJ14126RL | PJ14126RLW | 14.13 | 12.26 | 6.13 | 12.75 | 10.88 | 12.89 | 11.01 | 5.47 | 12.25 | 10.25 |
| PJ16148RL | PJ16148RLW | 16.27 | 14.40 | 8.13 | 14.75 | 12.88 | 14.89 | 13.01 | 7.47 | 14.25 | 12.25 |
| PJ18168RL | PJ18168RLW | 18.40 | 16.40 | 8.13 | 16.88 | 14.88 | 16.97 | 14.97 | 7.47 | 16.25 | 14.25 |
| PJ20168RL | PJ20168RLW | 20.00 | 16.00 | 8.13 | 18.44 | 14.44 | 18.54 | 14.54 | 7.47 | 17.81 | 13.81 |
| PJ24208RL | PJ24208RLW | 24.00 | 20.00 | 8.13 | 21.00 | 17.00 | 22.75 | 18.75 | 7.47 | 19.25 | 15.25 |
| PJ24248RL¹ | PJ24248RLW¹ | 24.00 | 24.00 | 8.13 | 21.00 | 21.00 | 22.75 | 22.75 | 7.47 | 19.25 | 19.25 |
| PJ30248RL¹ | PJ30248RLW¹ | 30.00 | 24.00 | 8.13 | 27.00 | 21.00 | 28.75 | 22.75 | 7.47 | 25.25 | 19.25 |
| PJ242010RL¹ | PJ242010RLW¹ | 24.00 | 20.00 | 10.13 | 21.00 | 17.00 | 22.75 | 18.75 | 9.47 | 19.25 | 15.25 |
| PJ242410RL¹ | PJ242410RLW¹ | 24.00 | 24.00 | 10.13 | 21.00 | 21.00 | 22.75 | 22.75 | 9.47 | 19.25 | 19.25 |
| PJ302410RL¹ | PJ302410RLW¹ | 30.00 | 24.00 | 10.13 | 27.00 | 21.00 | 28.75 | 22.75 | 9.47 | 25.25 | 19.25 |
| ¹ Uses larger mounting foot. | |||||||||||
| Solid Cover Part No. |
Window Cover Part No. |
Cover Dimensions |
Optional Panel Part No. |
Window Dim. HxW |
|||||||
| L | T | K | M | U | W | R | V | ||||
| PJ664RL | PJ664RLW | 7.32 | 5.83 | 6.08 | 6.08 | 7.7 | 7.69 | 0.44 | 0.49 | 14R0505 | 4.25 x 4.25 |
| PJ864RL | PJ864RLW | 9.19 | 5.85 | 6.11 | 7.98 | 9.6 | 7.71 | 0.44 | 0.50 | 14R0705 | 6.25 x 4.25 |
| PJ1084RL | PJ1084RLW | 11.19 | 7.85 | 8.44 | 10.32 | 11.8 | 9.90 | 0.44 | 0.50 | 14R0907 | 8.37 x 6.5 |
| PJ1086RL | PJ1086RLW | 11.19 | 7.85 | 8.44 | 10.32 | 11.8 | 9 | 0.44 | 0.50 | 14R0907 | 8.37 x 6.5 |
| PJ12106RL | PJ12106RLW | 13.19 | 9.85 | 10.45 | 12.32 | 13.8 | 11.90 | 0.44 | 0.50 | 14R1109 | 10.37 x 8.5 |
| PJ14126RL | PJ14126RLW | 15.19 | 11.85 | 12.45 | 14.32 | 15.7 | 13.85 | 0.44 | 0.50 | 14R1311 | 12.37 x 10.5 |
| PJ16148RL | PJ16148RLW | 17.19 | 13.71 | 13.86 | 15.73 | 17.9 | 15.99 | 0.44 | 0.50 | 14R1513 | 13.0 x 11.0 |
| PJ18168RL | PJ18168RLW | 19.28 | 15.72 | 15.86 | 17.86 | 20.0 | 18.00 | 0.44 | 0.50 | P1868 | 14.0 x 12.0 |
| PJ20168RL | PJ20168RLW | 20.84 | 15.31 | 15.43 | 19.43 | 21.6 | 17.59 | 0.44 | 0.52 | P2068 | 15.0 x 11.0 |
| PJ24208RL | PJ24208RLW | 25.06 | 19.73 | 20.16 | 24.16 | 25.6 | 21.59 | 1.00 | 1.38 | 18P2117 | 16.0 x 12.0 |
| PJ24248RL¹ | PJ24248RLW¹ | 25.06 | 23.73 | 24.16 | 24.16 | 25.6 | 25.59 | 1.00 | 1.38 | 18P2121 | 16.0 x 16.0 |
| PJ30248RL¹ | PJ30248RLW¹ | 31.06 | 23.73 | 24.16 | 30.16 | 31.6 | 25.59 | 1.00 | 1.38 | 18P2721 | 23.0 x 17.0 |
| PJ242010RL¹ | PJ242010RLW¹ | 25.06 | 19.70 | 20.16 | 24.16 | 25.6 | 21.59 | 1.00 | 1.36 | 18P2117 | 16.0 x 12.0 |
| PJ242410RL¹ | PJ242410RLW¹ | 25.06 | 23.70 | 24.16 | 24.16 | 25.6 | 25.59 | 1.00 | 1.36 | 18P2121 | 16.0 x 16.0 |
| PJ302410RL¹ | PJ302410RLW¹ | 31.06 | 23.70 | 24.16 | 30.16 | 31.6 | 25.59 | 1.00 | 1.36 | 18P2721 | 23.0 x 17.0 |
| ¹ Uses larger mounting foot. | |||||||||||
