Polyester Modular Enclosures - NEMA 4X
PJU Series - Hinged Screw Cover, Solid and Window Door
Application
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
Standards
- UL 508 Type 1, 2, 3, 4, 4X, 12 and 13
- CSA Type 1, 2, 3, 4, 4X, 12 and 13
- Complies with
- NEMA Type 1, 2, 3, 4, 4X, 12 and 13
- IEC 60529, IP66
Construction
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Enhanced UV inhibitors protect against outdoor weathering.
- Standard JIC sizes under 18" x 16".
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
- Cover fastened with captive stainless steel screws in threaded brass inserts.
- Enclosure available with clear Polycarbonate cover to 16" x 20".
- Molded hinge with stainless steel pin.
- Captive oil resistant gasket provides a positive seal.
- Available with Polycarbonate flange or foot mount brackets for multi-directional mounting.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
Finish
- Fiberglass polyester material has a gray finish.
- Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.
Accessories
| Hinged Screw Cover Flange Part No. |
Hinged Screw Cover Feet Part No. |

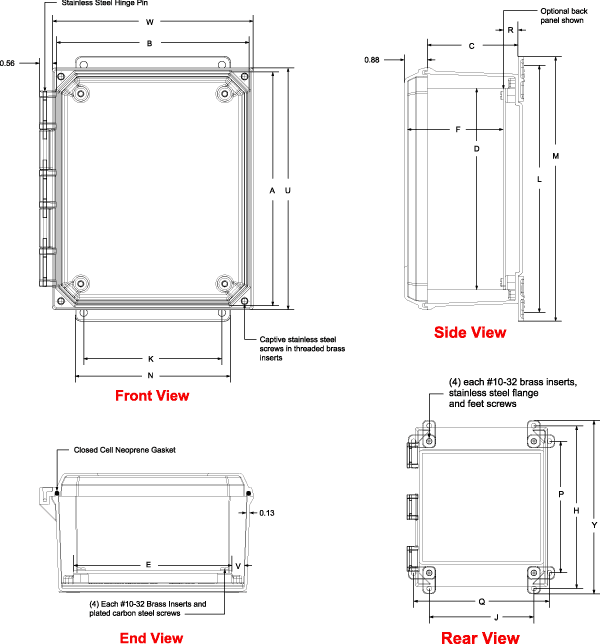

Overall Dimensions | Panel Size | Center | Flange Mounting Centers | |||||||
| A | B | C | D | E | F | S | Z | L | K | M | ||
| PJU664HF | PJU664H | 6.05 | 6.27 | 4.13 | 4.88 | 4.88 | 4.11 | 4.25 | 4.25 | 6.88 / 6.75 | 4.05 | 7.62 |
| PJU864HF | PJU864H | 8.05 | 6.27 | 4.13 | 6.75 | 4.88 | 4.11 | 6.25 | 4.25 | 8.88 / 8.75 | 4.00 | 9.62 |
| PJU1084HF | PJU1084H | 10.05 | 8.27 | 4.13 | 8.75 | 6.88 | 4.11 | 10.25 | 6.25 | 10.75 | 6.00 | 11.50 |
| PJU12106HF | PJU12106H | 12.05 | 10.27 | 6.13 | 10.75 | 8.88 | 6.11 | 10.25 | 8.25 | 12.75 | 8.00 | 13.50 |
| PJU14126HF | PJU14126H | 14.05 | 12.27 | 6.13 | 12.75 | 10.88 | 6.11 | 12.25 | 10.25 | 14.75 / 14.62 | 10.00 | 15.37 |
| PJU16148HF | PJU16148H | 16.05 | 14.27 | 8.13 | 14.75 | 12.88 | 8.11 | 14.25 | 12.25 | 16.75 | 12.00 | 17.50 |
| PJU181610HF | PJU181610H | 18.30 | 16.52 | 10.13 | 16.88 | 14.88 | 10.11 | 16.25 | 14.25 | 18.88 / 18.76 | 12.00 | 20.12 |
| PJU201610HF | PJU201610H | 20.50 | 16.27 | 10.13 | 18.44 | 14.44 | 10.11 | 17.81 | 13.81 | 21.25 | 10.00 | 21.50 |
| Hinged Screw Clear Cover Flange Part No. |
Hinged Screw Clear Cover Feet Part No. |
Optional Panel Part No. |
Ship Wt. (lbs) |
||||||||||
| N | H | J | P | Q | U | W | Y | R | V | ||||
| PJU664CCHF | PJU664CCH | 4.80 | 6.75 | 4.91 | 4.69 | 6.97 | 6.50 | 6.72 | 7.47 | 0.70 | 0.52 | 14R0505 | 4 |
| PJU864CCHF | PJU864CCH | 4.75 | 8.75 | 4.91 | 6.69 | 6.97 | 8.50 | 6.72 | 9.46 | 0.70 | 0.62 | 14R0705 | 4 |
| PJU1084CCHF | PJU1084CCH | 6.75 | 10.75 | 6.91 | 8.69 | 8.97 | 10.50 | 8.72 | 11.47 | 0.70 | 0.53 | 14R0907 | 6 |
| PJU12106CCHF | PJU12106CCH | 8.75 | 12.70 | 8.82 | 10.64 | 10.88 | 12.50 | 10.72 | 13.47 | 0.68 | 0.44 | 14R1109 | 6 |
| PJU14126CCHF | PJU14126CCH | 10.75 | 14.70 | 10.82 | 12.64 | 12.88 | 14.50 | 12.72 | 15.37 | 0.70 | 0.46 | 14R1311 | 8 |
| PJU16148CCHF | PJU16148CCH | 12.75 | 16.91 | 11.47 | 13.50 | 14.88 | 16.50 | 14.72 | 17.50 | 0.70 | 0.40 | 14R1513 | 11 |
| N/A | N/A | 12.75 | 19.16 | 13.72 | 15.75 | 17.13 | 18.75 | 16.97 | 19.89 | 0.70 | 0.45 | P1868 | 12 |
| N/A | N/A | 12.75 | 20.53 | 13.16 | 17.13 | 16.56 | 20.50 | 16.72 | 21.28 | 0.70 | 0.50 | P2068 | 17 |
