1420 Series Panel Enclosures
Non-Ventilated - NEMA 1
Application
- Designed for indoor use to house controls, instruments and components which do not require oil-tight or dust-tight protection.
Standards
- UL 508 Type 1 on models marked¹
- CSA Type 1
- Complies with
- NEMA Type 1
- IEC 60529, IP20
Construction
- Enclosure is formed and spot welded from 14 gauge steel.
- Removable 12 gauge inner panel is mounted to the rear of the enclosure on collar studs.
- Removable door is attached with slip hinges.
- To remove door, a tool is required to remove the #8 screw which captivates hinge.
- Door is fastened with a slotted 1/4 turn latch; doors 30” and higher are provided with two latches.
- A bonding stud is provided on the door and a grounding stud is provided in the box.
Finish
- Enclosure and door are finished in ANSI 61 gray powder coating.
- Inner panel is finished in white powder coating.
Accessories

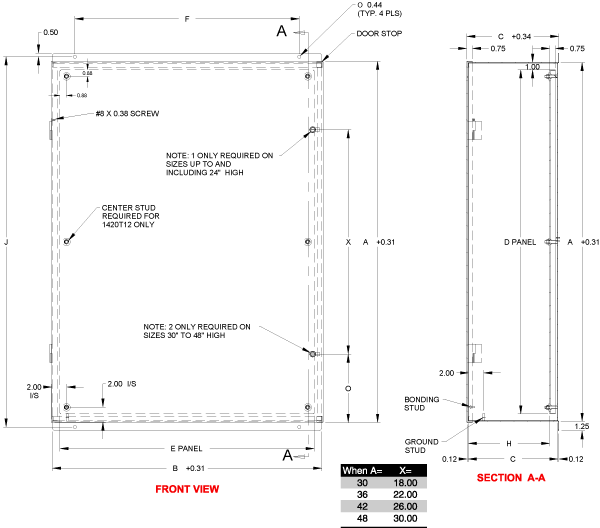

| Part No. | Mounting Centers | Panel Size | Ship Wt. lbs |
|||||||
| A | B | C | J | F | D | E | H | O | ||
| 1420B7¹,² | 16 | 12 | 7 | 17.5 | 9.5 | 14 | 10 | 5.88 | - | 26 |
| 1420C7¹,² | 20 | 16 | 7 | 21.5 | 10.0 | 18 | 14 | 5.88 | - | 39 |
| 1420D7¹,² | 20 | 20 | 7 | 21.5 | 14.0 | 18 | 18 | 5.88 | - | 48 |
| 1420E7¹ Buy › | 24 | 20 | 7 | 25.5 | 14.0 | 22 | 18 | 5.88 | - | 53 |
| 1420F7¹ Buy › | 30 | 20 | 7 | 31.5 | 14.0 | 28 | 18 | 5.88 | 6.16 | 67 |
| 1420G7¹ Buy › | 30 | 24 | 7 | 31.5 | 18.0 | 28 | 22 | 5.88 | 6.16 | 79 |
| 1420H7¹ Buy › | 36 | 24 | 7 | 37.5 | 18.0 | 34 | 22 | 5.88 | 7.16 | 90 |
| 1420E9¹ Buy › | 24 | 20 | 9 | 25.5 | 14.0 | 22 | 18 | 7.88 | - | 60 |
| 1420EM9¹ Buy › | 24 | 24 | 9 | 25.5 | 18.0 | 22 | 22 | 7.88 | - | 71 |
| 1420G9¹ Buy › | 30 | 24 | 9 | 31.5 | 18.0 | 28 | 22 | 7.88 | 6.16 | 84 |
| 1420H9¹ Buy › | 36 | 24 | 9 | 37.5 | 18.0 | 34 | 22 | 7.88 | 7.16 | 98 |
| 1420P9 Buy › | 36 | 30 | 9 | 37.5 | 24.0 | 34 | 28 | 7.88 | 7.16 | 118 |
| 1420Q9¹ Buy › | 42 | 24 | 9 | 43.5 | 18.0 | 40 | 22 | 7.88 | 8.16 | 111 |
| 1420G12¹ Buy › | 30 | 24 | 12 | 31.5 | 18.0 | 28 | 22 | 10.88 | 6.16 | 92 |
| 1420P12 Buy › | 36 | 30 | 12 | 37.5 | 24.0 | 34 | 28 | 10.88 | 7.16 | 128 |
| 1420R12 Buy › | 42 | 30 | 12 | 43.5 | 24.0 | 40 | 28 | 10.88 | 8.16 | 142 |
| 1420S12 Buy › | 42 | 36 | 12 | 43.5 | 30.0 | 40 | 34 | 10.88 | 8.16 | 156 |
| 1420T12 Buy › | 48 | 36 | 12 | 49.5 | 30.0 | 46 | 34 | 10.88 | 9.16 | 214 |
| 1420G16¹ Buy › | 30 | 24 | 16 | 31.5 | 18.0 | 28 | 22 | 14.88 | 6.16 | 105 |
| 1420P16 Buy › | 36 | 30 | 16 | 37.5 | 24.0 | 34 | 28 | 14.88 | 7.16 | 144 |
| ¹ UL Listed ² Flat Panel |
||||||||||
