Pushbutton Enclosures - NEMA 12, 13
1490/1490M Sloped Front Consolet Series
Application
- Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- Ideal for wall or surface mounting to provide the necessary control slope.
- Provides protection from dirt, dust, oil and water.
Standards
- UL 508 Type 12 and 13
- CSA Type 12 and 13
- JIC standard EGP-1-1967
- Complies with
- NEMA Type 12 and 13
- IEC 60529, IP54
- Appropriate components are required to maintain these standards.
Construction
- Formed 14 gauge steel.
- Smooth continuously welded seams.
- Construction provides either a 30° or 60° slope on front cover depending on mounting position.
- Welded brackets provide for enclosure mounting.
- Captive cover screws thread into sealed wells.
- Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring (as noted in table).
- Oil resistant gasket and adhesive.
- A grounding stud is provided in the enclosure.
Finish
- Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.
Accessories

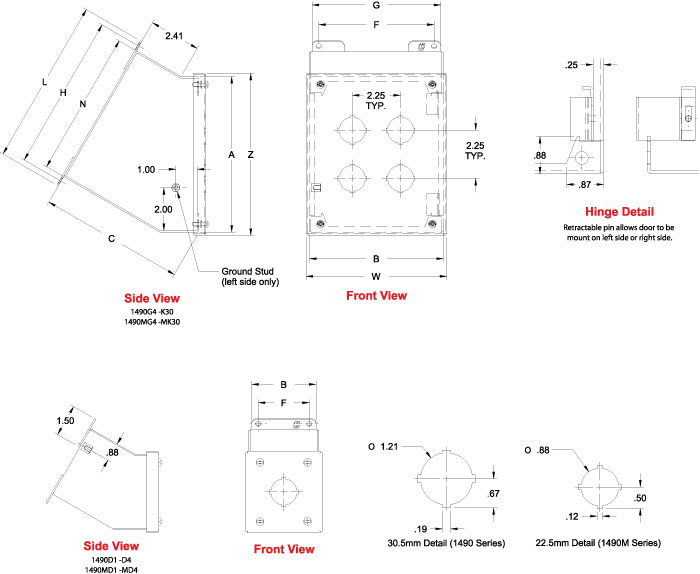

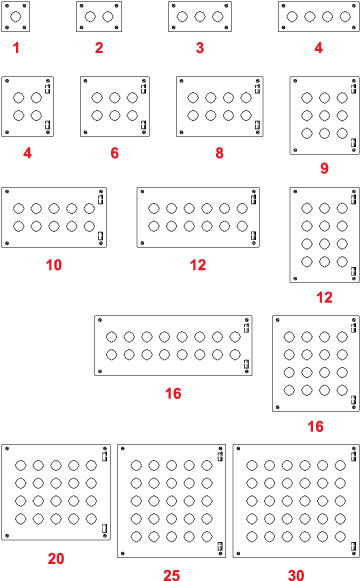

| Part No. | No. Of Holes |
Ship Wt. lbs. |
|||||||||||
| 30.5mm Holes | 22.5mm Holes | A | B | C | F | G | H | L | N | W | Z | ||
| 1490D1¹ | 1490MD1¹ | 1 | 3.50 | 3.25 | 4.88 | 2.38 | 3.00 | 4.03 | 4.53 | 3.53 | 3.56 | 3.81 | 2 |
| 1490D2¹ | 1490MD2¹ | 2 | 3.50 | 5.50 | 4.88 | 4.63 | 5.25 | 1.03 | 4.53 | 3.53 | 5.81 | 3.81 | 3 |
| 1490D3¹ | 1490MD3¹ | 3 | 3.50 | 7.75 | 4.88 | 6.88 | 7.50 | 4.03 | 4.53 | 3.53 | 8.06 | 3.81 | 5 |
| 1490D4¹ | 1490MD4¹ | 4 | 3.50 | 10.00 | 4.88 | 9.13 | 8.75 | 4.03 | 4.53 | 3.53 | 10.31 | 3.81 | 6 |
| 1490G4 | 1490MG4 | 4 | 7.25 | 6.25 | 6.75 | 5.38 | 6.00 | 7.28 | 7.78 | 6.78 | 6.56 | 7.56 | 6 |
| 1490G6 | 1490MG6 | 6 | 7.25 | 8.50 | 6.75 | 7.63 | 8.25 | 7.28 | 7.78 | 6.78 | 8.81 | 7.56 | 7 |
| 1490G8 | 1490MG8 | 8 | 7.25 | 10.75 | 6.75 | 9.88 | 10.50 | 7.28 | 7.78 | 6.78 | 11.06 | 7.56 | 9 |
| 1490H9 | 1490MH9 | 9 | 9.50 | 8.50 | 7.88 | 7.63 | 8.25 | 9.25 | 9.75 | 8.75 | 8.81 | 9.81 | 9 |
| 1490G10 | 1490MG10 | 10 | 7.25 | 13.00 | 6.75 | 12.13 | 12.75 | 7.28 | 7.78 | 6.78 | 13.31 | 7.56 | 10 |
| 1490G12 | 1490MG12 | 12 | 7.25 | 15.25 | 6.75 | 14.38 | 15.00 | 7.28 | 7.78 | 6.78 | 15.56 | 7.56 | 11 |
| 1490J12 | 1490MJ12 | 12 | 11.75 | 8.50 | 9.00 | 7.63 | 8.25 | 11.19 | 11.69 | 10.69 | 8.81 | 12.06 | 13 |
| 1490G16 | 1490MG16 | 16 | 7.25 | 19.75 | 6.75 | 18.88 | 19.50 | 7.28 | 7.78 | 6.78 | 20.06 | 7.56 | 14 |
| 1490J16 | 1490MJ16 | 16 | 11.75 | 10.75 | 9.00 | 9.88 | 10.50 | 11.19 | 11.69 | 10.69 | 11.06 | 12.06 | 14 |
| 1490J20 | 1490MJ20 | 20 | 11.75 | 13.00 | 9.00 | 12.13 | 12.75 | 11.19 | 11.69 | 10.69 | 13.31 | 12.06 | 16 |
| 1490K25 | 1490MK25 | 25 | 14.00 | 13.00 | 10.13 | 12.13 | 12.75 | 13.13 | 13.63 | 12.63 | 13.31 | 14.31 | 17 |
| 1490K30 | 1490MK30 | 30 | 14.00 | 15.25 | 10.13 | 14.38 | 15.00 | 13.13 | 13.63 | 12.63 | 15.56 | 14.31 | 19 |
| ¹ Not Hinged | |||||||||||||
