Application

• Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
• Heavy-duty construction provides protection from dirt, dust, oil and water.

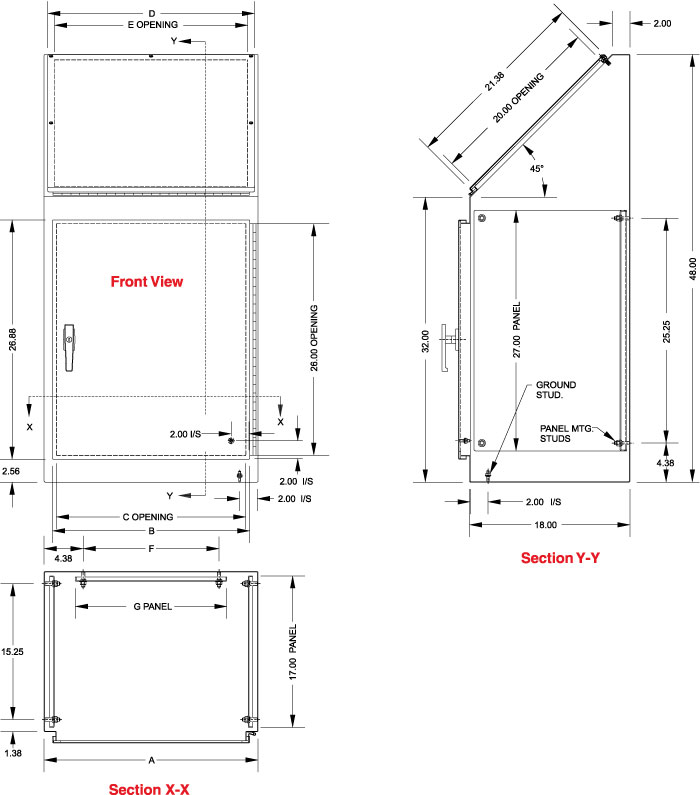

• Sloping front control panel provides an ideal surface for mounting operator controls or instrumentation.
• Interior mounting provision on removable inner panels located on the rear and sides of the enclosure.


Standards

• UL 508 Type 12 as marked¹
• CSA Type 12
• Complies with
  • NEMA Type 12
  • IEC 60529, IP54

Construction

• Formed 14 gauge steel.
• Smooth, continuously welded seams, without knockouts, cutouts or holes.
• Sloped front instrument panel is continuously hinged on the front (bottom) edge and secured with captive panel screws, threaded into sealed wells.
• Continuously hinged door and front instrument panel may be removed by pulling the hinge pin.
• Doors are secured with a three point latch and operated with a key locking automotive type handle.
• Oil resistant gaskets are permanently secured and mechanically retained.
• Includes three removable inner panels formed from 12 gauge steel, mounted to the back and sides of the enclosure interior.
• Collar studs are provided for mounting inner panels.
• A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
• A literature pocket is provided for the inside of the door.


Finish

• Cover and enclosure are phosphat­­ized and finished in ANSI 61 gray powder coating on the outside and on the inside.
• Removable inner panels are finished in white powder coating.

Accessories

• Air conditioners
• Casters
• Door stop kit
• Heaters
• Lock kit
• Louvered ventilating plates
• Window kits
