Modular Freestanding Enclosures - NEMA 12

HFMD/HFMDT Series Enclosure

Application

The HFMD 1 door and HFMDT 2 door product lines provides users with a rugged housing for flange mount disconnect and circuit breaker requirements.
Modular design permits joining of units together for large scale and mixed use applications.
Frame's 25mm hole pattern provides extensive component and accessory mounting flexibility.
A broad range of industry standard sizes are offered.
HME/HMET Series enclosures can be used as slave units to HFMD/HFMDT Disconnect Series.
The flange mount disconnect units accommodate today's most popular disconnect hardware.
ABB Controls: Disconnect Switches up to (and including) 200 amp, also operators for ABB circuit breakers up to 800 amp.
Allen Bradley: 1494V variable depth flange mounted disconnect up to and including 200 amp and operators for C-H Westinghouse circuit breakers up to 400 amp.
C-H Westinghouse: C361 flange mounted disconnect switches up to and including 200 amp and C371 circuit breakers up to 600 amp, also Flex Shaft handle mechanisms for circuit breakers.
General Electric: Type STDA flange mounted variable depth flange operators for disconnect switches up to and including 200 amp and circuit breakers up to 600 amp or Spectra Flex™ cable operators for circuit breakers.
ITE Siemens Max-Flex: flange mounted variable depth cable operators for disconnect switches up to 200 amp and circuit breakers up to 600 amp.
Square D: class 9422 variable depth flange mounted operating mechanisms for disconnect switches up to and including 200 amp or cable mechanism for 30, 60 or 100 amp, also circuit breakers with variable depth operators or cable mechanism up to 400 amp.

Standards

UL 508 Type 12
CSA Type 12
Complies with
- NEMA Type 12
- IEC 60529 IP54
Appropriate components are required to maintain these standards.

Standard Configuration

Frame
Removable solid top panel
Lifting eyebolts (4)
Solid front door(s) with door frame(s).
Two overlapping solid front doors with door frames
Removable rear cover panel(s) – two door version with removable center post
Inner mounting panel
Disconnect to door handle activation hardware
Hinged flange door

Construction

Formed 14 gauge steel.
Fully welded frame with 25mm hole pattern for superior mounting flexibility.
Seamless foam in place gasket.
Reinforced eyebolts are provided for easy enclosure lifting.
Frames can be joined together with an optional joining kit.
Doors can be easily interchanged, removed and/or reversed.
Door opening 135°.
Optional formed 14 gauge steel side panels are sold separately (in pairs).
Bonding and grounding studs are provided for all doors and panels.

Finish

Phosphatized and finished in RAL 7035 light gray powder coating.
Inner panel is unpainted galvanized 12 gauge steel.

Accessories

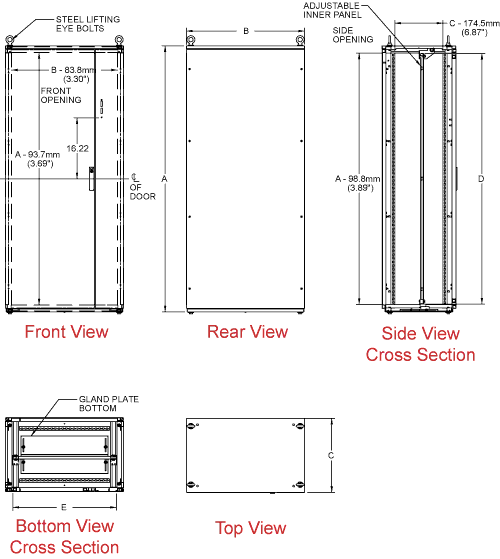

Part No.		Overall Dimensions (in/mm)			Panel Dimensions		Door Style
Part No.		A	B	C	Height	Width	Single	Double
HFMD1485	inch	55.12	31.5	19.69	51.03	27.52	•
HFMD1485	mm	1400	800	500	1296	699	•
HFMD14105	inch	55.12	39.37	19.69	51.03	35.4	•
HFMD14105	mm	1400	1000	500	1296	899	•
HFMD1685	inch	62.99	31.5	19.69	58.9	27.52	•
HFMD1685	mm	1600	800	500	1496	699	•
HFMD1686	inch	62.99	31.5	23.62	58.9	27.52	•
HFMD1686	mm	1600	800	600	1496	699	•
HFMD1884	inch	70.87	31.5	15.75	66.77	27.52	•
HFMD1884	mm	1800	800	400	1696	699	•
HFMD1885	inch	70.87	31.5	31.5	66.77	27.52	•
HFMD1885	mm	1800	800	500	1696	699	•
HFMD18105	inch	70.87	39.37	19.69	66.77	35.4	•
HFMD18105	mm	1800	1000	500	1696	899	•
HFMD2085	inch	78.74	31.5	19.69	74.65	27.52	•
HFMD2085	mm	2000	800	500	1896	699	•
HFMD2086	inch	78.74	31.5	23.62	74.65	27.52	•
HFMD2086	mm	2000	800	600	1896	699	•
HFMD2088	inch	78.74	31.5	31.5	74.65	27.52	•
HFMD2088	mm	2000	800	800	1896	699	•
HFMD20105	inch	78.74	39.37	19.69	74.65	35.4	•
HFMD20105	mm	2000	1000	500	1896	899	•
HFMD20106	inch	78.74	39.37	23.62	74.65	35.4	•
HFMD20106	mm	2000	1000	600	1896	899	•
HFMD2286	inch	86.62	31.5	23.62	82.52	27.52	•
HFMD2286	mm	2200	800	600	2096	699	•
HFMD22105	inch	86.61	39.37	19.69	82.52	35.39	•
HFMD22105	mm	2200	1000	500	2096	899	•
HFMDT18164	inch	70.87	62.99	15.75	66.77	59.02		•
HFMDT18164	mm	1800	1600	400	1696	1499		•
HFMDT18165	inch	70.87	62.99	19.69	66.77	59.02		•
HFMDT18165	mm	1800	1600	500	1696	1499		•
HFMDT18184	inch	70.87	70.87	15.75	66.77	66.89		•
HFMDT18184	mm	1800	1800	400	1696	1699		•
HFMDT18185	inch	70.87	70.87	19.69	66.77	66.89		•
HFMDT18185	mm	1800	1800	500	1696	1699		•
HFMDT18186	inch	70.87	70.87	23.62	66.77	66.89		•
HFMDT18186	mm	1800	1800	600	1696	1699		•
HFMDT20165	inch	78.74	62.99	19.69	74.65	59.02		•
HFMDT20165	mm	2000	1600	500	1896	1499		•
HFMDT20166	inch	78.74	62.99	23.62	78.58	59.02		•
HFMDT20166	mm	2000	1600	600	1996	1499		•
HFMDT20168	inch	78.74	62.99	31.50	74.65	59.02		•
HFMDT20168	mm	2000	1600	800	1896	1499		•
HFMDT20185	inch	78.74	70.87	19.69	74.65	66.89		•
HFMDT20185	mm	2000	1800	500	1896	1699		•
