Open Frame Knockdown Steel Racks
DNRR "DCK" Series
Features
- Suitable for many 19” rack mount applications, providing complete access to equipment
- Easy to assemble
- Knockdown rack is shipped in a flat pack container for easy handling and shipping protection

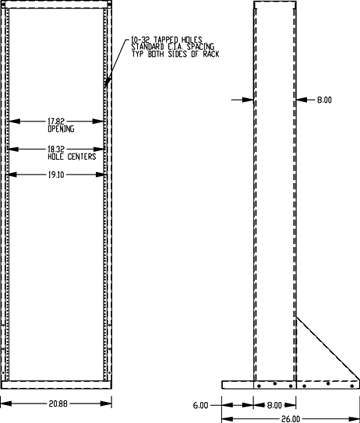

- 12-gauge steel base & 14 gauge steel upright deep channel (8” deep)
- Front & rear flange is drilled and tapped (10-32) universal EIA (5/8 - 5/8 - 1/2 inch) spacing
- For use as a single, free standing unit for sturdy support of standard 19” rack mount devices
- Recommended maximum weight (DNRR1977DCK tested) - 1,200 pounds
- Engineered for use as a solid, single, freestanding unit
- Base is punched to accept four casters (Part nos. 1425B, 1425BM or 1425BH)
- Finished in rugged black powder paint
| Part No. | Panel Height | Overall Dimensions (in.) | |||
| Inches | Units | Width | Height | ||
| DNRR1942DCK Buy › | 42 | 24 | 20.88 | 45.13 | |
| DNRR1970DCK Buy › | 70 | 40 | 20.88 | 73.13 | |
| DNRR1977DCK Buy › | 77 | 44 | 20.88 | 80.13 | |
