Application

• Ideal as a housing for video screens.
• Flexible design provides panel mount or rack mount capabilities for a variety of applications.
• Generally used in combination with other modular console components (ie. base, pedestal, and/or desk).

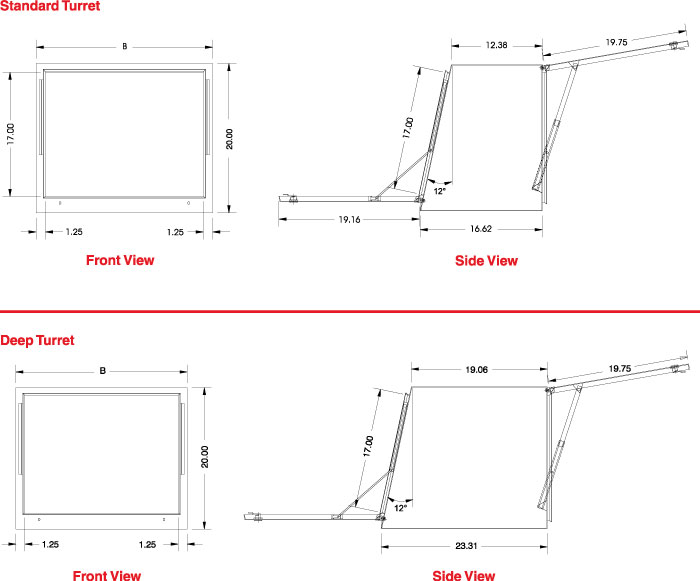

• Available in either Standard (supported by Base, Pedestal, or Standard Desk) or Deep (supported by Deep Desk only) format.
• Smooth lines and clean edges provide an attractive, contemporary appearance.


Standards

ANSI 61 Gray

• UL 508 Type 3R, 4,12
• CSA Type 3R, 4, 12, 13
• EIA RS-310-D
• Complies with
  • NEMA Type 3R, 4, 12
  • IEC 60529, IP66

Stainless Steel (Type 304)

• UL 508 Type 3R, 4, 4X, 12
• CSA Type 3R, 4, 4X, 12
• EIA RS-310-D
• Complies with
  • NEMA Type 3R, 4, 4X, 12
  • IEC 60529, IP66

Construction

• Formed 14 gauge steel bodies with 14 gauge steel doors.
  Also offered with formed 14 gauge 304 stainless steel bodies with 14 gauge 304 stainless steel doors.
• Smooth, continuously welded seams without knockouts or holes.
• Body stiffeners are provided where required for increased strength and rigidity.
• Offered in 4 widths 24", 36", 48" and 60".
• Features solid sides and top, solid door on front (opens down) and back (opens up), and open bottom.
• Front door features sliding rod mechanism, which allows a 102º opening when in the lowered position.
• Rear door features manual, 3 position adjustable door stop which provides convenient support while door in open position.
• Formed lip on enclosure excludes flowing liquids and contaminants.
• Slotted quarter turn oil-tight latches secure the door, with optional tamper resistant and locking latches available.
• Stainless steel models utilize stainless steel hardware.
• Oil resistant gaskets are permanently secured and mechanically retained.
• Features several internal stud locations for mounting of various accessories.
• A bonding screw is provided on the door and a grounding stud is provided in the enclosure.


Finish

• Available in RAL 7032 beige powder coating, ANSI 61 gray powder coating and natural stainless steel with a smooth, brushed finish.
• 24" Front Window Door available in same finishes.

Accessories

• Air conditioners
• Blowers
• Filter fans
• Fan trays
• Heaters
• Modular Console Accessories
• Rack mount accessories
