Modular Console Accessories


Quick Links:

  • Pedestal

    Hammond p264 S2000 pedestal
    • Maintains NEMA rating of system.
    • Formed 14 gauge steel.
    • Also offered with formed 14 gauge stainless steel.
    • Stiffeners added for solid stability.
    • Open top and bottom provides an unobstructed wireway for pull through cabling.
    • Can be mounted directly on floor or on a plinth.
    • Available in light gray and stainless steel.
    • Download PDF
    Part Number Finish
    2CLS ANSI 61 Gray (smooth)
    2CSS Stainless Steel

  • Modular Plinth

    Hammond p264 mod plinth
    • Features removable front and rear panels for easy access to bottom for cabling or transport by forklift.
    • For cable access, features 3 double knockouts on each end. (NOTE: not on stainless steel version)
    • Available in 4" and 8" heights.
    • Available in 24", 36", 48" and 60" widths.
    • Maintains NEMA rating of system.
    • Formed 14 gauge steel.
    • Also offered with formed 14 gauge stainless steel.
    • Available in light gray and stainless steel.
    • Download PDF
    Hammond p264 plinth
    RAL 7035 Light Gray Part No. Stainless Steel Part No. A B1 B2
    2CLP42418 2CSP42418 4 24 --
    2CLP43618 2CSP43618 4 36 --
    2CLP44818 2CSP44818 4 -- 48
    2CLP46018 2CSP46018 4 -- 60
    2CLP82418 2CSP82418 8 24 --
    2CLP83618 2CSP83618 8 36 --
    2CLP84818 2CSP84818 8 -- 48
    2CLP86018 2CSP86018 8 -- 60

  • Footrest

    Hammond p265 S2000 footrest
    • Generally used in combination with plinth.
    • Provides a raised foot support to relieve back stress.
    • Gives the installation a "finished" appearance.
    • Available in 24", 36", 48" and 60" widths.
    • Maintains NEMA rating of system.
    • Formed 14 gauge steel.
    • Also offered with formed 14 gauge stainless steel.
    • Rubber tread for added traction on footrest surface.
    • Available in light gray and natural stainless steel.
    • Download PDF
    RAL 7035 Light Gray Part No. Stainless Steel Part No. B
    2CLF24 2CSF24 24
    2CLF36 2CSF36 36
    2CLF48 2CSF48 48
    2CLF60 2CSF60 60

  • Data Terminal Extension Ring

    Hammond p265 S2000 terminal extension ring
    • Formed 14 gauge steel.
    • Adds 6" to Data Terminal Depth.
    • Maintains NEMA rating.
    • Utilizes door from Data Terminal.
    • Fastens flush to back of Data Terminal.
    • Can be mounted directly on floor or on a plinth.
    • Available in light gray and natural stainless steel.
    • Download PDF
    Part Number Finish
    2CLD24X ANSI 61 Gray (smooth)
    2CSD24X Stainless Steel

  • Turret/Terminal Window Door

    Hammond p265 turret wndw dr
    • Maintains the NEMA rating of the enclosure.
    • Formed 14 gauge steel. Formed 14 gauge steel.
    • Easy field installation.
    • Fits Standard Turret, Deep Turret, and Data Terminal.
    • Offered in 24" width only.
    • Available in light gray and stainless steel.
    • Download PDF
    Part Number Finish
    2CLTW24 ANSI 61 Gray (smooth)
    2CSTW24 Stainless Steel

  • Base Cover

    Hammond catalog
    • Should be used to close top opening (of either single or dual access) base when no other components are mounted on the base’s top.
    • Constructed of 14 gauge steel.
    • Available light gray and stainless steel.
    • Can also be used on the underside of a Standard Desk Unit, Standard Turret and Data Terminal.
    • Download PDF
    RAL 7035 Light Gray Part No. Stainless Steel Part No. B
    2CLBC2436 2CSBC2436 24
    2CLBC3636 2CSBC3636 36
    2CLBC4836 2CSBC4836 48
    2CLBC6036 2CSBC6036 60

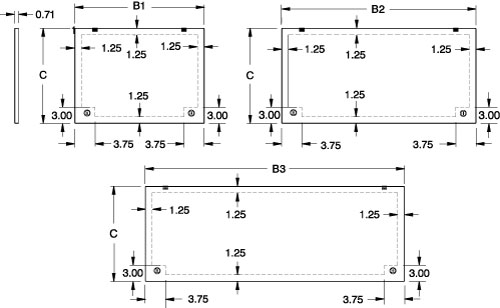

  • Desk Cover

    Hammond catalog
    • For use when no turret is used on top of desk.
    • Provides a hinged, flat, sturdy desk surface.
    • Available for either Standard or Deep desks.
    • Constructed of 14 gauge steel.
    • Features quarter turn latches for easy access into flat desk top.
    • Available in light gray and stainless steel.
    • Hammond hware inclded
    • Download PDF
    Hammond p266 desk cvr

    Standard Depth Desk Cover

    RAL 7035 Light Gray Part No. Stainless Steel Part No. B1 B2 B3 C
    2CLDC2436 2CSDC2436 23.75 -- -- 16.38
    2CLDC3636 2CSDC3636 -- 35.75 -- 16.38
    2CLDC4836 2CSDC4836 -- -- 47.75 16.38
    2CLDC6036 2CSDC6036 -- -- 59.75 16.38

    Deep Depth Desk Cover

    RAL 7035 Light Gray Part No. Stainless Steel Part No. B1 B2 B3 C
    2CLDC2443 2CSDC2443 23.75 -- -- 24.03
    2CLDC3643 2CSDC3643 -- 35.75 -- 24.03
    2CLDC4843 2CSDC4843 -- -- 47.75 24.03
    2CLDC6043 2CSDC6043 -- -- 59.75 24.03

  • Base Window Door

    Hammond p267 s2000 window door
    • Maintains the NEMA rating of the enclosure.
    • Constructed of 14 gauge steel and lexan window.
    • Easy field installation.
    • Available for the 4 base widths.
    • On 2 door units, a window can be installed on one side only.
    • Available in light gray and stainless steel.
    • Hammond hware inclded
    • Download PDF
    Hammond p267 base wnd dr
    RAL 7035 Light Gray Part No. Stainless Steel Part No. Fits Base Width B C
    2CLBW24 2CSBW24 24 23.75 16.75
    2CLBW36 2CSBW36 36 35.75 28.75
    2CLBW48 2CSBW48 48 23.75 16.75
    2CLBW60 2CSBW60 60 29.75 22.75

  • Base Panel

    Hammond p267 S2000 base panel
    • 14 gauge steel panels are finished in white.
    • Used in both single access and dual access bases.
    • Available in 4 widths.
    • Mounts into "C" Channel Mounting Kit (not included.)
    • Hardware required for mounting into "C" channels is included.
    • Hammond hware inclded
    • Download PDF
    Part Number Fits Base Width Height Width Depth
    2CWBP24 24 22.5 20 0.75
    2CWBP36 36 22.5 32 0.75
    2CWBP48 48 22.5 44 0.75
    2CWBP60 60 22.5 56 0.75

  • Consolet Panel

    Hammond p267 S2000 consolet panel
    • 12 gauge steel panels.
    • Available in 4 widths.
    • Mounts onto panel mounting studs in consolet.
    • Finished in white.
    • Hammond hware inclded
    • Download PDF
    Part Number Fits Consolet  Width Height Width Depth
    2CWCP24 24 30.5 20.5 0.75
    2CWCP36 36 30.5 32.5 0.75
    2CWCP48 48 30.5 44.5 0.75
    2CWCP60 60 30.5 56.5 0.75

  • Desk Inner Panel

    • 12 gauge steel panels.
    • Used in both Standard and Deep desks.
    • Available in 4 widths.
    • Mounts horizontally onto panel mounting channels in bottom of desk.
    • Finished in white.
    • Hammond hware inclded
    • Download PDF
    Part Number Fits Consolet  Width Height Width Depth
    2CWDP24 24 0.5 22 16
    2CWDP36 36 0.5 34 16
    2CWDP48 48 0.5 46 16
    2CWDP60 60 0.5 58 16

  • Terminal Keyboard Shelf

    Hammond p268 S2000 terminal keyboard shelf
    • Designed specifically for use in Data Terminal.
    • Sloped wrist rest provides comfort for operator.
    • Locks in place when extended.
    • 20" width accommodates standard width keyboards.
    • Finished in textured black.
    • Slides included.
    • Slide-out mouse pad (left or right) included.
    • Hammond hware inclded
    • Download PDF
    Part Number Height Width Depth
    2CWDSR 3.88 20 15.63

  • Swing Frame

    Hammond p268 S2000 swing frame
    • Available in 19" and 24" widths.
    • Variable depth feature allows front to rear adjustment.
    • Installs with either left or right hinging.
    • Mounts onto Rail Support Kits (not included).
    • Clip nuts required for mounting to punched rails.
    • Finished in textured black.
    • Hammond hware inclded
    • Download PDF
    Part Number Fits Console Unit Fits Console Size Panel Width Panel Height A B
    2CSFT19 Turrets/Terminal 24,36,48,60 19" 8U 15.75 19.28
    2CSFT24 Turrets/Terminal 36,48,60 24" 8U 15.75 24.28
    2CSFB19 Bases 24,36,48,60 19" 12U 22.09 19.28
    2CSFB24 Bases 36,48,60 24" 12U 22.09 24.28

  • "C" Channel Mounting Kit

    Hammond p269 S2000 C Channel mtg kit
    • For use in Turrets, Data Terminals and Bases.
    • Provide adjustable (side to side) mounting support for Base Panels and all Rail Support Kits.
    • Available in 4 widths.
    • Finished in textured black.
    • Hammond hware inclded
    • Download PDF
    Hammond p269 c chnl
    Part Number Fits Console Width A
    2CMC24 24 23.5
    2CMC36 36 33.5
    2CMC48 48 47.5
    2CMC60 60 59.5

  • Rail Support Kit

    Hammond p269 S2000 rail support kit
    • Separate kits for Standard Turret/Data Terminal, Deep Turret and Bases.
    • For use with Swing Frame, CRT Mounting Kit and Combination Rails.
    • Mount into "C" channels (not included - see above).
    • Finished in textured black.
    • Download PDF
    Part Number Fits Console Unit
    2CTRSK36 Turret/Terminal
    2CTRSK43 Deep Turret
    2CBRSK Base

  • Combination Rails

    Hammond p269 Combination rails
    • Features punched universal EIA spacing.
    • Mounts onto Rail Support Kits (not included - see above).
    • Clip nuts required for mounting to punched rails
    • Finished in black.
    • Download PDF
    Part Number Units Fits Console Unit
    2CTRK 9 Turrets/Terminal
    2CBRK 13 Base

  • CRT Mounting Kit

    Hammond p269 S2000 CRT mtg kit
    • Adjustable width allows for mounting of most CRT models.
    • For use in Turrets or Data Terminal.
    • Mounts onto Rail Support Kits (not included - see above).
    • Available in light gray and stainless steel.
    • Download PDF
    • Part No. 2CRTK

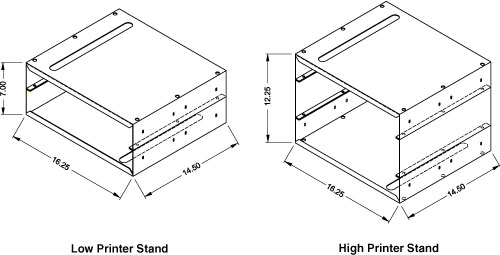

  • Printer and Paper Stand

    Hammond p270 S2000 printer stand
    • Provides convenient pullout access and support for printers in bases.
    • Two versions available for high or low applications.
    • Mounts onto Combination Rails (not included).
    • Finished in textured black.
    • Slides included.
    • Hammond hware inclded
    • Download PDF
    Hammond p270 prnter ppr
    Part Number Description Height
    2CLPS Low Printer Stand 7.00
    2CHPS High Printer Stand 12.25

  • Gas Filled Door Support

    Hammond p270 S2000 gas filled door sup
    • Provide "lift assist" and door support for rear Turret/Data Terminal doors and Desk lids.
    • Replace standard manual door supports.
    • Finished in black.
      • Sold individually.
    • Recommend 1 for 24"/36" and 2 for 48"/60".
    • Download PDF
    • Part No. 2CDSTP

  • DIN Rail Support Kit

    Hammond p270 rail
      • Provide adjustable mounting support for DIN rails (sold separately.)
    • For use in Bases only.
    • Mount into "C" channels (not included).
    • Hammond hware inclded
    • Download PDF
    • Part No. 2CDMK

  • DIN Rails

    Hammond p271 din rail
    • Field installable.
    • Includes a set of 3 plated rails.
    • Available in 3 industry standard profiles - DIN 1, DIN 3, and CENELEC.
    • DIN Rail Support Kit required.
    • Rails have a 0.28 x 1.25 oblong slot on each end.
    • Download PDF
    Hammond p28 dinrail
    Asymmetric DIN1 Profile Part Number Symmetric DIN 3 Profile Part Number Cenelec Profile Part Number Length
    2D1K12 2D2K12 2DCK12 9.25
    2D1K16 2D2K16 2DCK16 13.25
    2D1K20 2D2K20 2DCK20 17.25
    2D1K24 2D2K24 2DCK24 21.25
    2D1K30 2D2K30 ` 2DCK30 27.25

  • Micro Cell Cable Entry Kit

    Hammond p271 microcell cable entry bott
    • For use in Single or Dual Access Bases. .
    • Constructed of 14 gauge steel.
    • Features 2 cutouts for cable access.
    • Underside of cutouts covered with black foam rubber, which when punctured for cable access, still maintains a virtually sealed bottom.
    • Finished in textured black.
    • Download PDF
    • Part No. 2CMBPK

  • Mobile Keyboard Support

    Hammond p271 S2000 mobile keyboard sup
    • Installs easily at any location along front of Desks or Consolet.
    • Provides auxiliary or temporary keyboard support.
    • 20" width accommodates standard width keyboards.
    • Finished in textured black.
    • Requires two drilled holes to permanently mount.
    • Download PDF
    • Part No. 2CMKS24
