Application

• Serves as an economical housing for operator interface applications.
• Provides an ideal sloped surface for mounting keyboards, switches, indicator lights, and/or dials.
• Provides panel mounting capabilities for a variety of applications.
  Generally used as a stand alone enclosure. Possible to put side by side with base on a single plinth (ie. 36" wide consolet with 24" base with terminal all together on a 60" plinth.
• Optional casters (require plinth) allow for a completely mobile, NEMA rated work station.
• Smooth lines and clean edges provide an attractive, contemporary appearance.


Standards

ANSI 61 Gray

• UL 508 Type 3R, 4,12
• CSA Type 3R, 4, 12, 13
• Complies with
  • NEMA Type 3R, 4, 12
  • IEC 60529, IP66

Stainless Steel (Type 304)

• UL 508 Type 3R, 4, 4X, 12
• CSA Type 3R, 4, 4X, 12
• Complies with
  • NEMA Type 3R, 4, 4X, 12
  • IEC 60529, IP66

Construction

• Formed 14 gauge steel bodies with 14 gauge steel door and lid.
• Also offered with formed 14 gauge 304 stainless steel bodies with 14 gauge 304 stainless steel door and lid.
• Smooth, continuously welded seams without knockouts or holes.
• Body stiffeners are provided where required for increased strength and rigidity.

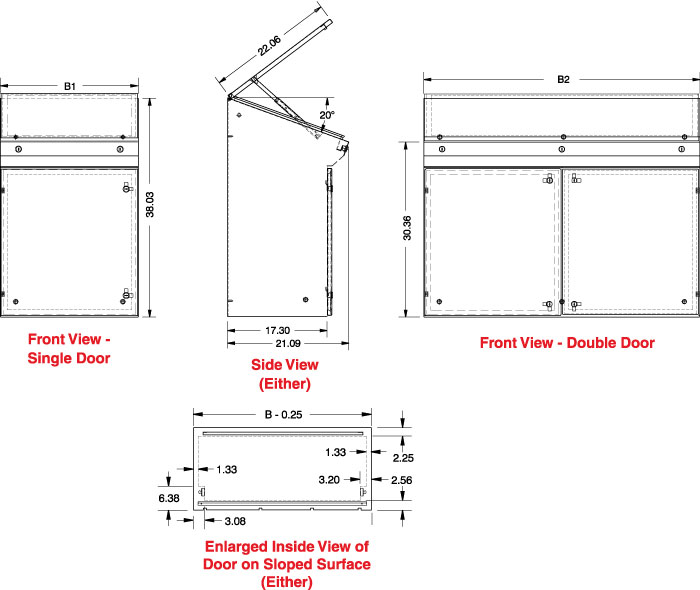

• Offered in 4 widths 24", 36", 48" and 60".
• Has solid sides and back, solid door on front, 3 point adjustable lid on sloped (20°) top, and closed bottom with removable access panel.
• 24" and 36" widths have single door on the front whereas 48" and 60" widths have two outside hinged doors on the front.
• Doors can be hinged from either side on 24" and 36" units.
• Door profiles provide increased strength and are pre-punched to provide mounting options.
• Formed lip on enclosure excludes flowing liquids and contaminants.

• Slotted quarter turn oil-tight latches secure the door and lid, with optional tamper resistant and locking latches available.
• Stainless steel models utilize stainless steel hardware.
• Oil resistant gaskets are permanently secured and mechanically retained.
• Features internal stud locations for mounting optional inner panel.
• A bonding screw is provided on the door and a grounding stud is provided in the enclosure.


Finish

• Available in RAL 7032 beige powder coating, ANSI 61 gray powder coating and natural stainless steel with a smooth, brushed finish.

Accessories

• Air conditioners
• Blowers
• Filter fans
• Fan trays
• Heaters
• Modular Console Accessories
• Rack mount accessories
