1488 Series Consolets - NEMA 12, 13
Hinged Cover Consolets
Application
- Designed for use as electric, hydraulic or pneumatic control and instrument enclosures.
- Ideal for flat or surface mounting/pedestal to provide the necessary 30° or 60° control slope.
- Provides protection from dirt, dust, oil and water.
Standards
- UL 508 Type 12, 13
- CSA Type 12, 13
- Complies with
- NEMA Type 12, 13
- IEC 60529, IP54
Construction
- Formed 14 gauge steel.
- mooth, continuously welded seams.
- Construction provides either 30° or 60° slope on front cover depending on mounting position.
- Continuously hinged cover may be removed by pulling the hinge pin.
- Captive cover screws thread into sealed wells.
- Oil resistant gasket and adhesive.
- A bonding stud is provided on the door and a ground stud is provided on the enclosure.
Finish
- Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.
Accessories

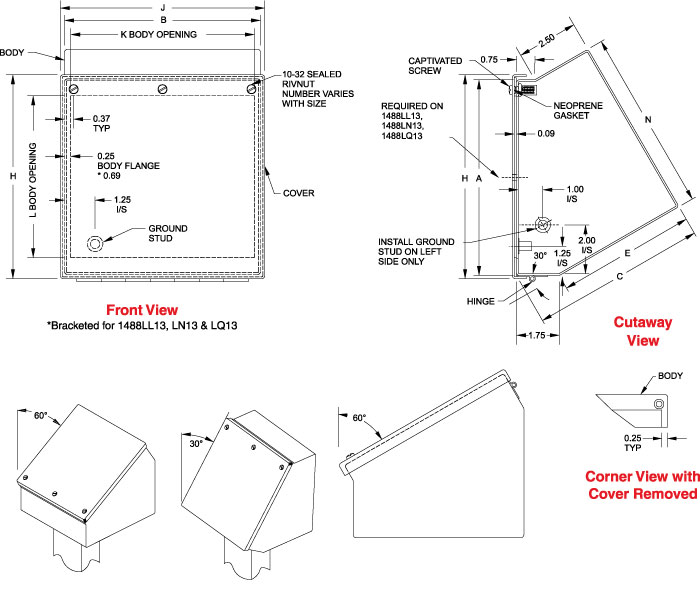

| Part No. | A | B | C | E | N | L | K | H | J | Ship Wt. lbs. |
1488EE7 Buy › |
8 | 8 | 7.16 | 5.64 | 7.44 | 6.63 | 7.50 | 8.34 | 8.34 | 9 |
1488EH7 Buy › |
8 | 12 | 7.16 | 5.64 | 7.44 | 6.63 | 11.50 | 8.34 | 12.34 | 11 |
1488EJ7 Buy › |
8 | 16 | 7.16 | 5.64 | 7.44 | 6.63 | 15.50 | 8.34 | 16.34 | 13 |
1488EL7 Buy › |
8 | 20 | 7.16 | 5.64 | 7.44 | 6.63 | 19.50 | 8.34 | 20.34 | 15 |
1488HH9 Buy › |
12 | 12 | 9.16 | 7.64 | 10.9 | 10.63 | 11.50 | 12.34 | 12.34 | 16 |
1488HJ9 Buy › |
12 | 16 | 9.16 | 7.64 | 10.9 | 10.63 | 15.50 | 12.34 | 16.34 | 19 |
1488HL9 Buy › |
12 | 20 | 9.16 | 7.64 | 10.9 | 10.63 | 19.50 | 12.34 | 20.34 | 24 |
1488HN9 Buy › |
12 | 24 | 9.16 | 7.64 | 10.9 | 10.63 | 23.50 | 12.34 | 24.34 | 26 |
1488JJ11 Buy › |
16 | 16 | 11.16 | 9.64 | 14.37 | 14.63 | 15.50 | 16.34 | 16.34 | 26 |
1488JL11 Buy › |
16 | 20 | 11.16 | 9.64 | 14.37 | 14.63 | 19.50 | 16.34 | 20.34 | 30 |
1488JN11 Buy › |
16 | 24 | 11.16 | 9.64 | 14.37 | 14.63 | 23.50 | 16.34 | 24.34 | 39 |
1488JQ11 Buy › |
16 | 30 | 11.16 | 9.64 | 14.37 | 14.63 | 29.50 | 16.34 | 30.34 | 45 |
1488JS11 Buy › |
16 | 36 | 11.16 | 9.64 | 14.37 | 14.63 | 35.50 | 16.34 | 36.34 | 44 |
1488LL13 Buy › |
20 | 20 | 13.16 | 11.64 | 17.83 | 18.63 | 18.63 | 20.34 | 20.34 | 37 |
1488LN13 Buy › |
20 | 24 | 13.16 | 11.64 | 17.83 | 18.63 | 22.63 | 20.34 | 24.34 | 44 |
1488LQ13 Buy › |
20 | 30 | 13.16 | 11.64 | 17.83 | 18.63 | 28.63 | 20.34 | 30.34 | 47 |
