Pushbutton Enclosures - NEMA 4, 4X
1435/1435M Stainless Steel Series
Application
- Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- Provides protection from dirt, dust, oil and large amounts of water from any angle, or where highly corrosive conditions exist.
Standards
- UL 508 Type 4 and 4X
- CSA Type 4 and 4X
- Complies with
- NEMA Type 3R, 4 and 4X
- JIC Standard EGP-1-1967
- IEC 60529, IP66
- Appropriate components are required to maintain these standards.
Construction
- Formed 14 gauge stainless steel except A and B which are 16 gauge.
304 or 316 SS. - Smooth continuously welded seams.
- Welded brackets provide for enclosure mounting.
- Captive stainless steel cover screws thread into sealed wells.
- Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring.
- Oil resistant gasket and adhesive.
- A grounding stud is provided in the enclosure.
Finish
- Natural stainless steel with a smooth brushed finish.
Accessories

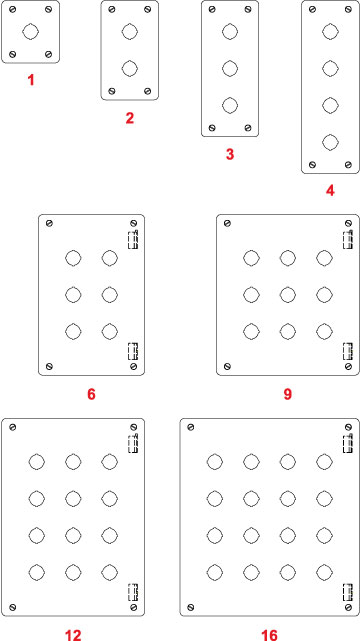

| Part No. | No. Of Holes |
Overall Dimensions | Ship Wt. lbs. |
||||||||||||
| 304 S.S. 22.5mm |
304 S.S. 30.5mm |
316 S.S. 22.5mm |
316 S.S. 30.5mm |
A | B | C | D | E | F | G | L | W | Z | ||

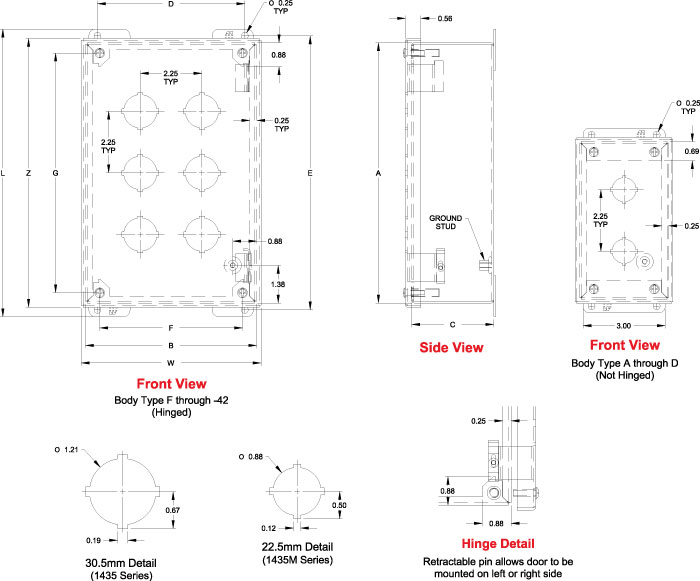

| 1435MSSA¹ Buy › | 1435SSA¹ Buy › | 1435MS16A¹ Buy › | 1435S16A¹ Buy › | 1 | 3.50 | 3.25 | 2.75 | 2.38 | 4.00 | 2.21 | 2.75 | 4.50 | 3.56 | 3.81 | 2 |
| 1435MSSB¹ Buy › | 1435SSB¹ Buy › | 1435MS16B¹ Buy › | 1435S16B¹ Buy › | 2 | 5.75 | 3.25 | 2.75 | 2.38 | 6.25 | 2.21 | 5.00 | 6.75 | 3.56 | 6.06 | 3 |
| 1435MSSC¹ Buy › | 1435SSC¹ Buy › | 1435MS16C¹ Buy › | 1435S16C¹ Buy › | 3 | 8.00 | 3.25 | 2.75 | 2.38 | 8.50 | 2.21 | 7.25 | 9.00 | 3.56 | 8.31 | 3 |
| 1435MSSD¹ Buy › | 1435SSD¹ Buy › | 1435MS16D¹ Buy › | 1435S16D¹ Buy › | 4 | 10.25 | 3.25 | 2.75 | 2.38 | 10.75 | 2.21 | 9.50 | 11.25 | 3.56 | 10.56 | 4 |
| 1435MSSH Buy › | 1435SSH Buy › | 1435MS16H Buy › | 1435S16H Buy › | 6 | 9.50 | 6.25 | 3.00 | 5.38 | 10.00 | 5.21 | 8.75 | 10.50 | 6.56 | 9.81 | 6 |
| 1435MSSK Buy › | 1435SSK Buy › | 1435MS16K Buy › | 1435S16K Buy › | 9 | 9.50 | 8.50 | 3.00 | 7.63 | 10.00 | 7.46 | 8.75 | 10.50 | 8.81 | 9.81 | 7 |
| 1435MSSO Buy › | 1435SSO Buy › | 1435MS16O Buy › | 1435S16O Buy › | 12 | 11.75 | 8.50 | 3.00 | 7.63 | 12.25 | 7.46 | 11.00 | 12.75 | 8.81 | 12.06 | 8 |
