Modular Freestanding Enclosures - NEMA 12

HMET Series Double Door Enclosure

Application

The HMET 2 door product line provides users with a rugged housing for industrial control and operator interface in industrial environments.
Modular design permits joining of units together for large scale and mixed use applications.
Frame's 25mm hole pattern provides extensive component and accessory mounting flexibility.
A broad range of industry standard sizes are offered.

Standards

UL 508 Type 12
CSA Type 12
Complies with
- NEMA Type 12
- IEC 60529 IP54

Standard Configuration

Frame
Removable solid top panel
Lifting eyebolts (4)
Removable bottom panel w/gland plates
Two overlapping solid front doors with door frames
Two removable rear cover panels with removable rear center post
Full width inner mounting panel

Construction

Formed 14 gauge steel.
Fully welded frame with 25mm hole pattern for superior mounting flexibility.
Seamless foam in place gasket.
Reinforced eyebolts are provided for easy enclosure lifting.
Frames can be joined together with an optional joining kit.
Doors can be easily interchanged, removed and/or reversed.
Door opening 135°.
Optional formed 14 gauge steel side panels are sold separately (in pairs).
Bonding and grounding studs are provided for all doors and panels.

Finish

Phosphatized and finished in RAL 7035 light gray powder coating.
Inner panel is unpainted galvanized 12 gauge steel.

Accessories

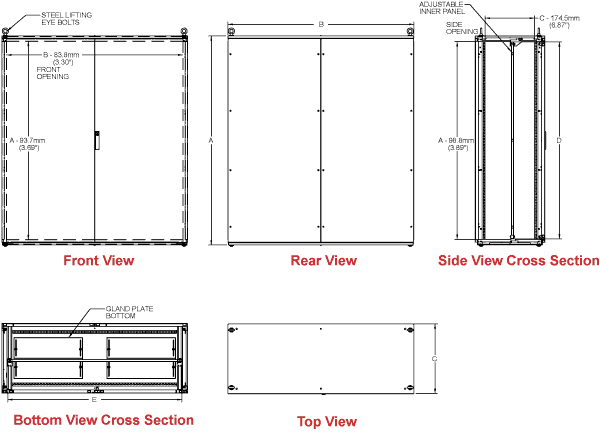

Part No.		Overall Dimensions (in/mm)			Panel Dimensions
Part No.		A	B	C	Height	Width
HMET14125	inch	55.12	47.25	19.69	51.03	43.27
HMET14125	mm	1400	1200	500	1296	1099
HMET14126	inch	55.12	47.25	23.62	51.03	43.27
HMET14126	mm	1400	1200	600	1296	1099
HMET14128	inch	55.12	47.25	31.50	51.03	43.27
HMET14128	mm	1400	1200	800	1296	1099
HMET16125	inch	62.99	47.25	19.69	58.90	43.27
HMET16125	mm	1600	1200	500	1496	1099
HMET16126	inch	62.99	47.25	23.62	58.90	43.27
HMET16126	mm	1600	1200	600	1496	1099
HMET16128	inch	62.99	47.25	31.50	58.90	43.27
HMET16128	mm	1600	1200	800	1496	1099
HMET1886	inch	70.87	31.50	23.62	66.77	27.52
HMET1886	mm	1800	800	600	1696	699
HMET1885	inch	70.87	31.50	19.69	66.77	27.52
HMET1885	mm	1800	800	500	1696	699
HMET18104	inch	70.87	39.37	15.75	66.77	35.40
HMET18104	mm	1800	1000	400	1696	899
HMET18124	inch	70.87	47.25	15.75	66.77	43.27
HMET18124	mm	1800	1200	400	1696	1099
HMET18125	inch	70.87	47.25	19.69	66.77	43.27
HMET18125	mm	1800	1200	500	1696	1099
HMET18126	inch	70.87	47.25	23.62	66.77	43.27
HMET18126	mm	1800	1200	600	1696	1099
HMET18128	inch	70.87	47.25	31.50	66.77	43.27
HMET18128	mm	1800	1200	1200	1696	1099
HMET18164	inch	70.87	62.99	15.75	66.77	59.02
HMET18164	mm	1800	1600	400	1696	1499
HMET18165	inch	70.87	62.99	19.69	66.77	59.02
HMET18165	mm	1800	1600	500	1696	1499
HMET18166	inch	70.87	62.99	23.62	66.77	59.02
HMET18166	mm	1800	1600	600	1696	1499
HMET18168	inch	70.87	62.99	31.50	66.77	59.02
HMET18168	mm	1800	1600	800	1696	1499
HMET18184	inch	70.87	70.87	15.75	66.77	66.89
HMET18184	mm	1800	1800	400	1696	1699
HMET18185	inch	70.87	70.87	19.69	66.77	66.89
HMET18185	mm	1800	1800	500	1696	1699
HMET18186	inch	70.87	70.87	23.62	66.77	66.89
HMET18186	mm	1800	1800	600	1696	1699
HMET18188	inch	70.87	70.87	31.50	66.77	66.89
HMET18188	mm	1800	1800	800	1696	1699
HMET20105	inch	78.74	39.37	19.69	74.65	35.40
HMET20105	mm	2000	1000	500	1896	899
HMET20106	inch	78.74	39.37	23.62	74.65	35.40
HMET20106	mm	2000	1000	600	1896	899
HMET20124	inch	78.74	47.25	15.75	74.65	43.27
HMET20124	mm	2000	1200	400	1896	1099
HMET20125	inch	78.74	47.25	19.69	74.65	43.27
HMET20125	mm	2000	1200	500	1896	1099
HMET20126	inch	78.74	47.25	23.62	74.65	43.27
HMET20126	mm	2000	1200	600	1896	1099
HMET20128	inch	78.74	47.25	31.50	74.65	43.27
HMET20128	mm	2000	1200	800	1896	1099
HMET20165	inch	78.74	62.99	19.69	74.65	59.02
HMET20165	mm	2000	1600	500	1896	1499
HMET20166	inch	78.74	62.99	23.62	74.65	59.02
HMET20166	mm	2000	1600	600	1896	1499
HMET20168	inch	78.74	62.99	31.50	74.65	59.02
HMET20168	mm	2000	1600	800	1896	1499
HMET20185	inch	78.74	70.87	19.69	74.65	66.89
HMET20185	mm	2000	1800	500	1896	1699
HMET20186	inch	78.74	70.87	23.62	74.65	66.89
HMET20186	mm	2000	1800	600	1896	1699
HMET20188	inch	78.74	70.87	31.50	74.65	66.89
HMET20188	mm	2000	1800	800	1896	1699
HMET22106	inch	86.62	39.37	23.62	82.52	35.40
HMET22106	mm	2200	1000	600	2096	899
HMET22125	inch	86.62	47.25	19.69	82.52	43.27
HMET22125	mm	2200	1200	500	2096	1099
HMET22126	inch	86.62	47.25	23.62	82.52	43.27
HMET22126	mm	2200	1200	600	2096	1099
