Eclipse Series - NEMA 4, 12
Single Door Enclosures
Application
- Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
- A wide range of sizes and practical accessories make this product line a complete package.
- For high temperature applications, a gasket retainer may be required, please refer to factory.
Standards
- UL 508 Type 3R, 4, and 12
- CSA Type 3R, 4, and 12
- Complies with
- NEMA Type 3R, 4, and 12
- IEC 60529, IP66
Construction
- Formed 14 or 16 gauge steel.
- Smooth, continuously welded seams ground smooth.
- Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
- Doors may be easily removed for modifications and are interchangeable.
- Oil resistant gaskets are permanently secured.
- Collar studs provided for mounting inner panel.
- Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
- Bonding stud provided on door and grounding stud installed in enclosure.
- Hinges are constructed from 304 stainless steel.
- Hinge pins are stainless steel.
- Quarter turn latch and 3 point handle (key lockable) are zinc diecast with black epoxy finish.
Finish
- Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
- RAL7032 textured beige (CG) versions with gland plates are available as non-stock items.
Accessories
- Air conditioners
- Blowers
- Breather kits
- DIN rails
- DIN rail mounting kit
- Door stop kit
- Drip Shield Kit
- Filter fans
- Gland plates
- Heaters
- Handles
- Inner panels
- Quarter turn inserts and keys
- Literature pocket
- Mounting foot kit
- Swing frame
- Swing panel
- Replacement hinge pins
- Replacement quarter turn assemblies
- Thermostats
- Touch up paint
- UL/CSA approved hardware kit
- Padlock adapter (EPA)
| Part No. (ANSI 61 Gray) |
Part No. (RAL 7035 Light Gray) |

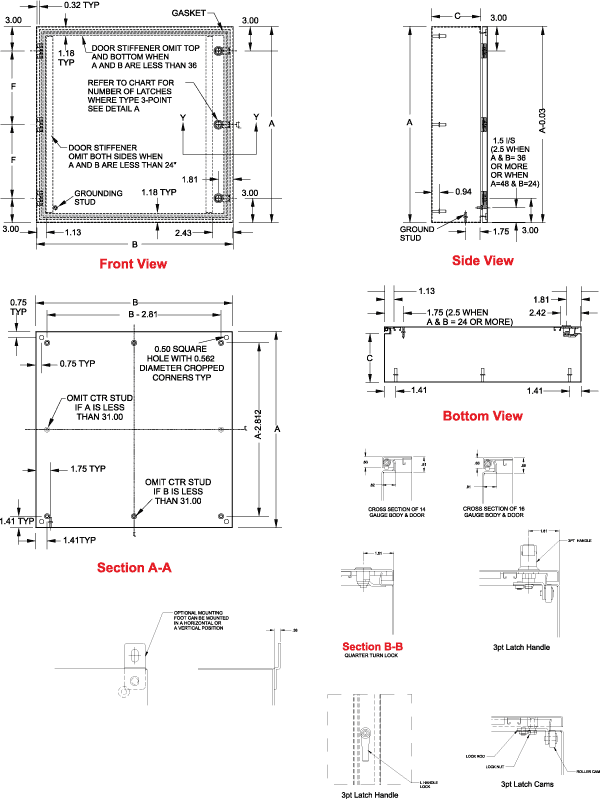

Overall Dimensions |
Door/ Body Gauge |
Latches | Opt. Panel Part No. |
Panel Size | # Hinges |
Ship Wt. (lbs) |
|||||
| A | B | C | Qty | Type | D | E | F | ||||||
| EN4SD12126GY Buy › | EN4SD12126LG Buy › | 12 | 12 | 6 | 16 | 1 | Qtr Turn | EP1212 | 10.20 | 10.20 | 2 | 6 | 12 |
| EN4SD12246GY Buy › | EN4SD12246LG Buy › | 12 | 24 | 6 | 16 | 1 | Qtr Turn | EP1224 | 10.20 | 22.20 | 2 | 18 | 24 |
| EN4SD16126GY Buy › | EN4SD16126LG Buy › | 16 | 12 | 6 | 16 | 1 | Qtr Turn | EP1612 | 14.20 | 10.20 | 2 | 10 | 16 |
| EN4SD16166GY Buy › | EN4SD16166LG Buy › | 16 | 16 | 6 | 16 | 1 | Qtr Turn | EP1616 | 14.20 | 14.20 | 2 | 10 | 19 |
| EN4SD16206GY Buy › | EN4SD16206LG Buy › | 16 | 20 | 6 | 16 | 1 | Qtr Turn | EP1620 | 14.20 | 18.20 | 2 | 10 | 22 |
| EN4SD20126GY Buy › | EN4SD20126LG Buy › | 20 | 12 | 6 | 16 | 1 | Qtr Turn | EP2012 | 18.20 | 10.20 | 2 | 14 | 20 |
| EN4SD20166GY Buy › | EN4SD20166LG Buy › | 20 | 16 | 6 | 16 | 1 | Qtr Turn | EP2016 | 18.20 | 14.20 | 2 | 14 | 22 |
| EN4SD20206GY Buy › | EN4SD20206LG Buy › | 20 | 20 | 6 | 16 | 1 | Qtr Turn | EP2020 | 18.20 | 18.20 | 2 | 14 | 26 |
| EN4SD20246GY Buy › | EN4SD20246LG Buy › | 20 | 24 | 6 | 16 | 1 | Qtr Turn | EP2412 | 22.20 | 10.20 | 2 | 14 | 32 |
| EN4SD24126GY Buy › | EN4SD24126LG Buy › | 24 | 12 | 6 | 16 | 1 | Qtr Turn | EP2412 | 22.20 | 10.20 | 2 | 18 | 24 |
| EN4SD24166GY Buy › | EN4SD24166LG Buy › | 24 | 16 | 6 | 16 | 1 | Qtr Turn | EP2416 | 22.20 | 14.20 | 2 | 18 | 26 |
| EN4SD24206GY Buy › | EN4SD24206LG Buy › | 24 | 20 | 6 | 16 | 1 | Qtr Turn | EP2420 | 22.20 | 18.20 | 2 | 18 | 30 |
| EN4SD24246GY Buy › | EN4SD24246LG Buy › | 24 | 24 | 6 | 14 | 2 | Qtr Turn | EP2424 | 22.20 | 22.20 | 2 | 18 | 37 |
| EN4SD30166GY Buy › | EN4SD30166LG Buy › | 30 | 16 | 6 | 14 | 2 | Qtr Turn | EP3016 | 28.20 | 14.20 | 3 | 12 | 35 |
| EN4SD30206GY Buy › | EN4SD30206LG Buy › | 30 | 20 | 6 | 14 | 2 | Qtr Turn | EP3020 | 28.20 | 18.20 | 3 | 12 | 38 |
| EN4SD30246GY Buy › | EN4SD30246LG Buy › | 30 | 24 | 6 | 14 | 2 | Qtr Turn | EP3024 | 28.20 | 22.20 | 3 | 12 | 40 |
| EN4SD36246GY Buy › | EN4SD36246LG Buy › | 36 | 24 | 6 | 14 | 2 | Qtr Turn | EP3624 | 34.20 | 22.20 | 3 | 15 | 52 |
| EN4SD36306GY Buy › | EN4SD36306LG Buy › | 36 | 30 | 6 | 14 | 2 | Qtr Turn | EP3630 | 34.20 | 28.20 | 3 | 15 | 60 |
| EN4SD12248GY Buy › | EN4SD12248LG Buy › | 12 | 24 | 8 | 16 | 1 | Qtr Turn | EP1224 | 10.2 | 22.2 | 2 | 6 | 25 |
| EN4SD16128GY Buy › | EN4SD16128LG Buy › | 16 | 12 | 8 | 16 | 1 | Qtr Turn | EP1612 | 14.2 | 10.2 | 2 | 10 | 16 |
| EN4SD16168GY Buy › | EN4SD16168LG Buy › | 16 | 16 | 8 | 16 | 1 | Qtr Turn | EP1616 | 14.2 | 14.2 | 2 | 10 | 21 |
| EN4SD16208GY Buy › | EN4SD16208LG Buy › | 16 | 20 | 8 | 16 | 1 | Qtr Turn | EP1620 | 14.2 | 18.2 | 2 | 10 | 25 |
| EN4SD20128GY Buy › | EN4SD20128LG Buy › | 20 | 12 | 8 | 16 | 1 | Qtr Turn | EP2012 | 18.2 | 10.2 | 2 | 14 | 22 |
| EN4SD20168GY Buy › | EN4SD20168LG Buy › | 20 | 16 | 8 | 16 | 1 | Qtr Turn | EP2016 | 18.2 | 14.2 | 2 | 14 | 25 |
| EN4SD20208GY Buy › | EN4SD20208LG Buy › | 20 | 20 | 8 | 16 | 1 | Qtr Turn | EP2020 | 18.2 | 18.2 | 2 | 14 | 28 |
| EN4SD20248GY Buy › | EN4SD20248LG Buy › | 20 | 24 | 8 | 16 | 1 | Qtr Turn | EP2024 | 18.2 | 22.2 | 2 | 14 | 32 |
| EN4SD24128GY Buy › | EN4SD24128LG Buy › | 24 | 12 | 8 | 16 | 1 | Qtr Turn | EP2412 | 22.2 | 10.2 | 2 | 18 | 25 |
| EN4SD24168GY Buy › | EN4SD24168LG Buy › | 24 | 16 | 8 | 16 | 1 | Qtr Turn | EP2416 | 22.2 | 14.2 | 2 | 18 | 26 |
| EN4SD24208GY Buy › | EN4SD24208LG Buy › | 24 | 20 | 8 | 16 | 1 | Qtr Turn | EP2420 | 22.2 | 18.2 | 2 | 18 | 32 |
| EN4SD24248GY Buy › | EN4SD24248LG Buy › | 24 | 24 | 8 | 14 | 2 | Qtr Turn | EP2424 | 22.2 | 22.2 | 2 | 18 | 40 |
| EN4SD24308GY Buy › | EN4SD24308LG Buy › | 24 | 30 | 8 | 14 | 2 | Qtr Turn | EP2430 | 22.2 | 28.2 | 2 | 18 | 48 |
| EN4SD30128GY Buy › | EN4SD30128LG Buy › | 30 | 12 | 8 | 14 | 2 | Qtr Turn | EP3012 | 28.2 | 10.2 | 3 | 12 | 34 |
| EN4SD30168GY Buy › | EN4SD30168LG Buy › | 30 | 16 | 8 | 14 | 2 | Qtr Turn | EP3016 | 28.2 | 14.2 | 3 | 12 | 40 |
| EN4SD30208GY Buy › | EN4SD30208LG Buy › | 30 | 20 | 8 | 14 | 2 | Qtr Turn | EP3020 | 28.2 | 18.2 | 3 | 12 | 42 |
| EN4SD30248GY Buy › | EN4SD30248LG Buy › | 30 | 24 | 8 | 14 | 2 | Qtr Turn | EP3024 | 28.2 | 22.2 | 3 | 12 | 46 |
| EN4SD30308GY Buy › | EN4SD30308LG Buy › | 30 | 30 | 8 | 14 | 2 | Qtr Turn | EP3030 | 28.2 | 28.2 | 3 | 12 | 67 |
| EN4SD30368GY Buy › | EN4SD30368LG Buy › | 30 | 36 | 8 | 14 | 2 | Qtr Turn | EP3036 | 28.2 | 34.2 | 3 | 12 | 77 |
| EN4SD36248GY Buy › | EN4SD36248LG Buy › | 36 | 24 | 8 | 14 | 2 | Qtr Turn | EP3624 | 34.2 | 22.2 | 3 | 15 | 55 |
| EN4SD36308GY Buy › | EN4SD36308LG Buy › | 36 | 30 | 8 | 14 | 2 | Qtr Turn | EP3630 | 34.2 | 28.2 | 3 | 15 | 77 |
| EN4SD36368GY Buy › | EN4SD36368LG Buy › | 36 | 36 | 8 | 14 | 2 | Qtr Turn | EP3636 | 34.2 | 34.2 | 3 | 15 | 94 |
| EN4SD42248GY Buy › | EN4SD42248LG Buy › | 42 | 24 | 8 | 14 | 1 | 3-point | EP4224 | 40.2 | 22.2 | 4 | 12 | 80 |
| EN4SD42308GY Buy › | EN4SD42308LG Buy › | 42 | 30 | 8 | 14 | 1 | 3-point | EP4230 | 40.2 | 28.2 | 4 | 12 | 95 |
| EN4SD42368GY Buy › | EN4SD42368LG Buy › | 42 | 36 | 8 | 14 | 1 | 3-point | EP4236 | 40.2 | 34.2 | 4 | 12 | 105 |
| EN4SD48248GY Buy › | EN4SD48248LG Buy › | 48 | 24 | 8 | 14 | 1 | 3-point | EP4824 | 46.2 | 22.2 | 4 | 14 | 110 |
| EN4SD48308GY Buy › | EN4SD48308LG Buy › | 48 | 30 | 8 | 14 | 1 | 3-point | EP4830 | 46.2 | 28.2 | 4 | 14 | 115 |
| EN4SD48368GY Buy › | EN4SD48368LG Buy › | 48 | 36 | 8 | 14 | 1 | 3-point | EP4836 | 46.2 | 34.2 | 4 | 14 | 120 |
| EN4SD60368GY Buy › | EN4SD60368LG Buy › | 60 | 36 | 8 | 14 | 1 | 3-point | EP6036 | 58.2 | 34.2 | 4 | 18 | 150 |
| EN4SD161210GY Buy › | EN4SD161210LG Buy › | 16 | 12 | 10 | 16 | 1 | Qtr. Turn | EP1612 | 14.2 | 10.2 | 2 | 10 | 18 |
| EN4SD161610GY Buy › | EN4SD161610LG Buy › | 16 | 16 | 10 | 16 | 1 | Qtr. Turn | EP1616 | 14.2 | 14.2 | 2 | 10 | 23 |
| EN4SD162010GY Buy › | EN4SD162010LG Buy › | 16 | 20 | 10 | 16 | 1 | Qtr. Turn | EP1620 | 14.2 | 18.2 | 2 | 10 | 28 |
| EN4SD201610GY Buy › | EN4SD201610LG Buy › | 20 | 16 | 10 | 16 | 1 | Qtr. Turn | EP2016 | 18.2 | 14.2 | 2 | 14 | 28 |
| EN4SD202010GY Buy › | EN4SD202010LG Buy › | 20 | 20 | 10 | 16 | 1 | Qtr. Turn | EP2020 | 18.2 | 18.2 | 2 | 14 | 31 |
| EN4SD202410GY Buy › | EN4SD202410LG Buy › | 20 | 24 | 10 | 16 | 1 | Qtr. Turn | EP2024 | 18.2 | 22.2 | 2 | 14 | 36 |
| EN4SD241210GY Buy › | EN4SD241210LG Buy › | 24 | 12 | 10 | 16 | 1 | Qtr Turn | EP2412 | 22.2 | 10.2 | 2 | 18 | 26 |
| EN4SD241610GY Buy › | EN4SD241610LG Buy › | 24 | 16 | 10 | 16 | 1 | Qtr. Turn | EP2416 | 22.2 | 14.2 | 2 | 18 | 30 |
| EN4SD242010GY Buy › | EN4SD242010LG Buy › | 24 | 20 | 10 | 16 | 1 | Qtr. Turn | EP2420 | 22.2 | 18.2 | 2 | 18 | 36 |
| EN4SD242410GY Buy › | EN4SD242410LG Buy › | 24 | 24 | 10 | 14 | 2 | Qtr. Turn | EP2424 | 22.2 | 22.2 | 2 | 18 | 45 |
| EN4SD243010GY Buy › | EN4SD243010LG Buy › | 24 | 30 | 10 | 14 | 2 | Qtr. Turn | EP2430 | 22.2 | 28.2 | 2 | 18 | 53 |
| EN4SD302010GY Buy › | EN4SD302010LG Buy › | 30 | 20 | 10 | 14 | 2 | Qtr. Turn | EP3020 | 28.2 | 18.2 | 3 | 12 | 47 |
| EN4SD302410GY Buy › | EN4SD302410LG Buy › | 30 | 24 | 10 | 14 | 2 | Qtr. Turn | EP3024 | 28.2 | 22.2 | 3 | 12 | 53 |
| EN4SD303010GY Buy › | EN4SD303010LG Buy › | 30 | 30 | 10 | 14 | 2 | Qtr. Turn | EP3030 | 28.2 | 28.2 | 3 | 12 | 75 |
| EN4SD362410GY Buy › | EN4SD362410LG Buy › | 36 | 24 | 10 | 14 | 2 | Qtr. Turn | EP3624 | 34.2 | 22.2 | 3 | 15 | 70 |
| EN4SD363010GY Buy › | EN4SD363010LG Buy › | 36 | 30 | 10 | 14 | 2 | Qtr. Turn | EP3630 | 34.2 | 28.2 | 3 | 15 | 84 |
| EN4SD363610GY Buy › | EN4SD363610LG Buy › | 36 | 36 | 10 | 14 | 2 | Qtr. Turn | EP3636 | 34.2 | 34.2 | 3 | 15 | 100 |
| EN4SD423010GY Buy › | EN4SD423010LG Buy › | 42 | 30 | 10 | 14 | 1 | 3-point | EP4230 | 40.2 | 28.2 | 4 | 12 | 107 |
| EN4SD423610GY Buy › | EN4SD423610LG Buy › | 42 | 36 | 10 | 14 | 1 | 3-point | EP4236 | 40.2 | 34.2 | 4 | 12 | 117 |
| EN4SD482410GY Buy › | EN4SD482410LG Buy › | 48 | 24 | 10 | 14 | 1 | 3-point | EP4824 | 46.2 | 22.2 | 4 | 14 | 95 |
| EN4SD483010GY Buy › | EN4SD483010LG Buy › | 48 | 30 | 10 | 14 | 1 | 3-point | EP4830 | 46.2 | 28.2 | 4 | 14 | 120 |
| EN4SD483610GY Buy › | EN4SD483610LG Buy › | 48 | 36 | 10 | 14 | 1 | 3-point | EP4836 | 46.2 | 34.2 | 4 | 14 | 125 |
| EN4SD603610GY Buy › | EN4SD603610LG Buy › | 60 | 36 | 10 | 14 | 1 | 3-point | EP6036 | 58.2 | 34.2 | 4 | 18 | 150 |
| EN4SD201612GY Buy › | EN4SD201612LG Buy › | 20 | 16 | 12 | 16 | 1 | Qtr Turn | EP2016 | 18.2 | 14.2 | 2 | 14 | 32 |
| EN4SD202012GY Buy › | EN4SD202012LG Buy › | 20 | 20 | 12 | 16 | 1 | Qtr Turn | EP2020 | 18.2 | 18.2 | 2 | 14 | 34 |
| EN4SD242012GY Buy › | EN4SD242012LG Buy › | 24 | 20 | 12 | 16 | 1 | Qtr Turn | EP2420 | 22.2 | 18.2 | 2 | 18 | 38 |
| EN4SD242412GY Buy › | EN4SD242412LG Buy › | 24 | 24 | 12 | 14 | 2 | Qtr Turn | EP2424 | 22.2 | 22.2 | 2 | 18 | 47 |
| EN4SD302412GY Buy › | EN4SD302412LG Buy › | 30 | 24 | 12 | 14 | 2 | Qtr Turn | EP3024 | 28.2 | 22.2 | 3 | 12 | 57 |
| EN4SD303012GY Buy › | EN4SD303012LG Buy › | 30 | 30 | 12 | 14 | 2 | Qtr Turn | EP3030 | 28.2 | 28.2 | 3 | 12 | 80 |
| EN4SD362412GY Buy › | EN4SD362412LG Buy › | 36 | 24 | 12 | 14 | 2 | Qtr Turn | EP3624 | 34.2 | 22.2 | 3 | 15 | 62 |
| EN4SD363012GY Buy › | EN4SD363012LG Buy › | 36 | 30 | 12 | 14 | 2 | Qtr Turn | EP3630 | 34.2 | 28.2 | 3 | 15 | 91 |
| EN4SD363612GY Buy › | EN4SD363612LG Buy › | 36 | 36 | 12 | 14 | 2 | Qtr Turn | EP3636 | 34.2 | 34.2 | 3 | 15 | 104 |
| EN4SD423012GY Buy › | EN4SD423012LG Buy › | 42 | 30 | 12 | 14 | 1 | 3-point | EP4230 | 40.2 | 28.2 | 4 | 12 | 111 |
| EN4SD423612GY Buy › | EN4SD423612LG Buy › | 42 | 36 | 12 | 14 | 1 | 3-point | EP4236 | 40.2 | 34.2 | 4 | 12 | 121 |
| EN4SD482412GY Buy › | EN4SD482412LG Buy › | 48 | 24 | 12 | 14 | 1 | 3-point | EP4824 | 46.2 | 22.2 | 4 | 14 | 98 |
| EN4SD483612GY Buy › | EN4SD483612LG Buy › | 48 | 36 | 12 | 14 | 1 | 3-point | EP4836 | 46.2 | 34.2 | 4 | 14 | 148 |
| EN4SD603612GY Buy › | EN4SD603612LG Buy › | 60 | 36 | 12 | 14 | 1 | 3-point | EP6036 | 58.2 | 34.2 | 4 | 18 | 165 |
| EN4SD723012GY Buy › | EN4SD723012LG Buy › | 72 | 30 | 12 | 14 | 2 | Qtr Turn, 3-point |
EP7230 | 70.2 | 28.2 | 5 | 16.5 | 190 |
| EN4SD723612GY Buy › | EN4SD723612LG Buy › | 72 | 36 | 12 | 14 | 2 | Qtr Turn, 3-point |
EP7236 | 70.2 | 34.2 | 5 | 16.5 | 195 |
| EN4SD242016GY Buy › | EN4SD242016LG Buy › | 24 | 20 | 16 | 16 | 1 | Qtr Turn | EP2420 | 22.2 | 18.2 | 2 | 18 | 52 |
| EN4SD242416GY Buy › | EN4SD242416LG Buy › | 24 | 24 | 16 | 14 | 2 | Qtr Turn | EP2424 | 22.2 | 22.2 | 2 | 18 | 66 |
| EN4SD302416GY Buy › | EN4SD302416LG Buy › | 30 | 24 | 16 | 14 | 2 | Qtr Turn | EP3024 | 28.2 | 22.2 | 3 | 12 | 85 |
| EN4SD363016GY Buy › | EN4SD363016LG Buy › | 36 | 30 | 16 | 14 | 2 | Qtr Turn | EP3630 | 34.2 | 28.2 | 3 | 15 | 102 |
| EN4SD423616GY Buy › | EN4SD423616LG Buy › | 42 | 36 | 16 | 14 | 1 | 3-point | EP4236 | 40.2 | 34.2 | 4 | 12 | 140 |
| EN4SD483616GY Buy › | EN4SD483616LG Buy › | 48 | 36 | 16 | 14 | 1 | 3-point | EP4836 | 46.2 | 34.2 | 4 | 14 | 148 |
| EN4SD603616GY Buy › | EN4SD603616LG Buy › | 60 | 36 | 16 | 14 | 1 | 3-point | EP6036 | 58.2 | 34.2 | 4 | 18 | 200 |
| EN4SD723016GY Buy › | EN4SD723016LG Buy › | 72 | 30 | 16 | 14 | 2 | Qtr Turn, 3-point |
EP7230 | 70.2 | 28.2 | 5 | 16.5 | 215 |
| EN4SD723616GY Buy › | EN4SD723616LG Buy › | 72 | 36 | 16 | 14 | 2 | Qtr Turn, 3-point |
EP7236 | 70.2 | 34.2 | 5 | 16.5 | 217 |
| EN4SD242420GY Buy › | EN4SD242420LG Buy › | 24 | 24 | 20 | 14 | 2 | Qtr Turn | EP2424 | 22.2 | 22.2 | 2 | 18 | 70 |
| EN4SD302420GY Buy › | EN4SD302420LG Buy › | 30 | 24 | 20 | 14 | 2 | Qtr Turn | EP3024 | 28.2 | 22.2 | 3 | 12 | 82 |
| EN4SD363020GY Buy › | EN4SD363020LG Buy › | 36 | 30 | 20 | 14 | 2 | Qtr Turn | EP3630 | 34.2 | 28.2 | 3 | 15 | 117 |
| EN4SD483620GY Buy › | EN4SD483620LG Buy › | 48 | 36 | 20 | 14 | 1 | 3-point | EP4836 | 46.2 | 34.2 | 4 | 14 | 165 |
| EN4SD603620GY Buy › | EN4SD603620LG Buy › | 60 | 36 | 20 | 14 | 1 | 3-point | EP6036 | 58.2 | 34.2 | 4 | 18 | 210 |
| EN4SD723020GY Buy › | EN4SD723020LG Buy › | 72 | 30 | 20 | 14 | 2 | Qtr Turn, 3-point |
EP7230 | 70.2 | 28.2 | 5 | 16.5 | 217 |
| EN4SD302424GY Buy › | EN4SD302424LG Buy › | 30 | 24 | 24 | 14 | 2 | Qtr Turn | EP3024 | 28.2 | 22.2 | 3 | 12 | 115 |
| EN4SD723024GY Buy › | EN4SD723024LG Buy › | 72 | 30 | 24 | 14 | 2 | Qtr Turn, 3-point |
EP7230 | 70.2 | 28.2 | 5 | 16.5 | 220 |
