1422 Series Two Door Wallmount Enclosures - NEMA 12
Continuous Hinge
Application
- Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- UL 508 Type 12
- CSA Type 12
- Complies with
- NEMA Type 12
- IEC 60529, IP54
Construction
- Enclosures are formed 12 or 14 gauge steel, as noted.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Body stiffeners are provided in enclosures 30” high or more for extra rigidity.
- Welded brackets provide for enclosure mounting.
- Gasketed overlapping doors eliminate the need for a center post.
- Continuously hinged doors may be removed by pulling the hinge pin.
- Doors are secured with a three point latch and operated with a key locking automotive type handle.
- Latch rods are equipped with rollers for easier door closing.
- Oil resistant gaskets are permanently secured.
- A removable 10 gauge inner panel is included in enclosures as noted.
- Smaller sizes include a 12 gauge inner panel.
- Collar studs are provided for mounting inner panels.
- A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
- A literature pocket is provided for the inside of the door.
Finish
- Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating on the outside, with white powder coating on the inside.
- Removable inner panel is finished in white powder coating.
Accessories

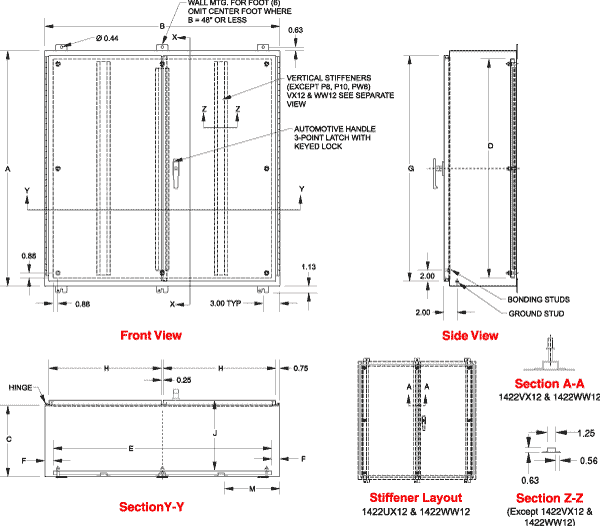

| Part No. | A | B | C | Body Gauge |
Panel Gauge |
Panel Size | F | G | H | J | Ship Wt. (lbs) |
|
| D | E | |||||||||||
| 1422P8 Buy › | 24.00 | 42.00 | 8.00 | 14 | 12 | 21 | 39 | 1.5 | 22.25 | 20.13 | 7.96 | 79 |
| 1422PW8 Buy › | 24.00 | 48.00 | 8.00 | 14 | 12 | 21 | 45 | 1.5 | 22.25 | 23.13 | 7.96 | 92 |
| 1422P10 Buy › | 24.00 | 42.00 | 10.00 | 14 | 12 | 21 | 39 | 1.5 | 22.25 | 20.13 | 9.96 | 101 |
| 1422R10 Buy › | 30.00 | 42.00 | 10.00 | 14 | 12 | 27 | 39 | 1.5 | 28.25 | 20.13 | 9.96 | 112 |
| 1422RW10 Buy › | 30.00 | 48.00 | 10.00 | 14 | 12 | 27 | 45 | 1.5 | 28.25 | 23.13 | 9.96 | 115 |
| 1422RX10 Buy › | 30.00 | 60.00 | 10.00 | 14 | 12 | 27 | 57 | 1.5 | 28.25 | 29.13 | 9.96 | 142 |
| 1422UV12 Buy › | 36.00 | 42.00 | 12.00 | 14 | 12 | 33 | 39 | 1.5 | 34.25 | 20.13 | 11.96 | 134 |
| 1422UW12 Buy › | 36.00 | 48.00 | 12.00 | 14 | 12 | 33 | 45 | 1.5 | 34.25 | 23.13 | 11.96 | 230 |
| 1422UX12 Buy › | 36.00 | 60.00 | 12.00 | 14 | 12 | 33 | 57 | 1.5 | 34.25 | 29.13 | 11.96 | 181 |
| 1422VV12 Buy › | 42.00 | 42.00 | 12.00 | 14 | 12 | 39 | 39 | 1.5 | 40.25 | 20.13 | 11.96 | 152 |
| 1422VW12 Buy › | 42.00 | 48.00 | 12.00 | 14 | 12 | 39 | 45 | 1.5 | 40.25 | 23.13 | 11.96 | 161 |
| 1422VX12 Buy › | 42.13 | 60.06 | 12.69 | 12 | 10 | 38 | 56 | 2.0 | 40.25 | 29.13 | 11.96 | 202 |
| 1422WW12 Buy › | 48.13 | 48.06 | 12.69 | 12 | 10 | 44 | 44 | 2.0 | 46.25 | 23.13 | 11.96 | 350 |
| When A= | M= |
| 42 | 9.88 |
| 48 | 11.38 |
| 60 | 14.38 |
