1414 PH Series Enclosures - NEMA 12, 13
Continuous Hinge, Clamped Cover
Application
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- UL 508 Type 12, 13
- CSA Type 12, 13
- Complies with
- NEMA Type 12 and 13
- JIC EGP-1-1967 unless marked¹
- IEC 60529, IP54
Construction
- Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Welded brackets provide for enclosure mounting.
- Continuously hinged cover is secured with stainless steel clamps and plated steel screws.
- Oil resistant gaskets are permanently secured.
- Models larger than 4" x 4" include a removable 14 gauge inner panel.
- Internal threaded weld studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Finish
- Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
- Removable inner panel is finished in white powder coating.
Accessories
| Part No. With Inner Panel |
Part No. Without Inner Panel |
Panel Size | Cover Dimensions |
Ship wt. with pnl |
Ship wt. w/out pnl |
||||||||||||||||

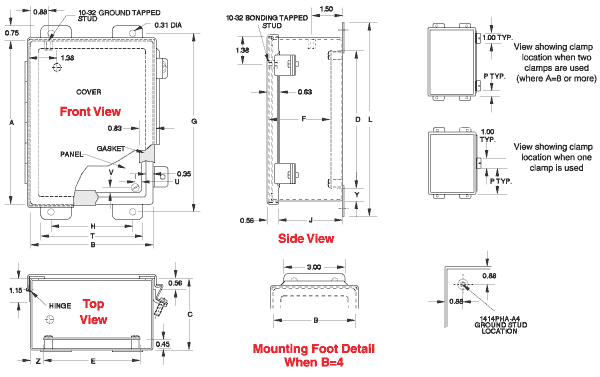

| A | B | C | D | E | F | G | H | J | L | P | T | U | V | Y | Z | ||||||
| - | 1414PHA¹ Buy › | 4 | 4 | 3 | - | - | - | 4.75 | 2 | 2.64 | 5.5 | 4.31 | 4.31 | 1.5 | 3 | - | - | - | - | - | 2 |
| 1414PHC¹ Buy › | 1414PHCLP¹ Buy › | 6 | 4 | 3 | 4.88 | 2.88 | 2.51 | 6.75 | 2 | 2.64 | 7.5 | 6.31 | 4.31 | 2.5 | 3 | .31 | .31 | .56 | .56 | 3 | 2 |
| 1414PHG Buy › | 1414PHGLP Buy › | 8 | 6 | 3.5 | 6.75 | 4.88 | 31 | 8.75 | 4 | 3.14 | 9.5 | 8.31 | 6.31 | 1 | 5 | .31 | .25 | .63 | .56 | 6 | 5 |
| 1414PHRG Buy › | 1414PHRGLP Buy › | 6 | 8 | 3.5 | 4.88 | 6.75 | 31 | 6.75 | 6 | 3.14 | 7.5 | 6.31 | 8.31 | 2.5 | 7 | .25 | .31 | .56 | .63 | 6 | 5 |
| - | 1414PHA4¹ Buy › | 4 | 4 | 4 | - | - | - | 4.75 | 2 | 3.64 | 5.5 | 4.31 | 4.31 | 1.5 | 3 | - | - | - | - | - | 3 |
| 1414PHC4¹ Buy › | 1414PHC4LP¹ Buy › | 6 | 4 | 4 | 4.88 | 2.88 | 3.51 | 6.75 | 2 | 3.64 | 7.5 | 6.31 | 4.31 | 2.5 | 3 | .31 | .31 | .56 | .56 | 4 | 3 |
| 1414PHE Buy › | 1414PHELP Buy › | 6 | 6 | 4 | 4.88 | 4.88 | 3.51 | 6.75 | 4 | 3.64 | 7.5 | 6.31 | 6.31 | 2.5 | 5 | .31 | .31 | .56 | .56 | 5 | 4 |
| 1414PHH4 Buy › | 1414PHH4LP Buy › | 8 | 8 | 4 | 6.75 | 6.88 | 3.51 | 8.75 | 6 | 3.64 | 9.5 | 8.31 | 8.31 | 1 | 7 | .31 | .25 | .63 | .56 | 8 | 7 |
| 1414PHI Buy › | 1414PHILP Buy › | 10 | 8 | 4 | 8.75 | 6.88 | 3.51 | 1.75 | 6 | 3.64 | 11.5 | 1.31 | 8.31 | 1 | 7 | .31 | .25 | .63 | .56 | 1 | 8 |
| 1414PHRI Buy › | 1414PHRILP Buy › | 8 | 10 | 4 | 6.88 | 8.75 | 3.51 | 8.75 | 8 | 3.64 | 9.5 | 8.31 | 1.31 | 1 | 9 | .25 | .31 | .56 | .63 | 1 | 8 |
| 1414PHKC4 Buy › | 1414PHKC4LP Buy › | 12 | 6 | 4 | 1.75 | 4.88 | 3.51 | 12.75 | 4 | 3.64 | 13.5 | 12.31 | 6.31 | 1 | 5 | .31 | .25 | .63 | .56 | 10 | 8 |
| 1414PHK Buy › | 1414PHKLP Buy › | 12 | 10 | 5 | 1.75 | 8.88 | 4.51 | 12.75 | 8 | 4.64 | 13.5 | 12.31 | 1.31 | 1 | 9 | .31 | .25 | .63 | .56 | 13 | 10 |
| 1414PHRK Buy › | 1414PHRKLP Buy › | 10 | 12 | 5 | 8.88 | 1.75 | 4.51 | 1.75 | 10 | 4.64 | 11.5 | 1.31 | 12.31 | 1 | 11 | .25 | .31 | .56 | .63 | 13 | 12 |
| 1414PHG6 Buy › | 1414PHG6LP Buy › | 8 | 6 | 6 | 6.75 | 4.88 | 5.51 | 8.75 | 4 | 5.64 | 9.5 | 8.31 | 6.31 | 1 | 5 | .31 | .25 | .63 | .56 | 8 | 7 |
| 1414PHI6 Buy › | 1414PHI6LP Buy › | 10 | 8 | 6 | 8.75 | 6.88 | 5.51 | 1.75 | 6 | 5.64 | 11.5 | 1.31 | 8.31 | 1 | 7 | .31 | .25 | .63 | .56 | 12 | 10 |
| 1414PHJ6 Buy › | 1414PHJ6LP Buy › | 10 | 10 | 6 | 8.75 | 8.88 | 5.51 | 1.75 | 8 | 5.64 | 11.5 | 1.31 | 1.31 | 1 | 9 | .31 | .25 | .63 | .56 | 14 | 12 |
| 1414PHL6 Buy › | 1414PHL6LP Buy › | 12 | 12 | 6 | 1.75 | 1.88 | 5.51 | 12.75 | 10 | 5.64 | 13.5 | 12.31 | 12.31 | 1 | 11 | .31 | .25 | .63 | .56 | 17 | 15 |
| 1414PHMH6 Buy › | 1414PHMH6LP Buy › | 14 | 8 | 6 | 12.75 | 6.88 | 5.51 | 14.75 | 6 | 5.64 | 15.5 | 14.31 | 8.31 | 1 | 7 | .31 | .25 | .63 | .56 | 12 | 10 |
| 1414PHM6 Buy › | 1414PHM6LP Buy › | 14 | 12 | 6 | 12.75 | 1.88 | 5.51 | 14.75 | 10 | 5.64 | 15.5 | 14.31 | 12.31 | 1 | 11 | .31 | .25 | .63 | .56 | 19 | 17 |
| 1414PHRM6 Buy › | 1414PHRM6LP Buy › | 12 | 14 | 6 | 1.88 | 12.75 | 5.51 | 12.75 | 12 | 5.64 | 13.5 | 12.31 | 14.31 | 1 | 13 | .25 | .31 | .56 | .63 | 19 | 17 |
| 1414PHN6 Buy › | 1414PHN6LP Buy › | 16 | 10 | 6 | 14.75 | 8.88 | 5.51 | 16.75 | 8 | 5.64 | 17.5 | 16.31 | 1.31 | 1 | 9 | .31 | .25 | .63 | .56 | 18 | 15 |
| 1414PHO6 Buy › | 1414PHO6LP Buy › | 16 | 14 | 6 | 14.75 | 12.88 | 5.51 | 16.75 | 12 | 5.64 | 17.5 | 16.31 | 14.31 | 1 | 13 | .31 | .25 | .63 | .56 | 23 | 21 |
| 1414PHRO6 Buy › | 1414PHRO6LP Buy › | 14 | 16 | 6 | 12.88 | 14.75 | 5.51 | 14.75 | 14 | 5.64 | 15.5 | 14.31 | 16.31 | 1 | 15 | .25 | .31 | .56 | .63 | 23 | 21 |
| 1414PHK8 Buy › | 1414PHK8LP Buy › | 12 | 10 | 8 | 1.75 | 8.88 | 7.51 | 12.75 | 8 | 7.64 | 13.5 | 12.31 | 1.31 | 1 | 9 | .31 | .25 | .63 | .56 | 18 | 15 |
| 1414PHM8 Buy › | 1414PHM8LP Buy › | 14 | 12 | 8 | 12.75 | 1.88 | 7.51 | 14.75 | 10 | 7.64 | 15.5 | 14.31 | 12.31 | 1 | 11 | .31 | .25 | .63 | .56 | 20 | 18 |
| 1414PHO8 Buy › | 1414PHO8LP Buy › | 16 | 14 | 8 | 14.75 | 12.88 | 7.51 | 16.75 | 12 | 7.64 | 17.5 | 16.31 | 14.31 | 1 | 13 | .31 | .25 | .63 | .56 | 25 | 22 |
| 1414PHO10 Buy › | 1414PHO10LP Buy › | 16 | 14 | 10 | 14.75 | 12.88 | 9.51 | 16.75 | 12 | 9.64 | 17.5 | 16.31 | 14.31 | 1 | 13 | .31 | .25 | .63 | .56 | 26 | 23 |
