Application

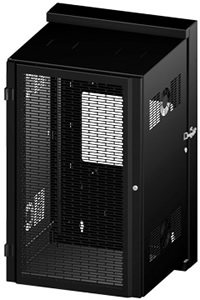

• The new Hammond Wall Mount (HWM) cabinet was designed with the technical professional in mind. The new design enables the cabinet to be installed in less time using fewer installers than similar cabinets of its size. Fabricated from heavy duty steel, the HWM is available in up to 32U and 31.7" overall depth and can support up to 275 lbs of equipment.
• The vented front door and side panels were specifically designed for high capacity servers, switches and power management devices. An optional clear glass or solid door is available for all sizes.


Features

• Available in three (3) depths and four (4) heights.
• Includes vented 65% perforated front door (optional door types available).
• Center section features:
• Heavy duty spring-hinge pin for easy installation and removal.
• Side panel that includes two (2) vents and fan grill.
• Rear section features:
• Top and side conduit knock-outs for cable entry.
• Generous cable management lances located on the rear section as well as on mounting rails.
• Mounting points for Outlet Strip (uses HWMPCLIP).
• Heavy duty keyhole for wall mounting.
• Large opening in rear for cable access.
• Front door and center section keyed the same (optional key available).


Specifications

• 14-gauge welded rear section; 16-gauge center section and doors.
• EIA compliant adjustable depth mounting rails.
• Includes one (1) pair of tapped (10-32) mounting rails.
• Recommended weight load tested for 275 lbs.
• Grounding lugs located on top and bottom of the door, center and rear sections.
• Rugged sand-textured black powder paint (reduced fingerprints and marks).

Accessories

• Power Bars
• Hardware
• Shelves
• Panels
• Cable Managers
