N1J Series Panel Enclosures
NEMA 1
Application
- Designed for indoor use to house controls, instruments and components not requiring oil-tight or dust-tight protection.
Standards
- UL-50 Type 1
- cUL-Type 1
- Complies with
- NEMA Type 1
- IEC 60529, IP20
Construction
- Formed and spot welded from 16 gauge steel.
- Formed steel covers close by use of slotted quarter turn latch.
- Full swing door using butt hinges.
- Through holes in back for wall mounting.
- Bonding stud is provided on the door and a grounding stud is provided on the box.
- Includes 14 gauge steel inner panel.
Finish
- Enclosure and cover are finished in ANSI 61 gray powder coating.
- Inner panel is finished in white powder coating

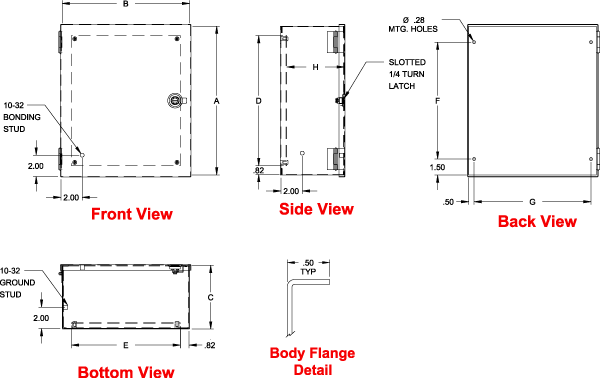

| Part No. | Overall Dimensions | Panel Size | Centers | Ship Wt. lbs. |
|||||
| A | B | C | D | E | F | G | H | ||
| N1J664 Buy › | 6 | 6 | 4 | 4.25 | 4.25 | 3 | 5 | 3.43 | 5 |
| N1J864 Buy › | 8 | 6 | 4 | 6.25 | 4.25 | 5 | 5 | 3.43 | 6 |
| N1J884 Buy › | 8 | 8 | 4 | 6.25 | 6.25 | 5 | 7 | 3.43 | 7 |
| N1J1084 Buy › | 10 | 8 | 4 | 8.25 | 6.25 | 7 | 7 | 3.43 | 8 |
| N1J10104 Buy › | 10 | 10 | 4 | 8.25 | 8.25 | 7 | 9 | 3.43 | 9 |
| N1J12104 Buy › | 12 | 10 | 4 | 10.25 | 8.25 | 9 | 9 | 3.43 | 11 |
| N1J12124 Buy › | 12 | 12 | 4 | 10.25 | 10.25 | 9 | 11 | 3.43 | 13 |
| N1J14124 Buy › | 14 | 12 | 4 | 12.25 | 10.25 | 11 | 11 | 3.43 | 14 |
| N1J886 Buy › | 8 | 8 | 6 | 6.25 | 6.25 | 5 | 7 | 5.43 | 7 |
| N1J1086 Buy › | 10 | 8 | 6 | 8.25 | 6.25 | 7 | 7 | 5.43 | 10 |
| N1J10106 Buy › | 10 | 10 | 6 | 8.25 | 8.25 | 7 | 9 | 5.43 | 11 |
| N1J12106 Buy › | 12 | 10 | 6 | 10.25 | 8.25 | 9 | 9 | 5.43 | 12 |
| N1J12126 Buy › | 12 | 12 | 6 | 10.25 | 10.25 | 9 | 11 | 5.43 | 15 |
| N1J14126 Buy › | 14 | 12 | 6 | 12.25 | 10.25 | 11 | 11 | 5.43 | 16 |
| N1J16126 Buy › | 16 | 12 | 6 | 14.25 | 10.25 | 13 | 11 | 5.43 | 16 |
| N1J20126 Buy › | 20 | 12 | 6 | 18.25 | 10.25 | 17 | 11 | 5.43 | 22 |
| N1J12128 Buy › | 12 | 12 | 8 | 10.25 | 10.25 | 9 | 11 | 7.43 | 17 |
| N1J14128 Buy › | 14 | 12 | 8 | 12.25 | 10.25 | 11 | 11 | 7.43 | 18 |
