Medium Hinged Cover Enclosures without Knockouts
NEMA 3R
Application
- Designed for use as a wiring/junction box.
- Provides protection against rain, sleet, snow and dripping water.
Standards
- UL-50 Type 3R
- CSA Type 3R
- Complies with
- NEMA Type 3R
- IEC 60529, IP20
Construction
- Formed and spot welded from 16 or 14 gauge galvanized steel.
- Drip shield top and seam-free sides, front and back.
- Stainless steel continuous hinge.
- Cover fastened with captive plated screws.
- Padlocking hasp.
- Collar studs provided for mounting optional panels.
- External mounting feet.
- Oil resistant gaskets are permanently secured.
Finish
- Enclosure and cover are finished inside and out in ANSI 61 gray powder coating.
| Part No. | Optional Panel Part Number |
Panel Size | Mounting | Overall | Shipping Wt. lbs |
|||||

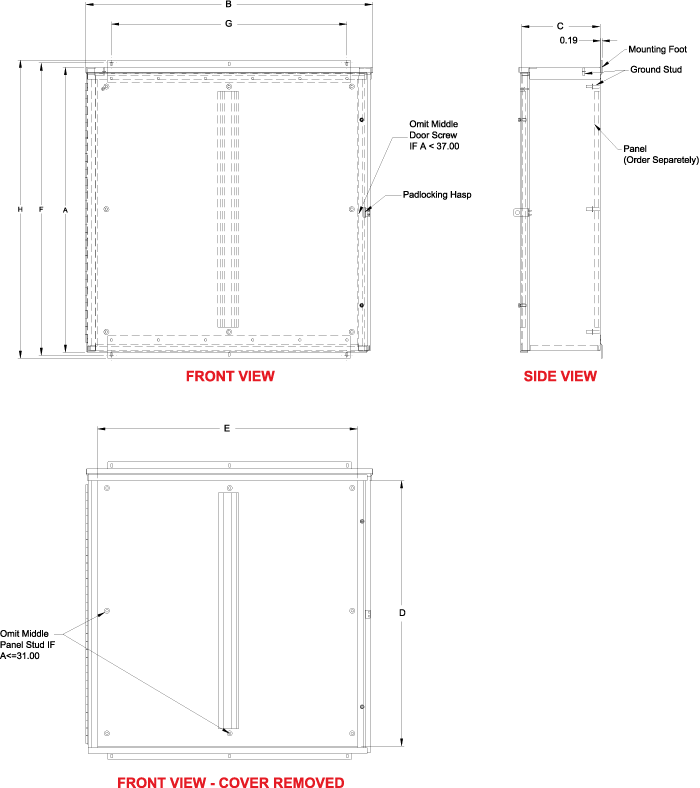

| A | B | C | D | E | F | G | H | |||
| C3R16126HCR Buy › | 16 | 12 | 6 | 13.00 | 9.00 | 17.00 | 5.00 | 18.00 | 17 | |
| C3R16166HCR Buy › | 16 | 16 | 6 | 13.00 | 13.00 | 17.00 | 13.00 | 18.00 | 18 | |
| C3R18186HCR Buy › | 18 | 18 | 6 | 15.00 | 15.00 | 19.00 | 13.00 | 20.00 | 20 | |
| C3R20166HCR Buy › | 20 | 16 | 6 | 17.00 | 13.00 | 21.00 | 13.00 | 22.00 | 25 | |
| C3R20208HCR Buy › | 20 | 20 | 8 | 17.00 | 17.00 | 21.00 | 13.00 | 22.00 | 38 | |
| C3R24208HCR Buy › | 24 | 20 | 8 | 21.00 | 17.00 | 25.00 | 13.00 | 26.00 | 41 | |
| C3R24248HCR Buy › | 24 | 24 | 8 | 21.00 | 21.00 | 25.00 | 13.00 | 26.00 | 53 | |
| C3R30248HCR Buy › | 30 | 24 | 8 | 27.00 | 21.00 | 31.00 | 13.00 | 32.00 | 62 | |
| C3R30308HCR Buy › | 30 | 30 | 8 | 27.00 | 27.00 | 31.00 | 27.00 | 32.00 | 64 | |
| C3R181810HCR Buy › | 18 | 18 | 10 | 15.00 | 15.00 | 19.00 | 13.00 | 20.00 | 22 | |
| C3R242410HCR Buy › | 24 | 24 | 10 | 21.00 | 21.00 | 25.00 | 13.00 | 26.00 | 59 | |
| C3R302410HCR Buy › | 30 | 24 | 10 | 27.00 | 21.00 | 31.00 | 13.00 | 32.00 | 71 | |
| C3R363610HCR Buy › | 36 | 36 | 10 | 33.00 | 33.00 | 37.00 | 30.00 | 38.00 | 82 | |
| C3R303012HCR Buy › | 30 | 30 | 12 | 27.00 | 27.00 | 31.00 | 27.00 | 32.00 | 102 | |
| C3R362412HCR Buy › | 36 | 24 | 12 | 33.00 | 21.00 | 37.00 | 13.00 | 38.00 | 102 | |
| C3R363012HCR Buy › | 36 | 30 | 12 | 33.00 | 27.00 | 37.00 | 27.00 | 38.00 | 103 | |
| C3R423012HCR Buy › | 42 | 30 | 12 | 39.00 | 27.00 | 43.00 | 27.00 | 44.00 | 113 | |
| C3R363612HCR Buy › | 36 | 36 | 12 | 33.00 | 33.00 | 37.00 | 27.00 | 38.00 | 119 | |
| C3R423612HCR Buy › | 42 | 36 | 12 | 39.00 | 33.00 | 43.00 | 27.00 | 44.00 | 131 | |
| C3R483612HCR Buy › | 48 | 36 | 12 | 45.00 | 33.00 | 49.00 | 27.00 | 50.00 | 153 | |
| C3R603612HCR Buy › | 60 | 36 | 12 | 57.00 | 33.00 | 61.00 | 27.00 | 62.00 | 176 | |
| C3R303016HCR Buy › | 30 | 30 | 16 | 27.00 | 27.00 | 31.00 | 27.00 | 32.00 | 105 | |
| C3R483616HCR Buy › | 48 | 36 | 16 | 45.00 | 33.00 | 49.00 | 27.00 | 50.00 | 155 | |
