Hydro-Quebec Metering Cabinets
NEMA 1
Application
- Designed for indoor housing of metering transformers per Hydro Quebec specifications.
Standards
- CSA Approved
- Complies with
Construction
- Formed and spot welded from 14 or 16 gauge steel.
- Spot welded construction and formed edges.
- Removable inner panels.
- Hinged covers.
- 2 cutouts in top of each cabinet with metering plates included.
Finish
- Enclosure and cover are finished in ANSI 61 gray inside and out.

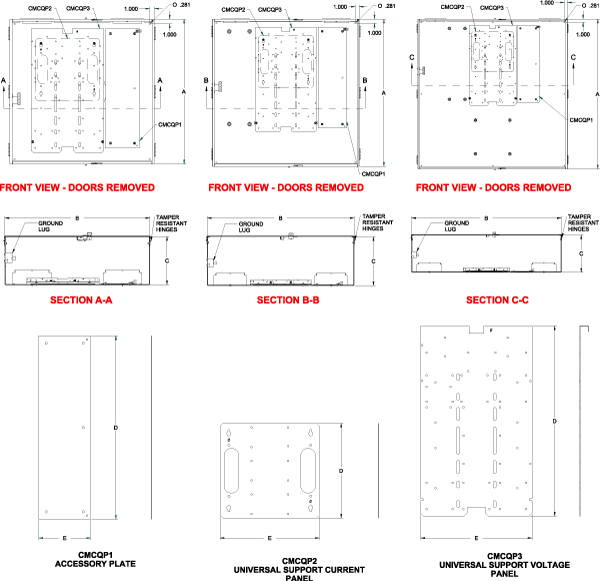

| Cabinet Part No. |
Dimensions |
Gauge |
| A |
B |
C |
| CMCQ303010 |
30 |
30 |
10 |
16 |
| CMCQ363612 |
36 |
36 |
12 |
14 |
| CMCQ484812 |
48 |
48 |
12 |
14 |
| Panel Part No. |
Description |
Dimensions |
| D |
E |
| CMCQP1 |
Accessory Plate |
24.685 |
7.000 |
| CMCQP2 |
Universal Support Current Panel |
12.756 |
13.386 |
| CMCQP3 |
Universal Support Voltage Panel |
25.591 |
15.006 |
| Panel Selection Guide |
Panel supplied with enclosure |
Panel capacity per enclosure |
| CMCQP1 |
CMCQP2 |
CMCQP3 |
CMCQP1 |
CMCQP2 |
CMCQP3 |
| CMCQ303010 |
1 |
1 |
1 |
1 |
1 |
1 |
| CMCQ363612 |
1 |
1 |
1 |
2 |
1 |
1 |
| CMCQ484812 |
1 |
1 |
1 |
2 |
2 |
1 |
