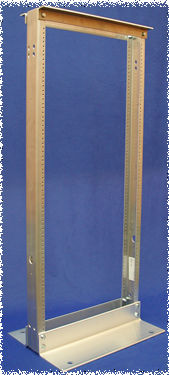

Open Frame Aluminum Knockdown Racks
RRAL Series
Features
- Lightweight aluminum
- Shipped knocked down
- Choice of 19" or 23" panel width
- Easy assembly - only 12 bolts
- Front & rear flange is drilled and tapped (12-24) universal EIA (5/8 - 5/8 - 1/2 inch) spacing
- Includes quantity 30, 12-24 x 5/8" pan head screws
- For use as a single, free standing unit for support of standard 19” (or 23") rack mount devices
- Compatible with most other manufacturers for joining
- Recommended maximum weight (RRAL2384 tested) - 840 pounds
- Base can be lagged to floor or will accept casters & dollies (Part Nos. RRLDCASTER, RRLPDOL or RRHDDOL)
- Available either unfinished or black textured powder paint
|
19" Panel Width Part No. |
Color | Paint Texture | Panel Width (in.) | Panel Height | Overall Dimensions (in.) | |||
| Inches | Units | Width | Height | |||||
| RRAL1948 Buy › RRAL1948BK Buy › | Unfinished Black |
N/A Textured |
19 | 42 | 24 | 20 | 48 | |
| RRAL1972 Buy › RRAL1972BK Buy › | Unfinished Black |
N/A Textured |
19 | 66.5 | 38 | 20 | 72 | |
| RRAL1984 Buy › RRAL1984BK Buy › | Unfinished Black |
N/A Textured |
19 | 78.75 | 45 | 20 | 84 | |
| 23" Panel Width Part No. |
Color | Paint Texture | Panel Width (in.) | Panel Height | Overall Dimensions (in.) | |||
| Inches | Units | Width | Height | |||||
| RRAL2348 Buy › RRAL2348BK Buy › | Unfinished Black |
N/A Textured |
23 | 42 | 42 | 24 | 48 | |
| RRAL2372 Buy › RRAL2372BK Buy › | Unfinished Black |
N/A Textured |
23 | 66.5 | 66.5 | 24 | 72 | |
| RRAL2384 Buy › RRAL2384BK Buy › | Unfinished Black |
N/A Textured |
23 | 78.75 | 78.75 | 24 | 84 | |
| Vertical Cable Organizers Part No. |
Use | Use With |
| RRCMS48 Buy › | Single Side | 48" |
| RRCMS72 Buy › | Single Side | 72" |
| RRCMS84 Buy › | Single Side | 84" |
| RRCMD84 Buy › | Single Side (Front & Rear) | 84" |
| Vertical Joining Kit Part No. |
Description |
| RRALJK | Joining Kit |
