1564 Series - Sloping Consoles
Consoles
Features
- Heavy duty, 14 gauge steel frame - welded console frame
- Standard 19” panel width (22.56” overall)
- Choice of two depths 24.5”, 31.5” usable depth
- Unit is shipped as welded frame with 4 upper black, combination rails, 4 lower black combination rails and 4 levelling feet
- Finished in textured powder paint

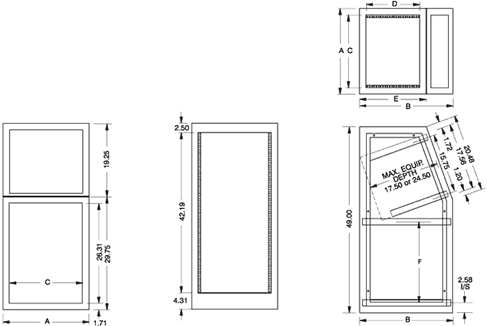

| Part No. | Color | Paint Texture | A | B | C | D | E | F |
| 1564A2BK1 1564A2CG1 |
Black Beige |
Textured Textured |
22.56 | 24.5 | 19.06 | 14 | 17.5 | 21.31 |
| 1564B2BK1 1564B2CG1 |
Black Beige |
Textured Textured |
22.56 | 31.5 | 19.06 | 21 | 24.5 | 19.5 |
| Accessories Part No. |
Description |
| 1425P Buy › | Casters (Qty. 4) |
