Application

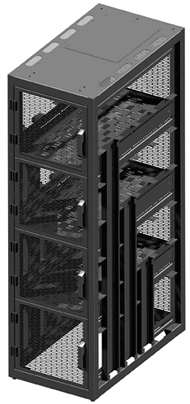

• Hammond’s Co-location Rack Cabinet features four (4) different bay configurations. Whether you are leasing the space or want to restrict access to sections of your cabinet, the Hammond CL Series is loaded with innovative features.


Features

• One single frame allows multiple bay configurations. Mounting space includes:
  • 1-Bay = 44U, 2-Bay = 21U, 3-Bay = 14U, 4-Bay = 10U
• Standard available configurations available in 36” and 42” depths.
• Vented shelves include rear removable panels for vertical PDU installations.
• Front and Rear Perforated Doors with 65% air flow.
• Doors include 4-pin combination lock with key override.
• Vertical Cable Managers can be installed either top or bottom. Designed to accommodate sliding rail mount kit on servers.
• Cabinet top includes removable top panel and provisions for containment system and cable trough accessories.


Specifications

• 14-gauge welded steel frame; 16-gauge doors and side panel.
• Adjustable depth EIA-Compliant Adjustable depth mounting rails.
• Available as Square Hole or Tapped (10-32) mounting rail.
• Recommended maximum weight load tested for 1,800 lbs.
• Rugged textured black powder paint

Additional Accessories

• Third set of rails can easily be added with either 10-32 taps or square holes.
• Security upgrade kit ensures entire cabinet is tamper-proof.
• Bay upgrade kit divides a single bay into a 2, 3 or 4 bay cabinet.
• Right-hand door hinge kit.

Accessories

• Aluminum rack panels
• Steel rack panels
• Formed steel rack panels
• Ventilated & Access Panels
• Cable Organizing
• Shelves - Panel Mount
• Keyboard Shelves & Drawers
• Rack mount power bars
• Cooling Panels
• Blowers
• Fan Trays
• Mounting hardware
