"Contempra 2" Welded Rack Cabinets
C2RR Series
Features
- Heavy duty - welded rack - 1,500 lb (682 kg.) even load rating
- Standard 19” panel width - 23” (584 mm) overall
- Choice of two stock depths:
- usable depth of 21.63" (549 mm) - 23.63” (600 mm) overall
- usable depth of 29.50" (749 mm) - 31.50" (800 mm) overall
- STOCKED unit is shipped complete (NO ASSEMBLY REQUIRED) with:
- A welded rack frame
- A pair of removable side panels (with 1/4 turn latches)
- Four (4) infinitely adjustable - combination rack mount rails (Full EIA hole centers - 5/8 - 5/8 - 1/2 inch spacing)
- One (1) solid flush mount door
- Solid top
- Four (4) leveling feet
- Heavy duty: 14 gauge welded steel frame, 16 gauge side panels
- Rails are made of 10 gauge zinc plated steel
- Recommended maximum weight (C2F247836 tested) - 1,500 pounds (682 kg.)
- Finished in a rugged, textured powder paint finish
| 23.63" Deep Part No. |

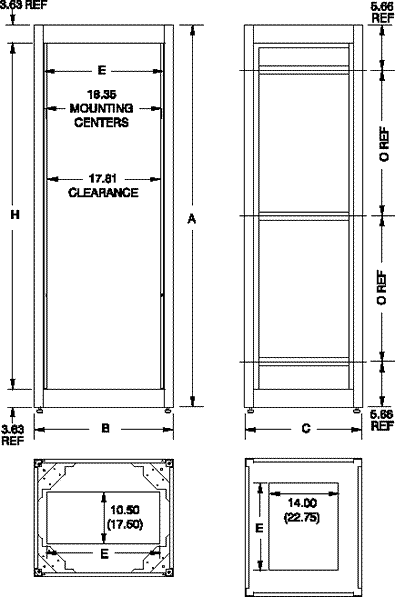

Color | Panel Height | Overall Dimensions (In.) | Weight (lbs.) |
|||
| Inches | Units | Height | Depth | Panel Opening | |||
| C2RR194223BK1 C2RR194223LG1 | Black Light Gray |
42 | 24 | 49.31 | 23.63 | 42.06 | 170 |
| C2RR196323BK1 C2RR196323LG1 | Black Light Gray |
63 | 36 | 70.31 | 23.63 | 63.06 | 218 |
| C2RR197023BK1 C2RR197023LG1 | Black Light Gray |
70 | 40 | 77.31 | 23.63 | 70.06 | 230 |
| C2RR197823BK1 C2RR197823LG1 | Black Light Gray |
78.75 | 45 | 86.06 | 23.63 | 78.81 | 254 |
| 31.5" Deep Part No. |
Color | Panel Height | Overall Dimensions (In.) | Weight (lbs.) |
|||
| Inches | Units | Height | Depth | Panel Opening | |||
| C2RR194231BK1 C2RR194231LG1 | Black Light Gray |
42 | 24 | 49.31 | 31.5 | 42.06 | 194 |
| C2RR196331BK1 C2RR196331LG1 | Black Light Gray |
63 | 36 | 70.31 | 31.5 | 63.06 | 250 |
| C2RR197031BK1 C2RR197031LG1 | Black Light Gray |
70 | 40 | 77.31 | 31.5 | 70.06 | 268 |
| C2RR197831BK1 C2RR197831LG1 | Black Light Gray |
78.75 | 45 | 86.06 | 31.5 | 78.81 | 290 |
| Casters Part No. |
Capacity | Wheel Diameter | Height Added |
| 1425B | 360 lbs. | 3" | 0.75" |
| 1425BM | 700 lbs. | 3" | 0.75" |
| 1425BH | 1050 lbs. | 3" | 0.75" |
