Tara Plus Suspension System

Quick Links:

Suspension Tube»
Coupling»
Tilt Coupling»
Elbow Coupling»
Tilt Elbow Coupling»
Fixed Elbow 48»
Fixed Elbow 70»
Rotating Elbow»
Base 48»
Base 70»
Rotating Base 70»
Socket Joint»
Wall Joint»
Vertical Wall Joint»
Intermediate Joint»

Suspension Tube

Part No.	Type	Outside (mm)	Inside (mm)	Tolerance	Length		Ship Weight (lbs.)
Part No.	Type	Outside (mm)	Inside (mm)	Tolerance	(Metres)	(Feet)	Ship Weight (lbs.)
R144-301-000	Round	48	42	±0.25	1	3.28	10
R144-321-000	Round	70	62	±0.25	1	3.28	25
R144-321-500	Round	70	62	±0.25	1.5	4.92	38
R144-311-000	Rectangular	60 x 40	54 x 34	±0.50	1	3.28	13
R144-311-500	Rectangular	60 x 40	54 x 34	±0.50	1.5	4.92	26

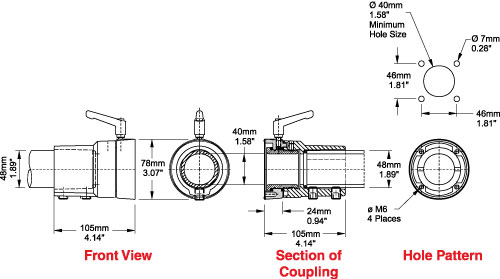

Coupling
- Attaches to enclosure.
- Accepts 48mm round tube. perpendicular to enclosure top/bottom.
- Die-cast Aluminum G Al Si 12.
- Adjustable torque resistance.
- Rotates 300°.
- Part No. R149-025-000

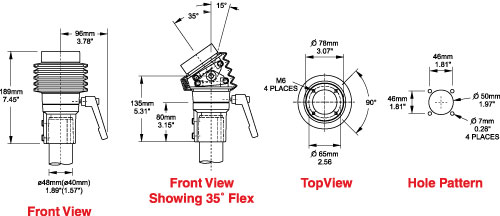

Tilt Coupling
- Attaches to enclosure.
- Accepts 48mm round tube perpendicular to enclosure top/bottom.
- Die-cast Aluminum G Al Si 12.
- Rotates 300°.
- Features an adjustable tilt mechanism up to 35°.
- Part No. R149-025-001

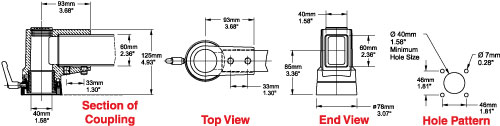

Elbow Coupling
- Attaches to enclosure.
- Accepts 60x40mm rectangular tube parallel to enclosure top/bottom.
- Adjustable torque resistance.
- Die-cast Aluminum G Al Si 12.
- Rotates 300°.
- Accessible from the top.
- Part No. R149-035-000

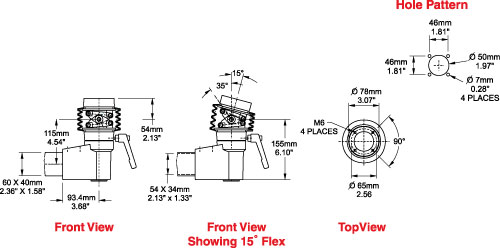

Tilt Elbow Coupling
- Attaches to enclosure.
- Accepts 60x40mm rectangular tube parallel to enclosure top/bottom.
- Die-cast Aluminum G Al Si 12.
- Rotates 300°.
- Features an adjustable tilt mechanism up to 35°.
- Part No. R149-035-001

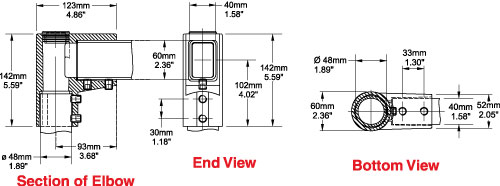

Fixed Elbow 48
- For use with 48mm round tube and 60x40mm rectangular tube.
- Vertical 48mm tube connection for use with Couplings only (not Base 48).
- Die-cast Aluminum G Al Si 12.
- Large cover opening for easier cable pull through.
- No rotation.
- Accessible from the top.
- Part No. R149-020-000

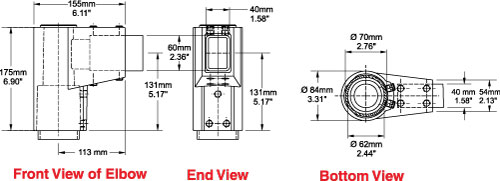

Fixed Elbow 70
- For use with 70mm round tube and 60x40mm rectangular tube.
- Die-cast Aluminum G Al Si 12.
- No rotation.
- Accessible from the top.
- Part No. R149-020-001

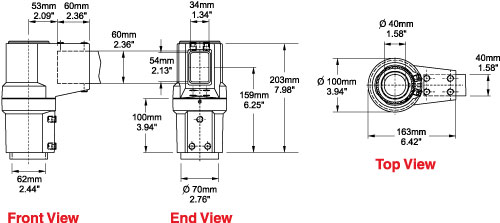

Rotating Elbow
- For use with 70mm round tube and 60x40mm rectangular tube.
- Die-cast Aluminum G Al Si 12.
- Rotates 300°.
- Accessible from the top.
- Part No. R149-040-000

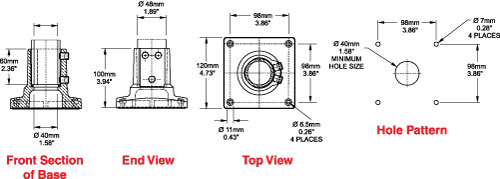

Base 48
- For use with 48mm round tube.
- Not for use with any horizontal configurations.
- Compatible with tube up or tube down configurations.
- Die-cast Aluminum G Al Si 12.
- No rotation.
- Part No. R149-030-000

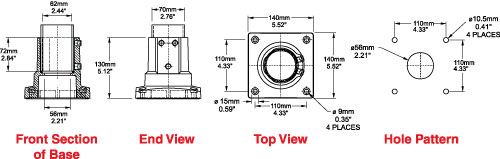

Base 70
- For use with 70mm round tube.
- Compatible with all vertical and horizontal configurations.
- Compatible with tube up or tube down configurations.
- Die-cast Aluminum G Al Si 12.
- No rotation.
- Part No. R149-030-001

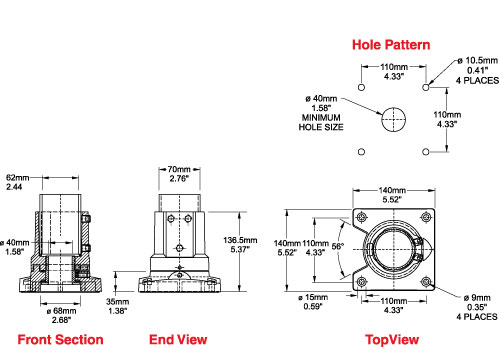

Rotating Base 70
- For use with 70 mm tube.
- Compatible with all vertical and horizontal configurations.
- Compatible with tube up or tube down configurations.
- Die-cast Aluminum G Al Si 12.
- Rotates 300°.
- Integrated movement stop.
- Service free bearings.
- Part No. R149-005-001

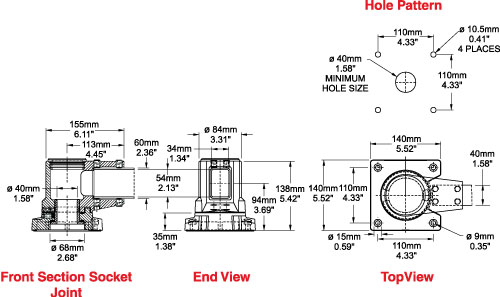

Socket Joint
- Accepts 60x40mm rectangular tube parallel to its mounting surface.
- Die-cast Aluminum G Al Si 12.
- Integrated movement stop.
- Service free bearings.
- Rotates 300°.
- Adjustment screws (red screws).
- Accessible from the top.
- Part No. R149-005-000

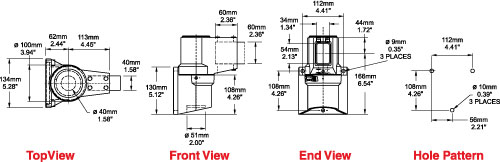

Wall Joint
- Accepts 60x40mm rectangular tube perpendicular to its mounting surface.
- Die-cast Aluminum G Al Si 12.
- Rotates 186 °.
- Accessible from the top.
- Part No. R149-010-000

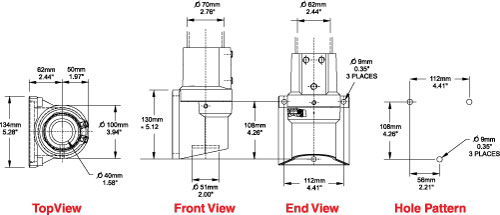

Vertical Wall Joint
- Accepts 70mm tube parallel to its mounting surface.
- Die-cast Aluminum G Al Si 12.
- Rotates 316 °.
- Part No. R149-010-001

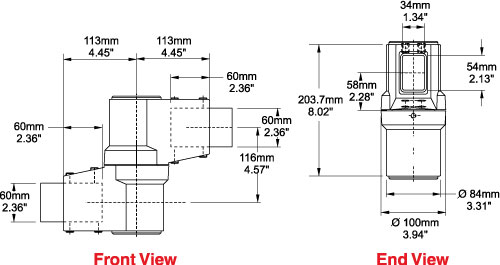

Intermediate Joint
- Accepts 60x40mm rectangular tube.
- Die-cast Aluminum G Al Si 12.
- Integrated movement stop.
- One piece bellow.
- Rotates 300°.
- Part No. R149-015-000
