Polycarbonate Modular Enclosures - NEMA 4, 4X
1554 Series - Pushbutton Lift-Off Cover Enclosures, 22mm and 30.5mm
Standards
- IP66
- NEMA 4, 4X, 12 & 13
- UL94 5V
Construction
- Electronic instrument enclosures, designed for mounting printed circuit boards or DIN rail mounted components.
- The polycarbonate material carries a UL flammability rating of UL94 5V and is suitable for outdoor use.
- Lid and mounting holes are located outside of the gasket seal.
- Lid is secured with self captivating M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly).
- Heavy duty 16 gauge galvanized steel panels available (see chart)
- All stainless steel hardware to avoid corrosion caused by dissimilar metals.
- Gasket is factory poured using high temperature U.L. listed - silicone rubber gasket material.
- Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water.
- Internal DIN rail mounting tabs.
- Threaded (M3) integral brass inserts & standoffs designed for M3.5 or #6 self tapping screws for P.C. board or inner panel mounting in all but the smallest size.
- Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size
Finish
- Color is light gray (RAL 7035)
Optional Inner Panel
- Heavy duty panels for mounting components
- Galvanized 16 ga. steel.
- Includes mounting hardware.
| Part No. | # of Holes |
Overall Depth |
22 mm | 30.5 mm | Optional Inner Panel Part No. |

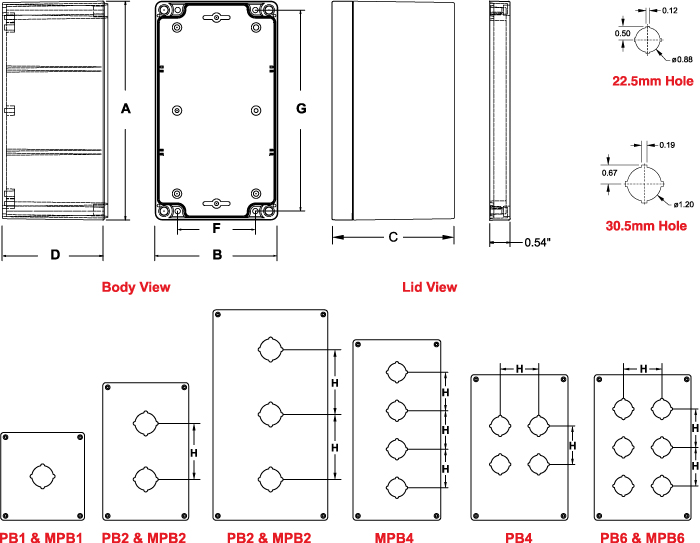

Dimensions | |||||||||
| 22 mm | 30.5 mm | Units | A | B | C | D | F | G | H | H | Units | Length | Width | ||
| 1554MPB1 | 1554PB1 | 1 | inch | 3.5 | 3.5 | 2.4 | 1.77 | 2.24 | 2.24 | Center | Center | 1554EPL |
inch | 3.1 | 3.1 |
| mm | 90 | 90 | 60 | 45 | 57 | 57 | Center | Center | mm | 79 | 79 | ||||
| 1554MPB2 | 1554PB2 | 2 | inch | 6.3 | 3.5 | 2.4 | 1.77 | 2.24 | 5.79 | 1.89 | 2.52 | 1554JPL |
inch | 5.8 | 3 |
| mm | 160 | 90 | 60 | 45 | 57 | 147 | 48 | 64 | mm | 147 | 76 | ||||
| 1554MPB3 | 1554PB3 | 3 | inch | 7.9 | 4.7 | 3.5 | 2.95 | 3.43 | 7.37 | 1.89 | 2.52 | 1554UPL |
inch | 7.6 | 4.2 |
| mm | 200 | 120 | 90 | 75 | 87 | 187 | 48 | 64 | mm | 193 | 107 | ||||
| 1554MPB4 | 1554PB4 | 4 | inch | 7.9 | 4.7 | 3.5 | 2.95 | 3.43 | 7.37 | 1.89 | 2.52 | 1554UPL |
inch | 7.6 | 4.2 |
| mm | 200 | 120 | 90 | 75 | 87 | 187 | 48 | 64 | mm | 193 | 107 | ||||
| 1554MPB6 | 1554PB6 | 6 | inch | 9.5 | 6.3 | 3.5 | 2.95 | 5 | 8.93 | 1.89 | 2.52 | 1554VPL |
inch | 9.1 | 5.7 |
| mm | 240 | 160 | 90 | 75 | 127 | 227 | 48 | 64 | mm | 231 | 145 | ||||
