1436/1438 Series Junction Boxes - NEMA 12, 13
Lift-Off, Screw Cover
Application
- Designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures.
- Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- UL 508 Type 12 and 13
- CSA Type 12 and 13
- Complies with
- NEMA Type 12 and 13
- IEC 60529, IP54
Construction
- Formed from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Welded brackets provide for enclosure mounting.
- Lift off cover is secured with captive, plated steel screws, and supported on internal hinges except as noted on charts at bottom and right.
- Cover screws fasten into threaded, sealed wells.
- Oil resistant gaskets are permanently secured.
- A grounding stud is provided in the enclosure.
Finish
- Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.

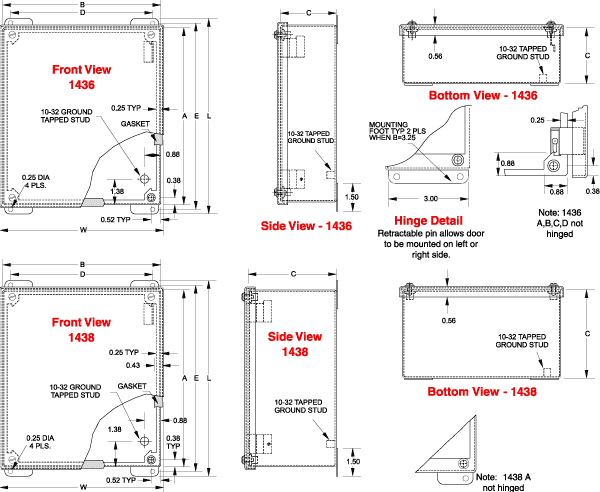

| Standard Depth Series (1436) | Centers | Overall Dimensions | Ship Wt. lbs |
|||||
| Part No. | A | B | C | D | E | L | W | |
| 1436A¹ Buy › | 3.50 | 3.25 | 2.75 | 2.38 | 4.00 | 4.50 | 3.56 | 2 |
| 1436B¹ Buy › | 5.75 | 3.25 | 2.75 | 2.38 | 6.25 | 6.75 | 3.56 | 2 |
| 1436C¹ Buy › | 8.00 | 3.25 | 2.75 | 2.38 | 8.50 | 9.00 | 3.56 | 3 |
| 1436D¹ Buy › | 10.25 | 3.25 | 2.75 | 2.38 | 10.75 | 11.25 | 3.56 | 4 |
| 1436F Buy › | 7.25 | 6.25 | 3.00 | 5.38 | 7.75 | 8.25 | 6.56 | 5 |
| 1436H Buy › | 9.50 | 6.25 | 3.00 | 5.38 | 10.00 | 10.50 | 6.56 | 5 |
| 1436K Buy › | 9.50 | 8.50 | 3.00 | 7.63 | 10.00 | 10.50 | 8.81 | 7 |
| 1436O Buy › | 11.75 | 8.50 | 3.00 | 7.63 | 12.25 | 12.75 | 8.81 | 8 |
| 1436S Buy › | 11.75 | 10.75 | 3.00 | 9.88 | 12.25 | 12.75 | 11.06 | 9 |
| 1436V Buy › | 14.00 | 10.75 | 3.00 | 9.88 | 14.50 | 15.00 | 11.06 | 11 |
| 1436X Discontinued · call for options › | 14.00 | 13.00 | 3.00 | 12.13 | 14.50 | 15.00 | 13.31 | 12 |
| 1436-30 | 16.25 | 13.00 | 3.00 | 12.13 | 16.75 | 17.25 | 13.31 | 14 |
| 1436-36 | 16.25 | 15.25 | 3.00 | 14.38 | 16.75 | 17.25 | 15.56 | 16 |
| 1436-42 | 18.50 | 15.25 | 3.00 | 14.38 | 19.00 | 19.50 | 15.56 | 18 |
| ¹ Not Hinged | ||||||||
| Extra Deep Series (1438) | Centers | Overall Dimensions | Ship Wt. lbs |
|||||
| Part No. | A | B | C | D | E | L | W | |
| 1438A¹ Buy › | 4.00 | 4.00 | 4.75 | 3.13 | 4.50 | 5.00 | 4.31 | 3.00 |
| 1438B Buy › | 6.00 | 4.00 | 4.75 | 3.13 | 6.50 | 7.00 | 4.31 | 4.00 |
| 1438C Buy › | 8.00 | 4.00 | 4.75 | 3.13 | 8.50 | 9.00 | 4.31 | 5.00 |
| 1438D Buy › | 10.00 | 4.00 | 4.75 | 3.13 | 10.50 | 11.00 | 4.31 | 5.00 |
| 1438F Buy › | 7.25 | 6.25 | 4.75 | 5.38 | 7.75 | 8.25 | 6.56 | 5.00 |
| 1438H Buy › | 9.50 | 6.25 | 4.75 | 5.38 | 10.00 | 10.50 | 6.56 | 5.00 |
| 1438K Buy › | 9.50 | 8.50 | 4.75 | 7.63 | 10.00 | 10.50 | 8.81 | 7.00 |
| 1438O Buy › | 11.75 | 8.50 | 4.75 | 7.63 | 12.25 | 12.75 | 8.81 | 8.00 |
| 1438S Buy › | 11.75 | 10.75 | 4.75 | 9.88 | 12.25 | 12.75 | 11.06 | 9.00 |
| 1438V Buy › | 14.00 | 10.75 | 4.75 | 9.88 | 14.50 | 15.00 | 11.06 | 11.00 |
| 1438X Discontinued · call for options › | 14.00 | 13.00 | 4.75 | 12.13 | 14.50 | 15.00 | 13.31 | 12.00 |
| 1438-30 | 16.25 | 13.00 | 4.75 | 12.13 | 16.75 | 17.25 | 13.31 | 14.00 |
| 1438-36 | 16.25 | 15.25 | 4.75 | 14.38 | 16.75 | 17.25 | 15.56 | 16.00 |
| 1438-42 | 18.50 | 15.25 | 4.75 | 14.38 | 19.00 | 19.50 | 15.56 | 18.00 |
| ¹ Not Hinged | ||||||||
