Stack Lights
- Modular design for all indoor and outdoor applications.
- Provides warning signals and diplays machine status.
- High level of protection against electric shock with IP 54 rating.
- Separate components for easy ordering to suit every installation application.

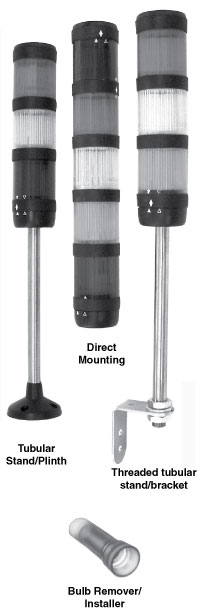

Base and Tubes
| Part No. | Description | L1 | L2 | Ship Wt. (lbs.) |
| PBR50BC | Base & End Module | -- | -- | 5 |
| PBR50S100 | Tubular Stand/Plinth | 88mm (3.46in) |
-- | 5 |
| PBR50S250 | Tubular Stand/Plinth | 238mm (9.37in) |
-- | 5 |
| PBR50T100 | Threaded tubular stand/bracket | -- | 78mm (3.07in) |
5 |
| PBR50T250 | Threaded tubular stand/bracket | -- | 228mm (8.98in) |
5 |
| PBR50T400 | Threaded tubular stand/bracket | -- | 378mm (14.13in) |
5 |
Modules
| Part No. | Description | Ship Wt. (lbs.) |
| PBR50CLCL | Continuous beam module, transparent | 1 |
| PBR50CLYE | Continuous beam module, yellow | 1 |
| PBR50CLAM | Continuous beam module, amber | 1 |
| PBR50CLRE | Continuous beam module, red | 1 |
| PBR50CLGR | Continuous beam module, green | 1 |
| PBR50CLBL | Continuous beam module, blue | 1 |
| PBR50BLYE24V | Blinking module, yellow | 1 |
| PBR50BLRE24V | Blinking module, red | 1 |
| PBR50BLGR24V | Blinking module, green | 1 |
Gaskets, Bulbs and Accessories
| Part No. | Description | Ship Wt. (lbs.) |
| PBR50MG | Replacement gasket for light module + base module | 1 |
| PBR50TG | Replacement gasket for mounting tube with plinth | 1 |
| PBR50BG | Replacement gasket for direct mounting IP 65 | 1 |
| PBR50LED24 | LED light bulb 24V/BA15d | 1 |
| PBR50LED115 | LED light bulb 115V/BA15d | 1 |
| PBR50L24 | Light bulb 24V DC/BA15d 7W | 1 |
| PBR50L115 | Light bulb 115V DC/BA15d 7W | 1 |
| PBR50LS | Bulb Remover / Installer | 1 |
| PBR50EXT | Stacklight Extension | 1 |
