1447S Single Door Disconnect Enclosures - NEMA 12, 13

ABB Controls, Allen Bradley, Cutler Hammer, General Electric, Siemens I-T-E Max-Flex™, Square D

Application

Designed to house the following safety disconnect equipment:
- ABB Controls flange-mounted variable depth operating mechanism for disconnect switches and circuit breakers. Also cable version for circuit breakers.
- Allen Bradley 1494V variable depth flange mounted disconnect switches and circuit breaker operators. Will not accept Allen Bradley 1494F disconnect switches, 1494D circuit breaker operators.
- C-H Westinghouse C361 flange mounted variable depth operating mechanism with disconnect switches and C371 flange mounted variable depth operating mechanisms for circuit breakers. Also Flex-Shaft™ handle mechanisms for circuit breakers.
- General Electric Type STDA flange handles and variable depth operating mechanism for disconnect switches and circuit breakers. Also SpectraFlex™ cable operators for circuit breakers.
- Siemens I-T-E Max-Flex™ flange mounted variable depth handles for disconnect switches and circuit breakers.
- Square D class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange-mounted variable depth operating mechanisms or cable mechanisms for circuit breakers. Will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devicess

Standards

UL 508 Type 12, 13
CSA Type 12, 13
Complies with
- NEMA Type 12 and 13
- JIC EGP-1-1967
- IEC 60529, IP54
- Appropriate components are required to maintain these standards.

Construction

Formed 14-gauge steel.
Continuously welded seams.
Larger sizes include door and body stiffeners.
Welded brackets provide for enclosure mounting.
Formed lip on door and enclosure exclude flowing liquids and contaminants.
Cutouts and holes are provided to suit the handle, operating mechanism and door closing mechanism.
Continuously hinged doors may be removed by pulling the hinge pin.
Latch pivots and cover interlock brackets are welded to the door.
Cover latch bars for door handles are provided.
Collar studs are provided for mounting inner panels.
A removable 12 gauge inner panel is included.
Oil resistant gaskets are permanently secured and mechanically retained.
A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
A literature pocket is provided.

Note

Disconnects, operating mechanisms and door hardware are not provided with the enclosure, and must be ordered separately from the manufacturer.
Enclosures with an "A" dimension under 40" require 2 point door closing hardware.
Enclosures with an "A" dimension 40" or more require 3 point door closing hardware.

Finish

Door and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating on the outside.
Enclosure interior is finished in white powder coating.
Inner panel is finished in white powder coating.

Accessories

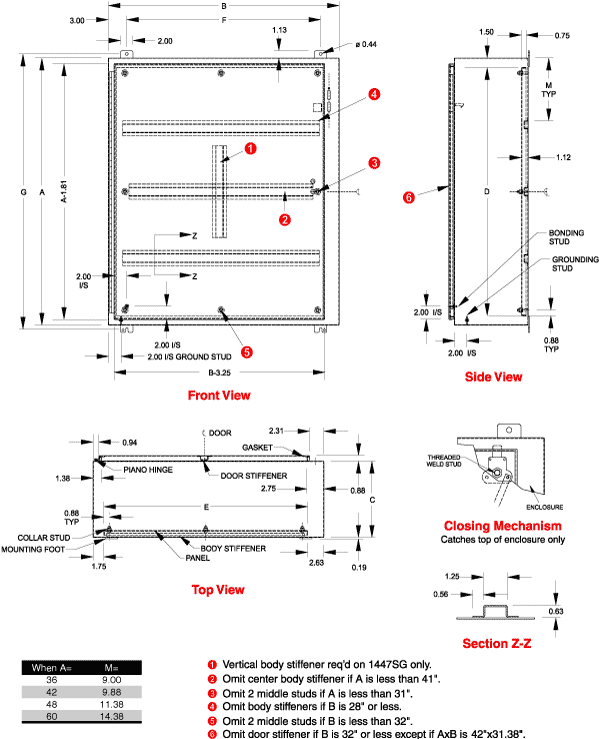

Part No.				Panel Size		Mounting Center		Ship Wt. lbs	Center Stiffener²
Part No.	A	B	C	D	E	F	G	Ship Wt. lbs	Center Stiffener²
1447SA8 Buy ›	20	21.38	8	17	17	15.38	21.25	51	N
1447SB8 Buy ›	24	21.38	8	21	17	15.38	25.25	60	N
1447SC8 Buy ›	24	25.38	8	21	21	19.38	25.25	71	N
1447SD8 Buy ›	30	21.38	8	27	17	15.38	31.25	74	N
1447SE8 Buy ›	30	25.38	8	27	21	19.38	31.25	87	N
1447SF8 Buy ›	36	25.38	8	33	21	19.38	37.25	98	N
1447SG8 Buy ›	36	31.38	8	33	27	25.38	37.25	121	N
1447SH8 Buy ›	42	31.38	8	39	27	25.38	43.25	135	I
1447SJ8 Buy ›	42	37.38	8	39	33	31.38	43.25	154	I
1447SK8 Buy ›	48	37.38	8	45	33	31.38	49.25	172	I
1447SL8 Buy ›	60	37.38	8	57	33	31.38	61.25	248	I
1447SA10 Buy ›	20	21.38	10	17	17	15.38	21.25	52	N
1447SB10 Buy ›	24	21.38	10	21	17	15.38	25.25	63	N
1447SC10 Buy ›	24	25.38	10	21	21	19.38	25.25	71	N
1447SD10 Buy ›	30	21.38	10	27	17	15.38	31.25	80	N
1447SE10 Buy ›	30	25.38	10	27	21	19.38	31.25	90	N
1447SF10 Buy ›	36	25.38	10	33	21	19.38	37.25	100	N
1447SG10 Buy ›	36	31.38	10	33	27	25.38	37.25	126	N
1447SH10 Buy ›	42	31.38	10	39	27	25.38	43.25	143	I
1447SJ10 Buy ›	42	37.38	10	39	33	31.38	43.25	193	I
1447SK10 Buy ›	48	37.38	10	45	33	31.38	49.25	180	I
1447SL10 Buy ›	60	37.38	10	57	33	31.38	61.25	255	I
1447SE12 Buy ›	30	25.38	12	27	21	19.38	31.25	100	N
1447SG12 Buy ›	36	31.38	12	33	27	25.38	37.25	130	N
1447SH12 Buy ›	42	31.38	12	39	27	25.38	43.25	150	I
1447SJ12 Buy ›	42	37.38	12	39	33	31.38	43.25	200	I
1447SK12 Buy ›	48	37.38	12	45	33	31.38	49.25	220	I
1447SL12 Buy ›	60	37.38	12	57	33	31.38	61.25	265	I
1447S46L12 Buy ›	60	37.38	12	57	34.5	31.38	61.25	265	1
1447SG16 Buy ›	36	31.38	16	33	27	25.38	37.25	150	N
1447SK16 Buy ›	48	37.38	16	45	33	31.38	49.25	200	I
1447SL16 Buy ›	60	37.38	16	57	33	31.38	61.25	265	I
² Center stiffener; N = Not Included I = Included
