Polyester Modular Enclosures - NEMA 4X
R130 Series Enclosures
Application
- Designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures.
- Provide outstanding protection against dust, oil and pressurized water.
- Impervious to atmospheric and marine corrosion.
Standards
- Complies with
- NEMA 1, 2, 3, 3R, 4, 4X, 5, 12, 13
- IEC 60529, IP66
- VO Flammability Rating
Construction
- Two piece molded fiberglass reinforced polyester construction.
- Captive polyfibre cover screws are provided with a standard slot head.
- Cover screws fasten into pre-threaded holes.
- The threaded cover screw holes also provide single channel access to rear mounting positions.
- Recessed neoprene gasket with tongue and groove construction is oil and petroleum resistant.
- Threaded stainless steel inserts provide for internal mounting.
- Spring loaded stainless steel hinge pins are standard, allowing for quick lid removal.
Finish
- Light beige RAL 7032

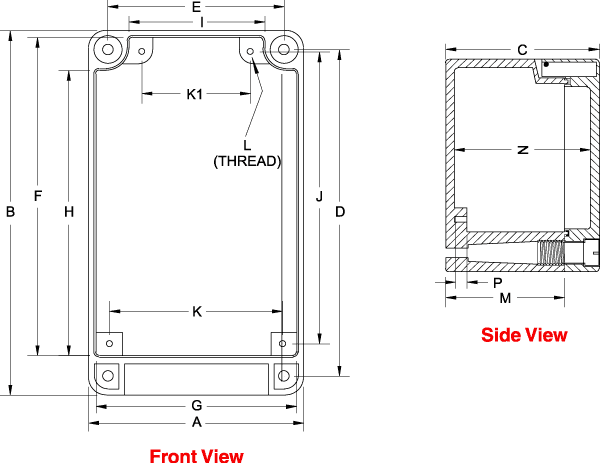

| Part No. | Series | Units | Width | Length | Height | |||||||||||||
| A | B | C | D | E | F | G | H | I | J | K | K1 | L | M | N | P | |||
| R130-120-000 | PD-120 | inch mm |
4.72 120 |
5.51 140 |
3.94 100 |
4.65 118 |
3.86 98 |
4.33 110 |
4.25 108 |
3.62 92 |
2.81 71.5 |
3.82 97 |
3.74 95 |
2.28 58 |
M6 | 2.76 70 |
3.62 92 |
0.28 7 |
| R130-122-000 | PD-122 | inch mm |
4.72 120 |
7.87 200 |
3.94 100 |
7.01 178 |
3.86 98 |
6.69 170 |
4.25 108 |
5.98 152 |
2.81 71.5 |
6.18 157 |
3.74 98 |
2.28 58 |
M6 | 2.76 70 |
3.62 92 |
0.28 7 |
| R130-124-000 | PD-124 | inch mm |
4.72 120 |
10.24 260 |
3.94 100 |
9.37 238 |
3.86 98 |
9.06 230 |
4.25 108 |
8.35 212 |
2.81 71.5 |
8.54 217 |
3.74 95 |
2.28 58 |
M6 | 2.76 70 |
3.62 92 |
0.28 7 |
| R130-160-000 | PD-160 | inch mm |
6.3 160 |
7.09 180 |
3.94 100 |
6.22 158 |
5.43 138 |
5.91 150 |
5.83 148 |
5.2 132 |
4.39 111.5 |
5.39 137 |
5.31 135 |
3.86 98 |
M6 | 2.76 70 |
3.62 92 |
0.28 7 |
| R130-162-000 | PD-162 | inch mm |
6.3 160 |
10.24 260 |
3.94 100 |
9.37 238 |
5.43 138 |
9.06 230 |
5.83 148 |
8.35 212 |
4.39 111.5 |
8.54 217 |
5.31 135 |
3.86 98 |
M6 | 2.76 70 |
3.62 92 |
0.28 7 |
| R130-164-000 | PD-164 | inch mm |
6.3 160 |
13.39 340 |
3.94 100 |
12.52 318 |
5.43 138 |
12.2 310 |
5.83 148 |
11.5 292 |
4.39 111.5 |
11.69 297 |
5.31 135 |
3.86 98 |
M6 | 2.76 70 |
3.62 92 |
0.28 7 |
| R130-200-000 | PD-200 | inch mm |
7.87 200 |
8.66 220 |
4.72 120 |
7.8 198 |
7.01 178 |
7.46 189.5 |
7.38 187.5 |
6.73 171 |
5.94 151 |
6.97 177 |
6.89 175 |
5.43 138 |
M6 | 3.54 90 |
4.41 112 |
0.28 7 |
| R130-202-000 | PD-202 | inch mm |
7.87 200 |
12.6 320 |
4.72 120 |
11.73 298 |
7.01 178 |
11.4 289.5 |
7.38 187.5 |
10.67 271 |
5.94 151 |
10.91 277 |
6.89 175 |
5.43 138 |
M6 | 3.54 90 |
4.41 112 |
0.28 7 |
| Part No. | External Feet (Set of 4) Stainless Steel |
Inner Panel (1.5 mm) Steel, Zinc Plated |
Cross Rail (Pair) (Low Bottom Part) |
| R130-120-000 | R501-000-001 | R530-120-000 | R531-120-000 |
| R130-122-000 | R501-000-001 | R530-122-000 | R531-120-000 |
| R130-124-000 | R501-000-001 | R530-124-000 | R531-120-000 |
| R130-160-000 | R501-000-001 | R530-160-000 | R531-160-000 |
| R130-162-000 | R501-000-001 | R530-162-000 | R531-160-000 |
| R130-164-000 | R501-000-001 | R530-164-000 | R531-160-000 |
| R130-200-000 | R501-000-001 | R530-200-000 | R531-200-000 |
| R130-202-000 | R501-000-001 | R530-202-000 | R531-200-000 |
