Polyester Enclosures - NEMA 4X
PJW Series - Continuous Hinge Wallmount
Application
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
Standards
- UL/cUL 508 Type 1, 2, 3, 4, 4X, 12 and 13
- CSA Type 1, 2, 3, 4, 4X, 12 and 13
- Complies with
- NEMA Type 1, 2, 3, 4, 4X,12 and 13
- IEC 60529, IP66
Construction
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Enhanced UV inhibitors protect against outdoor weathering.
- 3/8 collar studs are provided for optional inner panel mounting, hardware included.
- Stainless steel butterfly type "twist latch" door fasteners with padlock provision.
- Captive oil resistant gasket provides a positive seal.
- Integrated mounting flange.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
Finish
- Fiberglass polyester material has a gray finish.
- Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or Fiberglass.
Accessories

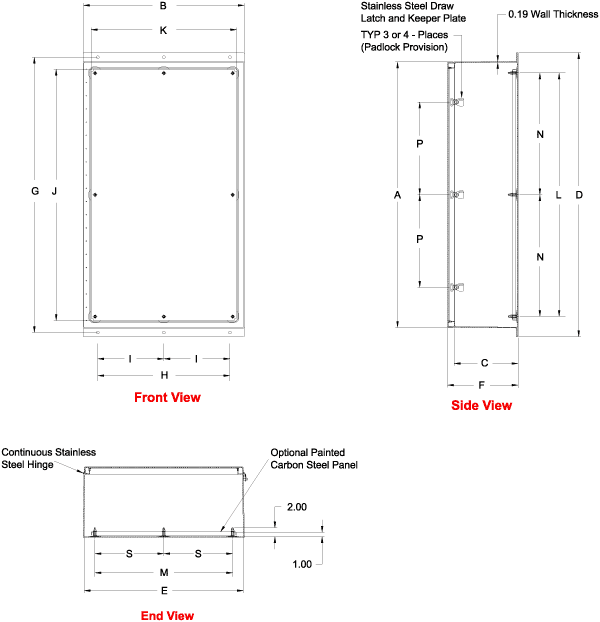

| Part No. | Dimensions | Mounting Centers | |||||||||
| A | B | C | D | E | F | G | H | I | J | K | |
| PJW363010L | 36.25 | 30.25 | 10.13 | 40.50 | 30.50 | 12.00 | 38.50 | 24.00 | 12.00 | 33.88 | 27.88 |
| PJW363014L | 36.25 | 30.25 | 14.13 | 40.50 | 30.50 | 16.00 | 38.50 | 24.00 | 12.00 | 33.88 | 27.88 |
| PJW363610L | 36.25 | 36.25 | 10.13 | 40.50 | 36.50 | 12.00 | 38.50 | 30.00 | 15.00 | 33.88 | 33.88 |
| PJW363614L | 36.25 | 36.25 | 14.13 | 40.50 | 36.50 | 16.00 | 38.50 | 30.00 | 15.00 | 33.88 | 33.88 |
| PJW483610L | 48.25 | 36.25 | 10.13 | 52.50 | 36.50 | 12.00 | 50.50 | 30.00 | 15.00 | 45.38 | 33.88 |
| PJW483614L | 48.25 | 36.25 | 14.13 | 52.50 | 36.50 | 16.00 | 50.50 | 30.00 | 15.00 | 45.38 | 33.88 |
| PJW603610L | 60.25 | 36.25 | 10.13 | 64.50 | 36.50 | 12.00 | 62.50 | 30.00 | 15.00 | 57.38 | 33.88 |
| PJW603614L | 60.25 | 36.25 | 14.13 | 64.50 | 36.50 | 16.00 | 62.50 | 30.00 | 15.00 | 57.38 | 33.88 |
| Part No. | M | N | S | P | # of Latches |
# of Panel Mount Studs |
Panel Size | Optional Panel Part No. |
Ship Weight (lbs) |
|
| Height | Width | |||||||||
PJW363010L |
25.25 | 15.63 | 12.63 | 12.13 | 3 | 6 | 33 | 27 | 18P3327 | 59 |
PJW363014L |
25.25 | 15.63 | 12.63 | 12.13 | 3 | 6 | 33 | 27 | 18P3327 | 64 |
PJW363610L |
31.25 | 15.63 | 15.63 | 12.13 | 3 | 8 | 33 | 33 | 18P3333 | 72 |
PJW363614L |
31.25 | 15.63 | 15.63 | 12.13 | 3 | 8 | 33 | 33 | 18P3333 | 77 |
PJW483610L |
31.25 | 21.63 | 15.63 | 18.13 | 3 | 8 | 45 | 33 | 18P4533 | 83 |
PJW483614L |
31.25 | 21.63 | 15.63 | 18.13 | 3 | 8 | 45 | 33 | 18P4533 | 91 |
PJW603610L |
31.25 | 27.63 | 15.63 | 16.00 | 4 | 8 | 57 | 33 | 18P5733 | 101 |
PJW603614L |
31.25 | 27.63 | 15.63 | 16.00 | 4 | 8 | 57 | 33 | 18P5733 | 122 |
