Application

• Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
• Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
• Ideal in applications with high temperatures or highly corrosive environments.

Standards

• UL/cUL 508 Type 1, 2, 3, 4, 4X, 12 and 13
• CSA Type 1, 2, 3, 4, 4X, 12 and 13
• Complies with
  • NEMA Type 1, 2, 3, 4, 4X,12 and 13
  • IEC 60529, IP66

Construction

• Fiberglass polyester enclosure with matching door is easily punched, cut, or drilled.
• Enhanced UV inhibitors protect against outdoor weathering.
• Collar Studs are provided for optional inner panel.
• Mounting hardware included.
• Heavy duty continuous 304 SS Hinge.
• Flexible self-gripping gasket compresses over flange for tight seal.
• 3-point SS handle with pad lock provision.
• Molded in drip shield.

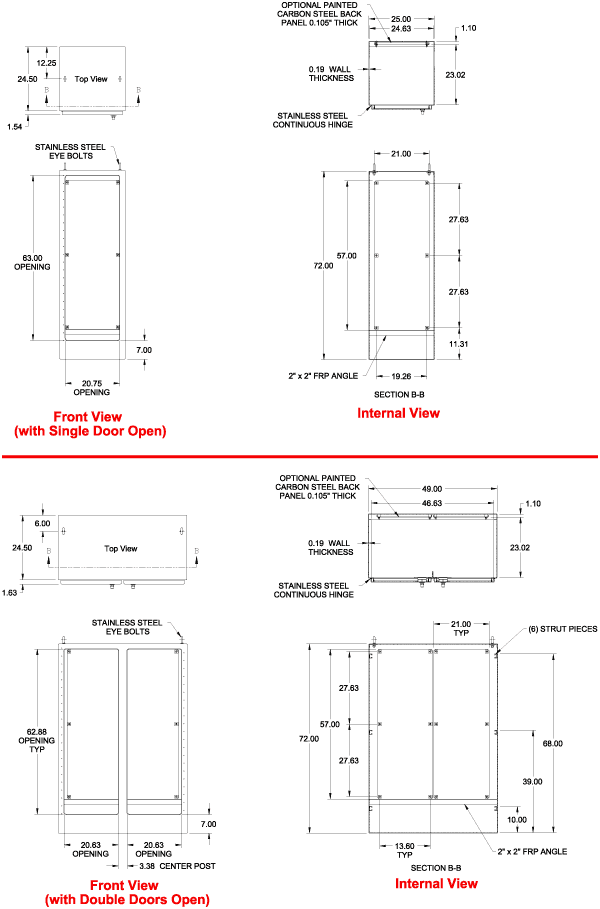

• Fiberglass mounting strut side walls on double door unit.
• Operating temperatures between 130°C and -40°C (266°F to -40°F).
• Impact index of 6.78J (5 ft/lb).
• For corrosion resistance information, please refer to table in the Technical Information section.

Finish

• Fiberglass polyester material has a gray finish.
• Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or Fiberglass.
