Heaters


  • Fan Heater with Thermostat

    • Designed to prevent condensation or maintain minimum temperature in enclosures.
    • Built in Thermostat. (-18 C to +38 C) (0 F to +100 F)
    • Fan Auto/On switch with pilot light for Heat On indication
    • 20 CFM airflow
    • High temperature safety protection
    • Aluminum alloy outer casing
    • Connection via terminal block.
    Part Number Watts Voltage Hz Overall Dimensions
    H x W x D
    Ship Wt.
    (lbs.)
    FLHTF125A115 125 120 60 5.5" x 4.0" x 5.3" 2.2
    FLHTF125A230 125 240 50/60 5.5" x 4.0" x 5.3" 2.2
    FLHTF200A115 200 120 60 5.5" x 4.0" x 5.3" 2.2
    FLHTF200A230 200 240 50/60 5.5" x 4.0" x 5.3" 2.2
    FLHTF400A115 400 120 60 7.5" x 4.0" x 5.3" 3
    FLHTF400A230 400 240 50/60 7.5" x 4.0" x 5.3" 3
    FLHTF800A115 800 120 60 7.5" x 4.0" x 5.3" 3
    FLHTF800A230 800 240 50/60 7.5" x 4.0" x 5.3" 3
  • Fan Heaters

    • For use when larger heating capacities or internal forced air circulation is required.
    • Designed to prevent condensation or maintain minimum temperature in enclosures.
    • Thermostats are also available.
    Part Number Watts Surface Temperature Starting Current Overall Dimensions
    H x W x D
    Ship Wt.
    (lbs.)
    SHGL04600 250 167°F 2.2 A 7.00" x 3.15" x 3.15" 2
    SHGL04601 400 167°F 3.5 A 9.76" x 3.15" x 3.15" 3
    Operating Voltage: AC 110-120 V, 50/60 Hz
    Circulation Power: 20 CFM Free Blowing
    Axial Fan: Ball Bearing
    Durability: 30,000 hrs. at 68°F ambient temperature
    Heating Element: Resistance heating element with temperature limiter
    Heating Body: Extruded aluminum, black anodized
    Connection: 3 pole terminal for 12 AWG
    Mounting: Easily installed by clip mounting on 35 mm DIN rails (included)
    Protection Class: 1 (tested for grounding at 1250 V)
    Protection: IP20
    Approval: UL Recognized Component, cUL Recognized Component, CE
  • High Wattage Fan Heater

    • For large heating capacity requirements.
    • Maintains minimum operating temperatures in enclosures.
    • Helps prevent failures to components caused by condensation and corrosion.
    • Built-in thermostat and control light.
    • Heating power adjusts to ambient temperature.
    • Heat exits top of fan heater. (add 2" clearance for heat sensitive parts)
    Part Number Watts Amps Volts Temperature Maximum with Fan Ship Wt.
    (lbs.)
    SCR027009 550  11 AC 120 250°F/120°C 2
    SCR027009230 550 13 AC 230 250°F/120°C 2
    SCR027019 650 12 AC 120 320°F/160°C 2.4
    Air Flow: 20 CFM (550W), 26 CFM (650W)
    Thermostat Range: 32 - 140 degrees Fahrenheit
    Heating Element: PTC - Semiconductor/resistor
    Housing: Plastic, rated UL94-VO
    Connection: 3 pole terminal, AWG 14 max (2.5 mm2)
    Mounting: Clip for 35mm DIN rail
    Protection Class: II (Double Insulated)
    Protection Type: IP20
    Approval: UL Recognized Component, cUL Recognized Component, CE
  • Heaters

    • Designed to provide enclosed electronic, pneumatic, hydraulic and mechanical equip­ment with protection from low temperatures, condensation and corrosion.
    • The PTC (Positive Temperature Coefficient) heater unit maintains a stable temperature environment within enclosures, allowing critical components to perform with consistent reliability for longer periods.
    • Heating power adjusts to ambient temperature.
    • Push connectors for quick and easy wiring.
    Part Number Watts Max. Current Length
    (in.)
    Ship Wt.
    (lbs.)
    SHG14000 15 1.5 2.6 1
    SHG14001 30 3.0 2.6 1
    SHG14003 45 3.5 2.6 1
    SHG14005 60 2.5 5.5 1
    SHG14006 75 4.0 5.5 1
    SHG14007 100 4.5 5.5 1
    SHG14008 150 8.0 8.7 2
    Operating Voltage: AC/DC 110- - 250 V
    Heating Element: PTC resistor, self regulating
    Heating Body: Anodized extruded aluminum
    Connection: Push-type terminals for stranded and solid wire 3 x AWG 20 AWG 16 (0.5 - 1.5 mm2
    Mounting: Easily installed by clip mounting on 35 mm DIN rails (included)
    Protection Class: I, test voltage 1600 V
    Protection: IP20
    Approval: UL Recognized Component, cUL Recognized Component, CE
  • Mini Radiant Heaters

    • Designed to prevent condensation or maintain minimum temperature in enclosures.
    • Built in Thermostat. (-18 C to +38 C) (0 F to +100 F)
    • Fan Auto/On switch with pilot light for Heat On indication
    • 20 CFM airflow
    • High temperature safety protection
    • Aluminum alloy outer casing
    • Connection via terminal block.
    Part Number Watts Max. Current Length
    (in.)
    Ship Wt.
    (lbs.)
    SHGM1410 10 1 1.97 0.5
    SHGM1420 20 1.1 2.95 0.5
    SHGM1430 30 1.2 2.95 0.5
    Operating Voltage: 110-250 AC 50/60 Hz
    Heating Element: Resistor, self regulating
    Heating Body: Aluminum, black anodised
    Max surface temperature: 10w @ 203°F/95°C 20w @239°F/115°C 30w @284°F/140°C
    Connection: Connecting cable 11.8"
    Mounting: Din rail 35mm profile
    Protection class: IP20
    Approval: UL Recognized Component, cUL Recognized Componet, CE

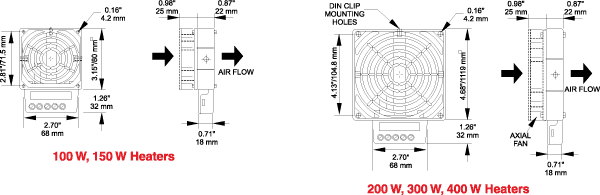

  • Control Panel Heater

    • When larger heating capacities or internal forced air circulation is required and space is limited.
    • Compact design to prevent condensation or maintain minimum temperature in enclosures.
    • Fan is included.
    • Thermostats available
    Part Number Watts Amps Volts Temperature Maximum with Fan Ship Wt.
    (lbs.)
    SHV031029 100 0.89 AC 120 250°F/120°C 1
    SHV031039 150  1.30 AC 120 320°F/160°C 1
    SHV031139 200  1.79 AC 120 250°F/120°C 1
    SHV031149 300  2.62 AC 120 320°F/160°C 1
    SHV031159 400  3.45 AC 120 360°F/180°C 1
    Operating Voltage: AC 110 -120 V 50/60 Hz
    Air Flow: 20 CFM (100W, 150W heaters), 63 CFM (200W, 300W, 400W heaters)
    Axial Fan: Ball bearing
    Durability: 30,000 hrs. at 68°F ambient temperature
    Heating Element: Cartridge heater
    Heating Body: Die cast aluminum
    Connection: 5 pole terminal for 14 AWG (maximum)
    G/L1/N1: Heater
    L2/N2: Fan
    Mounting: Easily installed by clip mounting on 35 mm DIN rails (included)
    Protection class: 1 (tested for grounding at 1250 V)
    Protection: P44
    Approval: UL Recognized Component, cUL Recognized Component,CE
