R100 Diecast Aluminum Enclosures - NEMA 4X

Standards

CSA-US Type 4
Complies with
- IEC 60529, IP66

Construction

Aluminum diecast G AI SI 12 / DIN 1725, Leg 230.
Captive stainless steel lid screws are standard.
Neoprene oil and petrol resistant gasket standard.
Temperature range -30°C to +100°C (-22°F to +212°F).
Single-channel Fastening System. Trouble-free turning 90° to 90° with square enclosures by synchronous arrangement of channels.

Finish

Textured polyester powder coat, beige RAL 7032.

Part No.	Series	Units	(W)	(L)	(H)

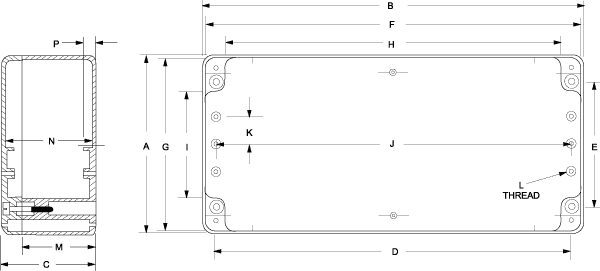

Part No.	Series	Units	A	B	C	D	E	F	G	H	I	J	K	L	M	N	P
R100-060-000	AS-060	inch	2.56	1.97	1.57	1.50	2.09	1.67	2.26	1.28	1.48	1.34	0.96	M4	1.10	1.38	0.35
R100-060-000	AS-060	mm	65	50	40	38.0	53	43	58	33	38.00	34.00	25.00	M4	28	35	9
R100-062-000	AS-062	inch	2.56	2.56	1.57	2.09	2.09	2.26	2.26	1	1.48	1.93	0.55	M4	1.10	1.34	0.35
R100-062-000	AS-062	mm	65	65	40	53	53	58	58	38	38.00	49	14.00	M4	28	34	9
R100-064-000	AS-064	inch	2.56	3.94	1.57	3.5	2.09	3.64	2.26	3	1.48	3.31	0.55	M4	1.10	1.34	0.35
R100-064-000	AS-064	mm	65	100	40	88.0	53	93	58	73	38.00	84.00	14.00	M4	28	34	9
R100-066-000	AS-066	inch	2.56	5.91	1.57	5.4	2.09	5.61	2.26	5	1.48	5.28	0.55	M4	1.10	1.34	0.35
R100-066-000	AS-066	mm	65	150	40	138.0	53	143	58	123	38.00	134.00	14.00	M4	28	34	9
R100-080-000	AS-080	inch	3.15	3.15	2.36	2.6	2.64	2.78	2.78	2	1.93	2.28	0.77	M4	1.57	2.13	0.39
R100-080-000	AS-080	mm	80	80	60	67.0	67	71	71	49	49.00	58.00	20.00	M4	40	54	10
R100-082-000	AS-082	inch	3.15	4.72	2.36	4.2	2.64	4.35	2.78	4	1.93	3.86	0.77	M4	1.57	2.13	0.39
R100-082-000	AS-082	mm	80	120	60	107.0	67	111	71	90	49	98	20	M4	40	54	10
R100-084-000	AS-084	inch	3.15	6.30	2.36	5.8	2.64	5.93	2.78	5	1.93	5.43	0.77	M4	1.57	2.13	0.39
R100-084-000	AS-084	mm	80	160	60	147.0	67	151	71	138	49	138	20	M4	40	54	10
R100-100-000	AS-100	inch	3.94	3.94	3.15	3.4	3.43	3.54	3.54	3	2.74	3.07	1.16	M4	2.09	2.91	0.39
R100-100-000	AS-100	mm	100	100	80	87.0	87	90	90	70	70	78	30	M4	53	74	10
R100-102-000	AS-102	inch	3.94	5.91	3.15	5.4	3.43	5.51	3.54	5	2.74	5.04	1.16	M4	2.09	2.91	0.39
R100-102-000	AS-102	mm	100	150	80	137.0	87	140	90	120	70	128	30	M4	53	74	10
R100-104-000	AS-104	inch	3.94	7.87	3.15	7.4	3.43	7.48	3.54	7	2.74	7.01	1.16	M4	2.09	2.91	0.39
R100-104-000	AS-104	mm	100	200	80	187.0	87	190	90	170	70	178	30	M4	53	74	10
R100-120-000	AS-120	inch	4.72	4.72	3.94	4.0	4.02	4.29	4.29	3	3.15	3.62	1.26	M6	2.64	3.62	0.51
R100-120-000	AS-120	mm	120	120	100	102.0	102	109	109	80	80	92	32	M6	67	92	13
R100-122-000	AS-122	inch	4.72	7.09	3.94	6.4	4.02	6.65	4.29	6	3.15	5.98	1.26	M6	2.64	3.62	0.51
R100-122-000	AS-122	mm	120	180	100	162.0	102	169	109	140	80	152	32	M6	67	92	13
R100-124-000	AS-124	inch	4.72	9.45	3.94	8.7	4.02	9.02	4.29	8	3.15	8.35	1.26	M6	2.64	3.62	0.51
R100-124-000	AS-124	mm	120	240	100	222.0	102	229	109	200	80	212	32	M6	67	92	13
R100-160-000	AS-160	inch	6.30	6.30	3.94	5.6	5.59	5.87	5.87	5	4.76	5.2	2.05	M6	2.64	3.62	0.51
R100-160-000	AS-160	mm	160	160	100	142.0	142	149	149	121	121	132	52	M6	67	92	13
R100-162-000	AS-162	inch	6.30	9.45	3.94	8.7	5.59	9.02	5.87	7.87	4.72	8.39	2.05	M6	2.64	3.62	0.51
R100-162-000	AS-162	mm	160	240	100	222.0	142	229	149	200	120	213	52	M6	67	92	13
R100-164-000	AS-164	inch	6.30	12.60	3.94	11.9	5.59	12.17	5.87	11.02	4.72	11.5	2.05	M6	2.64	3.62	0.51
R100-164-000	AS-164	mm	160	320	100	302.0	142	309	149	280	120	292	52	M6	67	92	13
R100-166-000	AS-166	inch	6.30	18.90	3.94	18.2	5.59	18.43	5.83	17.28	4.69	17.8	2.05	M6	2.64	3.58	0.51
R100-166-000	AS-166	mm	160	480	100	462.0	142	468	148	439	119	452	52	M6	67	91	13
R100-200-000	AS-200	inch	7.87	7.87	4.72	7.1	7.09	7.40	7.40	6.08	6.1	6.61	2.64	M6	3.15	4.41	0.51
R100-200-000	AS-200	mm	200	200	120	180.0	180	188	188	155	155	168	67	M6	80	112	13
R100-202-000	AS-202	inch	7.87	11.81	4.72	11.0	7.09	11.34	7.40	10.02	6.1	10.55	2.64	M6	3.15	4.41	0.51
R100-202-000	AS-202	mm	200	300	120	280.0	180	288	188	255	155	268	67	M6	80	112	13
R100-204-000	AS-204	inch	7.87	15.75	4.72	15.0	7.09	15.28	7.40	13.96	6.1	14.49	2.64	M6	3.15	4.37	0.51
R100-204-000	AS-204	mm	200	400	120	380.0	180	388	188	355	155	368	67	M6	80	111	13
R100-240-000	AS-240	inch	9.45	9.45	4.72	8.7	8.66	8.98	8.98	7.66	7.68	8.19	3.43	M6	3.15	4.41	0.51
R100-240-000	AS-240	mm	240	240	120	220.0	220	228	228	195	195	208	87	M6	80	112	13
R100-242-000	AS-242	inch	9.45	14.17	4.72	13.4	8.66	13.70	8.98	12.38	7.68	12.91	3.43	M6	3.15	4.37	0.51
R100-242-000	AS-242	mm	240	360	120	340.0	220	348	228	315	195	328	87	M6	80	111	13
R100-244-000	AS-244	inch	9.45	18.90	4.72	18.1	8.66	18.43	8.98	17.11	7.68	17.64	3.43	M6	3.15	4.37	0.51
R100-244-000	AS-244	mm	240	480	120	460.0	220	468	228	435	195	448	87	M6	80	111	13
R100-320-000	AS-320	inch	12.60	12.60	4.72	11.8	11.81	12.13	12.13	10.81	10.83	11.34	5	M6	3.15	4.37	0.51
R100-320-000	AS-320	mm	320	320	120	300.0	300	308	308	275	275	288	127	M6	80	111	13
R100-322-000	AS-322	inch	12.60	18.90	4.72	18.1	11.81	18.43	12.13	17.11	10.83	17.64	5	M6	3.15	4.37	0.51
R100-322-000	AS-322	mm	320	480	120	460.0	300	468	308	435	275	448	127	M6	80	111	13
R100-324-000	AS-324	inch	12.60	25.20	4.72	24.4	11.81	24.72	12.13	23.41	10.83	23.94	5	M6	3.15	4.37	0.51
R100-324-000	AS-324	mm	320	640	120	620.0	300	628	308	595	275	608	127	M6	80	111	13
