Polycarbonate Enclosures - NEMA 4X
1555F Series
Standards
- UL/cUL 508 Type 4, 4X, 12 and 13
- Complies with
- NEMA 4, 4X, 12 and 13
- IEC 60529 IP66
- UL94 VO
Construction
- Electronic instrument enclosures, designed for mounting printed circuit boards or DIN rail mounted components
- The polycarbonate material carries a UL fl ammability rating of UL94 VO and is suitable for outdoor use.
- Lid and mounting holes are located outside of the gasket seal.
- Lid is secured with self captivating M4 stainless steel machine screws(included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly).
- Heavy duty 16 gauge galvanized steel panels available (see chart)
- All stainless steel hardware to avoid corrosion caused by dissimilar metals.
- Gasket is pre-formed using high temperature U.L. listed - silicone rubber gasket material.
- Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water.
- Internal DIN rail mounting tabs molded in all except the 1555C2F22GY & 1555C2F42GY
- Threaded (M3) integral brass inserts & standoffs designed for M3.5 or #6 self tapping screws for P.C. board or inner panel mounting in all but the smallest size (1554BGY & 1554B2GY)
Finish
- Color is light gray (RAL 7035)
Accessories
| Solid Cover Part No. |
Units | Optional Inner Panel Part No. |

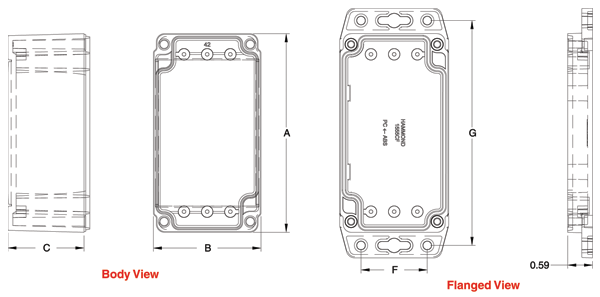

Dimensions | ||||||
| A | B | C | F | G | Length | Width | |||
| 1555C2F22GY | inch | 4.72 | 2.59 | 1.06 | 1.57 | 5.35 | 1555CFPL | 4.25 | 2.07 |
| mm | 120 | 65 | 27 | 40 | 135 | 108 | 52 | ||
| 1555C2F42GY | inch | 4.72 | 2.59 | 1.85 | 1.57 | 5.35 | 1555CFPL | 4.25 | 2.07 |
| mm | 120 | 65 | 47 | 40 | 135 | 108 | 52 | ||
| 1555F2F17GY | inch | 4.72 | 3.57 | 0.87 | 1.99 | 5.54 | 1555FFPL | 4.25 | 2.99 |
| mm | 120 | 91 | 22 | 50 | 140 | 108 | 76 | ||
| 1555F2F42GY | inch | 4.72 | 3.57 | 1.85 | 1.99 | 5.54 | 1555FFPL | 4.25 | 2.99 |
| mm | 120 | 91 | 47 | 50 | 140 | 108 | 76 | ||
| 1555N2F17GY | inch | 4.72 | 4.72 | 0.87 | 2.75 | 5.54 | 1555NFPL | 4.25 | 4.25 |
| mm | 120 | 120 | 22 | 70 | 140 | 108 | 108 | ||
| 1555N2F42GY | inch | 4.72 | 4.72 | 1.85 | 2.75 | 5.54 | 1555NFPL | 4.25 | 4.25 |
| mm | 120 | 120 | 47 | 70 | 140 | 108 | 108 | ||
| 1555J2F17GY | inch | 6.29 | 3.57 | 0.87 | 1.99 | 7.12 | 1555JFPL | 5.82 | 2.99 |
| mm | 160 | 91 | 22 | 50 | 180 | 148 | 76 | ||
| 1555J2F42GY | inch | 6.29 | 3.57 | 1.85 | 1.99 | 7.12 | 1555JFPL | 5.82 | 2.99 |
| mm | 160 | 91 | 47 | 50 | 180 | 148 | 76 | ||
| 1555H2F17GY | inch | 7.12 | 4.72 | 0.87 | 2.75 | 7.87 | 1555HFPL | 6.61 | 4.25 |
| mm | 180 | 120 | 22 | 70 | 200 | 168 | 108 | ||
| 1555H2F42GY | inch | 7.12 | 4.72 | 1.85 | 2.75 | 7.87 | 1555HFPL | 6.61 | 4.25 |
| mm | 180 | 120 | 47 | 70 | 200 | 168 | 108 | ||
