Polycarbonate Enclosures - NEMA 4X
1554 Series
Standards
- IP66
- NEMA 4, 4X, 12 & 13
- UL94 5V
Construction
- Electronic instrument enclosures, designed for mounting printed circuit boards or DIN rail mounted components.
- The polycarbonate material carries a UL flammability rating of UL94 5V and is suitable for outdoor use.
- Lid and mounting holes are located outside of the gasket seal.
- Lid is secured with self captivating M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly).
- Heavy duty 16 gauge galvanized steel panels available (see chart)
- All stainless steel hardware to avoid corrosion caused by dissimilar metals.
- Gasket is factory poured using high temperature U.L. listed - silicone rubber gasket material.
- Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water.
- Internal DIN rail mounting tabs molded in all except the 1554CGY & 1554C2GY
- Threaded (M3) integral brass inserts & standoffs designed for M3.5 or #6 self tapping screws for P.C. board or inner panel mounting in all but the smallest size (1554BGY & 1554B2GY)
- Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size (1554BGY & 1554B2GY)
Finish
- Color is light gray (RAL 7035)
Accessories
| Clear Cover Part No. |
Solid Cover Part No. |
Units | Overall Depth |
Optional Inner Panel Part No. |

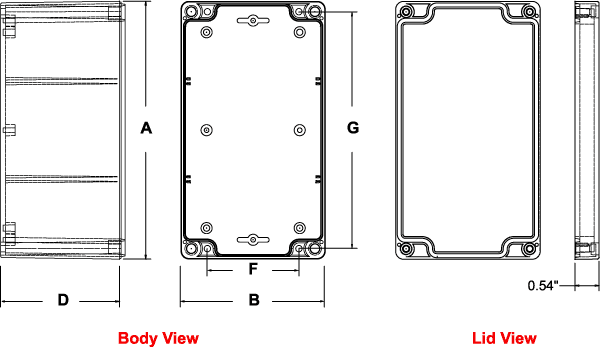

Dimensions | ||||||
| A | B | C | D | F | G | Length | Width | ||||
| 1554B2GYCL Buy › | 1554B2GY Buy › | inch | 2.6 | 2.6 | 1.6 | 1.0 | 2.05 | 1.26 | 1554BPL | 2.20 | 2.2 |
| mm | 65 | 65 | 40 | 25.0 | 52 | 32 | 56 | 59 | |||
| 1554E2GYCL Buy › | 1554E2GY Buy › | inch | 3.5 | 3.5 | 2.4 | 1.8 | 2.24 | 2.24 | 1554EPL | 3 | 3 |
| mm | 90 | 90 | 60 | 45.0 | 57 | 57 | 79 | 79 | |||
| 1554C2GYCL Buy › | 1554C2GY Buy › | inch | 4.7 | 2.6 | 1.6 | 1.0 | 2.05 | 3.43 | 1554CPL | 4 | 2 |
| mm | 120 | 65 | 40 | 25.0 | 52 | 87 | 112 | 53 | |||
| 1554D2GYCL Buy › | 1554D2GY Buy › | inch | 4.7 | 2.6 | 2.4 | 1.8 | 2.05 | 3.43 | 1554CPL | 4 | 2 |
| mm | 120 | 65 | 60 | 45.0 | 52 | 87 | 112 | 53 | |||
| 1554F2GYCL Buy › | 1554F2GY Buy › | inch | 4.7 | 3.5 | 2.4 | 1.8 | 2.68 | 4.21 | 1554FPL | 4 | 3 |
| mm | 120 | 90 | 60 | 45.0 | 68 | 107 | 109 | 79 | |||
| 1554G2GYCL Buy › | 1554G2GY Buy › | inch | 4.7 | 3.5 | 3.2 | 2.6 | 4.21 | 4.21 | 1554FPL | 4 | 3 |
| mm | 120 | 90 | 80 | 65.0 | 107 | 107 | 109 | 79 | |||
| 1554N2GYCL Buy › | 1554N2GY Buy › | inch | 4.7 | 4.7 | 2.4 | 1.8 | 3.43 | 4.21 | 1554NPL | 4 | 4 |
| mm | 120 | 120 | 60 | 45.0 | 87 | 107 | 108 | 107 | |||
| 1554P2GYCL Buy › | 1554P2GY Buy › | inch | 4.7 | 4.7 | 3.15 | 2.6 | 3.43 | 4.21 | 1554NPL | 4 | 4 |
| mm | 120 | 120 | 80 | 65.0 | 87 | 107 | 108 | 107 | |||
| 1554J2GYCL Buy › | 1554J2GY Buy › | inch | 6.3 | 3.5 | 2.4 | 1.8 | 2.24 | 5.79 | 1554JPL | 6 | 3 |
| mm | 160 | 90 | 60 | 45.0 | 57 | 147 | 147 | 76 | |||
| 1554K2GYCL Buy › | 1554K2GY Buy › | inch | 6.3 | 3.5 | 3.5 | 3.0 | 2.24 | 5.79 | 1554JPL | 6 | 3 |
| mm | 160 | 90 | 90 | 75.0 | 57 | 147 | 147 | 76 | |||
| 1554R2GYCL Buy › | 1554R2GY Buy › | inch | 6.3 | 6.3 | 2.4 | 1.8 | 5.00 | 5.79 | 1554RPL | 5.94 | 5.8 |
| mm | 160 | 160 | 60 | 45.0 | 127 | 147 | 151 | 147 | |||
| 1554S2GYCL Buy › | 1554S2GY Buy › | inch | 6.3 | 6.3 | 3.5 | 3.0 | 5.00 | 5.79 | 1554RPL | 5.94 | 5.8 |
| mm | 160 | 160 | 90 | 75.0 | 127 | 147 | 151 | 147 | |||
| 1554H2GYCL Buy › | 1554H2GY Buy › | inch | 7.1 | 4.7 | 2.4 | 1.8 | 3.43 | 6.58 | 1554HPL | 6.6 | 4.2 |
| mm | 180 | 120 | 60 | 45.0 | 87 | 167 | 168 | 107 | |||
| 1554T2GYCL Buy › | 1554T2GY Buy › | inch | 7.1 | 4.7 | 3.5 | 3.0 | 3.43 | 6.58 | 1554HPL | 6.6 | 4.2 |
| mm | 180 | 120 | 90 | 75.0 | 87 | 167 | 168 | 107 | |||
| 1554U2GYCL Buy › | 1554U2GY Buy › | inch | 7.9 | 4.7 | 3.5 | 3.0 | 3.43 | 7.37 | 1554UPL | 7.6 | 4.2 |
| mm | 200 | 120 | 90 | 75.0 | 87 | 187 | 193 | 107 | |||
| 1554V2GYCL Buy › | 1554V2GY Buy › | inch | 9.5 | 6.3 | 3.5 | 3.0 | 5.00 | 8.93 | 1554VPL | 9.1 | 5.7 |
| mm | 240 | 160 | 90 | 75.0 | 127 | 227 | 231 | 145 | |||
