N1WS Series Surface Mount Panel Enclosures
3 Piece Assembly - NEMA 1
Application
- Designed for indoor use to enclose controls, instruments, and components which do not require oil-tight or dust-tight protection.
- Ideal for applications where components may be easily mounted and wired prior to installation of wrapper and door.
Standards
- UL 50 Type 1
- CSA Type 1
- Complies with
- NEMA Type 1
- IEC 60529, IP20
Construction
- Three piece assembly consisting of a base, wrapper, and door.
- Components are attached and secured with metal screws.
- 14 gauge reverse formed base provides clearance for mounting hardware.
- Wrapper is available in three depths: 4”, 6”, and 8”.
- Wrapper is formed from 16 gauge steel, with no knock-outs in the sides.
- Door assembly formed from 16 gauge steel.
- Removable door is mounted on slip hinges.
- A bonding stud is provided on the door and a grounding screw is provided for the enclosure.
- Door is fastened with a slotted quarter turn latch.
Finish
- Base, wrapper and door are finished in ANSI 61 gray powder coating.
Accessories

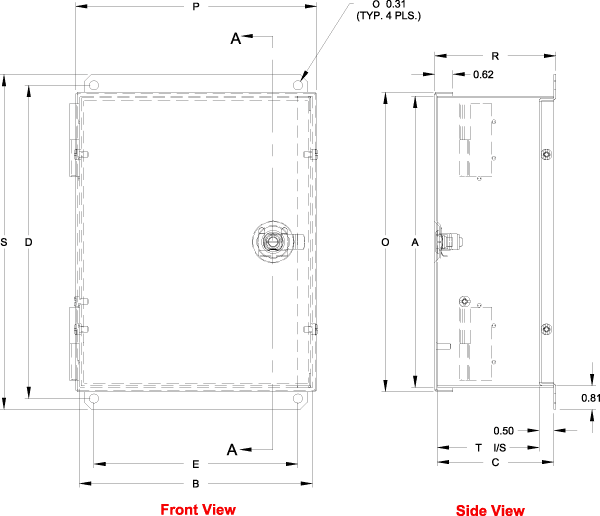

| Part No. | Wrapper Size | Mounting Centers | Overall Dimensions | Ship Wt. Lbs |
||||||||
| A | B | C | D | E | P | R | S | T | O | |||
| N1WS864 Buy › | 4” Deep | 8 | 6 | 4 | 8.75 | 5 | 6.28 | 4.16 | 9.5 | 3.5 | 8.28 | 5 |
| N1WS1084 Buy › | 10 | 8 | 4 | 10.8 | 7 | 8.28 | 4.16 | 11.5 | 4 | 10.28 | 7 | |
| N1WS12104 Buy › | 12 | 10 | 4 | 12.8 | 9 | 10.28 | 4.16 | 13.5 | 4 | 12.28 | 10 | |
| N1WS16124 Buy › | 16 | 12 | 4 | 16.8 | 11 | 12.28 | 4.16 | 17.50 | 4 | 16.28 | 14 | |
| N1WS20164 Buy › | 20 | 16 | 4 | 20.8 | 15 | 16.28 | 4.16 | 21.50 | 4 | 20.28 | 20 | |
| N1WS24204 Buy › | 24 | 20 | 4 | 24.8 | 19 | 20.28 | 4.16 | 25.50 | 4 | 24.28 | 28 | |
| N1WS866 Buy › | 6” Deep | 8 | 6 | 6 | 8.8 | 5 | 6.28 | 6.16 | 9.50 | 6 | 8.28 | 6 |
| N1WS1086 Buy › | 10 | 8 | 6 | 10.8 | 7 | 8.28 | 6.16 | 11.50 | 6 | 10.28 | 9 | |
| N1WS12106 Buy › | 12 | 10 | 6 | 12.8 | 9 | 10.28 | 6.16 | 13.50 | 6 | 12.28 | 11 | |
| N1WS16126 Buy › | 16 | 12 | 6 | 16.8 | 11 | 12.28 | 6.16 | 17.50 | 6 | 16.28 | 16 | |
| N1WS20166 Buy › | 20 | 16 | 6 | 20.8 | 15 | 16.28 | 6.16 | 21.50 | 6 | 20.28 | 22 | |
| N1WS24206 Buy › | 24 | 20 | 6 | 24.8 | 19 | 20.28 | 6.16 | 25.50 | 6 | 24.28 | 31 | |
| N1WS868 Buy › | 8” Deep | 8 | 6 | 8 | 8.8 | 5 | 6.28 | 8.16 | 9.50 | 8 | 8.28 | 7 |
| N1WS1088 Buy › | 10 | 8 | 8 | 10.8 | 7 | 8.28 | 8.16 | 11.50 | 8 | 10.28 | 10 | |
| N1WS12108 Buy › | 12 | 10 | 8 | 12.8 | 9 | 10.28 | 8.16 | 13.50 | 8 | 12.28 | 13 | |
| N1WS16128 Buy › | 16 | 12 | 8 | 16.8 | 11 | 12.28 | 8.16 | 17.50 | 8 | 16.28 | 18 | |
| N1WS20168 Buy › | 20 | 16 | 8 | 20.8 | 15 | 16.28 | 8.16 | 21.50 | 8 | 20.28 | 26 | |
| N1WS24208 Buy › | 24 | 20 | 8 | 24.8 | 19 | 20.28 | 8.16 | 25.50 | 8 | 24.28 | 34 | |
