Metering Cabinets
NEMA 3R
Application
- Designed for outdoor housing of metering transformers.
Standards
- CSA Approved, Type 3R
- Complies with:
- NEMA Type 3R
- IEC 60529, IP24
Construction
- Formed and seam welded from 14 or 16 gauge steel.
- Smooth, continuously welded seams ground smooth.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- Padlockable "L" style handle.
- Oil resistant gaskets are permanently secured.
- Removable inner panel included.
- Collar studs provided for mounting inner panel.
- Doors may be easily removed for modifications and are interchangeable.
- Bonding stud provided on door and grounding stud installed in enclosure.
- Hinges are constructed from 304 stainless steel.
- Hinge pins are stainless steel.
Finish
- Cover and enclosure are phosphatized and finished with a recoatable ANSI 61 smooth Gray powder inside and out.
- Removable inner panel is finished in white powder coating.

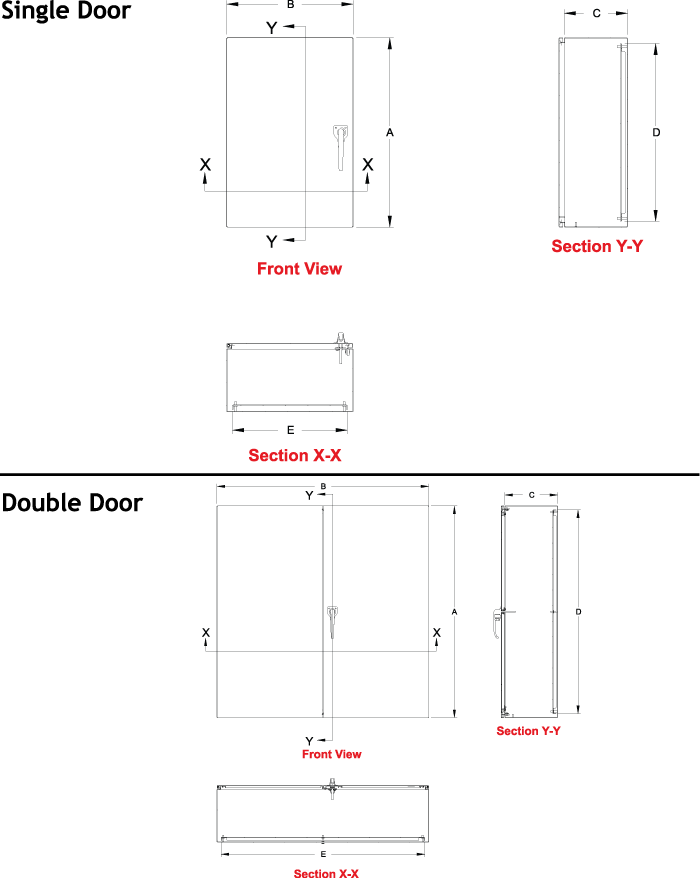

| Part No. | Overall Dimensions |
Panel Size | Type of Door | Ship Wt. (lbs.) |
|||
| A | B | C | D | E | |||
| C3RMC202010 Buy › | 20 | 20 | 10 | 18.17 | 18.17 | Single | 42 |
| C3RMC271310 Buy › | 27 | 13 | 10 | 25.17 | 11.17 | Single | 38 |
| C3RMC302010 Buy › | 30 | 20 | 10 | 28.17 | 18.17 | Single | 69 |
| C3RMC303010 Buy › | 30 | 30 | 10 | 28.17 | 28.17 | Double | 92 |
| C3RMC363612 Buy › | 36 | 36 | 12 | 34.17 | 34.17 | Double | 131 |
| C3RMC484812 Buy › | 48 | 48 | 12 | 46.17 | 46.17 | Double | 210 |
