Metering Cabinets
NEMA 1
Application
- Designed for indoor housing of metering transformers.
Standards
- CSA Approved
- Complies with
- IEC 60529, IP20
Construction
- Formed and spot welded from 14 or 16 gauge steel.
- Spot welded construction and formed edges.
- Removable inner panel.
- Hinged covers.
- 2 cutouts in top of each cabinet with metering plates included.
Finish
- Enclosure and cover are finished in ANSI 61 gray inside and out.

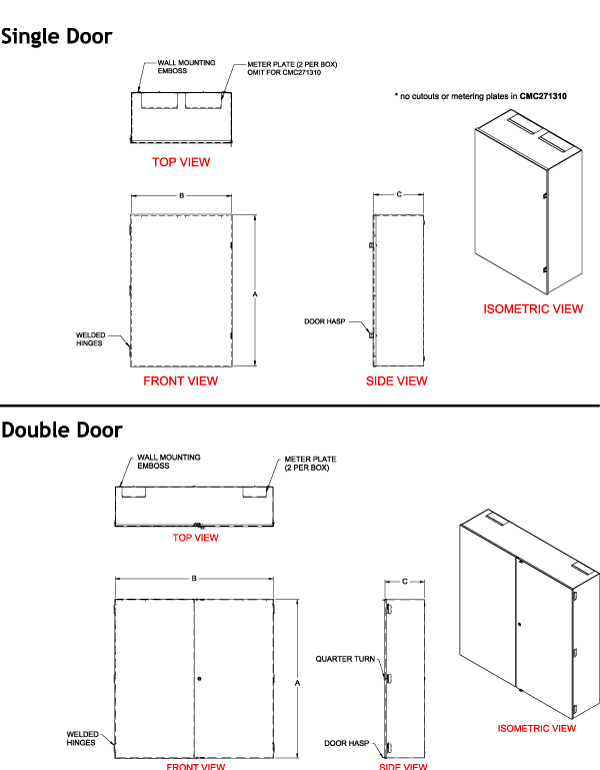

Part No. | Dimensions | Panel Dimensions |
Type of Door |
Latch Type |
Latch Qty |
Metering Plates |
Ship Wt. lbs. |
||
A | B | C | |||||||
CMC202010 | 20 | 20 | 10 | 16 x 16 | Single | Hasp | 2 | 2 | 42 |
CMC271310 | 27 | 13 | 10 | 23 x 9 | Single | Hasp | 2 | 0 | 38 |
CMC302010 | 30 | 20 | 10 | 26 x 16 | Single | Hasp | 2 | 2 | 69 |
CMC303010 | 30 | 30 | 10 | 26 x 26 | Double | 2 Hasp + Quarter Turn | 3 | 2 | 92 |
CMC363612 | 36 | 36 | 12 | 32 x 32 | Double | 2 Hasp + Quarter Turn | 3 | 2 | 131 |
CMC484812 | 48 | 48 | 12 | 44 x 44 | Double | 2 Hasp + Quarter Turn | 3 | 2 | 210 |
