Ontario Hydro Meter Cabinet
NEMA 1
Application
- Designed for certain specific Ontario metering applications.
Construction
- Spot welded 16 gauge steel construction.
- Heavy duty padlockable "L" handle.
- Viewing window with removable cover plate.
- Pre-mounted ground lug.
- Inner panel with pre-drilled holes and mounting bracket.
- Oil resistant gasket.
Finish
- Enclosure and cover are finished in ANSI 61 gray inside and out.
- Inner panel is finished in ANSI 61 gray powder coating.

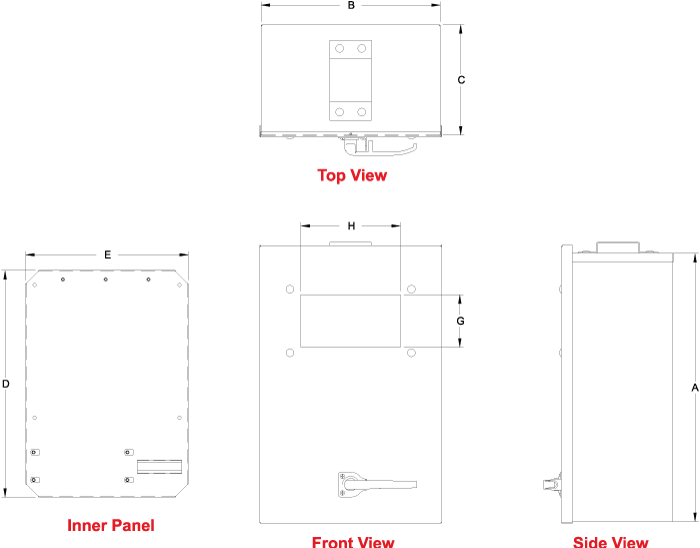

| Part No. | Overall Dimensions |
Panel Size | Viewing Area | Ship Wt. (lbs.) |
||||
| A | B | C | D | E | G | H | ||
| CMCO241610 | 24.00 | 16.00 | 10.00 | 20.50 | 14.75 | 4.75 | 9.00 | 38 |
