Hinged Cover Lift-Off Enclosures without Knockouts
NEMA 3R
Application
- Designed for use as a wiring/junction box.
- Provides protection against rain, sleet, snow and dripping water.
Standards
- UL-50 Type 3R
- CSA Type 3R
- Complies with
- NEMA Type 3R
- IEC 60529, IP20
Construction
- Formed and spot welded from 16 or 14 gauge galvanized steel.
- Extended height door and seam-free sides, front and back.
- Galvanized steel lift-off hinges with stainless steel pins.
- Cover fastened securely with zinc plated draw pull catches.
- Provisions for padlocking on zinc-plated draw pull catch.
- Embossed mounting holes on back.
- Oil resistant gaskets are permanently secured.
Finish
- Enclosure and cover are finished in ANSI 61 gray powder coating.
| Part Number | Optional Panel |
Optional Panel Mounting Kit |
Optional Mount Foot Kit |
Optional | Overall Dim. |
Body Ga. |
Ship Wt. lbs |
||||||||

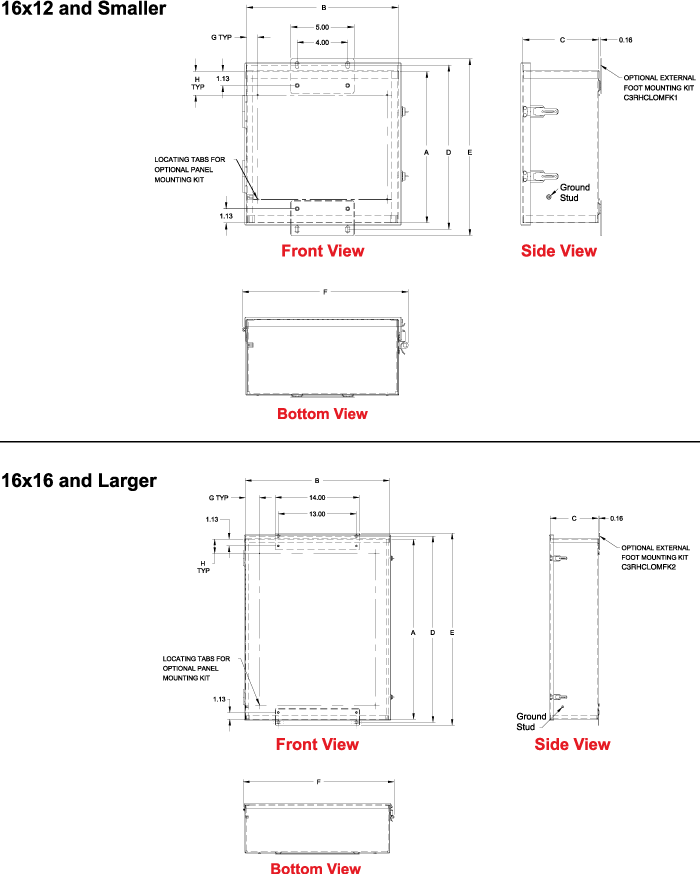

| A | B | C | Panel Size | D | E | F | G | H | |||||||
| C3R864HCLO Buy › | 14R0505 | C3RHCLOPK1 | C3RHCLOMFK1 | 8 | 6 | 4 | 4.88 | 4.88 | 9 | 10 | 7.12 | 0.88 | 1.88 | 16 | 5 |
| C3R886HCLO Buy › | 14R0705 | C3RHCLOPK1 | C3RHCLOMFK1 | 8 | 8 | 6 | 6.75 | 4.88 | 9 | 10 | 9.12 | 0.88 | 1.88 | 16 | 7 |
| C3R1086HCLO Buy › | 14R0707 | C3RHCLOPK1 | C3RHCLOMFK1 | 10 | 8 | 6 | 6.75 | 6.88 | 11 | 12 | 9.12 | 0.88 | 1.88 | 16 | 9 |
| C3R12106HCLO Buy › | 14R0909 | C3RHCLOPK1 | C3RHCLOMFK1 | 12 | 10 | 6 | 8.75 | 8.88 | 13 | 14 | 11.12 | 0.88 | 1.88 | 16 | 11 |
| C3R12126HCLO Buy › | 14R1109 | C3RHCLOPK1 | C3RHCLOMFK1 | 12 | 12 | 6 | 10.75 | 8.88 | 13 | 14 | 13.12 | 0.88 | 1.88 | 16 | 12 |
| C3R16126HCLO Buy › | 14R1311 | C3RHCLOPK1 | C3RHCLOMFK1 | 16 | 12 | 6 | 12.75 | 10.88 | 17 | 18 | 13.12 | 0.88 | 1.88 | 16 | 15 |
| C3R16166HCLO Buy › | 18P1313 | C3RHCLOPK2 | C3RHCLOMFK2 | 16 | 16 | 6 | 13.00 | 13.00 | 17 | 18 | 17.12 | 2.38 | 2.38 | 16 | 23 |
| C3R20166HCLO Buy › | 18P1713 | C3RHCLOPK2 | C3RHCLOMFK2 | 20 | 16 | 6 | 17.00 | 13.00 | 21 | 22 | 17.12 | 2.38 | 2.38 | 16 | 27 |
| C3R20208HCLO Buy › | 18P1717 | C3RHCLOPK2 | C3RHCLOMFK2 | 20 | 20 | 8 | 17.00 | 17.00 | 21 | 22 | 21.12 | 2.38 | 2.38 | 16 | 36 |
| C3R24208HCLO Buy › | 18P2117 | C3RHCLOPK2 | C3RHCLOMFK2 | 24 | 20 | 8 | 21.00 | 17.00 | 25 | 26 | 21.12 | 2.38 | 2.38 | 16 | 43 |
| C3R24248HCLO Buy › | 18P2121 | C3RHCLOPK2 | C3RHCLOMFK2 | 24 | 24 | 8 | 21.00 | 21.00 | 25 | 26 | 25.12 | 2.38 | 2.38 | 14 | 49 |
| C3R30248HCLO Buy › | 18P2721 | C3RHCLOPK2 | C3RHCLOMFK2 | 30 | 24 | 8 | 27.00 | 21.00 | 31 | 32 | 25.12 | 2.38 | 2.38 | 14 | 57 |
