1416 Series - Ventilated Component Case
NEMA 1
Application
- Designed to provide mechanical protection for components requiring ventilation.
- Suitable for use where heat dissipation is required.
Standards
- Complies with
- NEMA Type
Construction
- Base is formed from 16 gauge steel with two 0.5”/0.75” conduit knockouts located in each end.
- Four .125” high raised dimples with mounting holes are provided on the base.
- Cover is formed from 18 gauge steel with 0.235” x 1.5” ventilating slots (0.199” x 1.12” on E & G only).
- Screw holes and offsets in the cover allow easy assembly.
Finish
- Base and cover are finished in ANSI 61 gray powder coating.

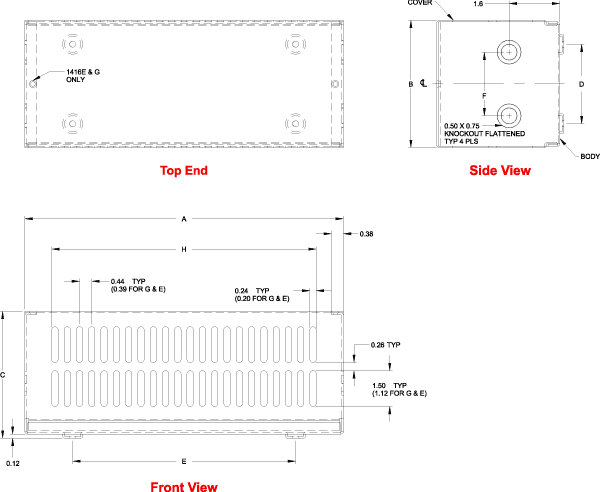

| Part No. | Dimensions | Ventilated Area | Ship Wt. (Lbs) |
||||||
| A | B | C | D | E | F | G | H | ||
| 1416E Buy › | 6 | 4 | 4 | 2.5 | 4 | 2 | 2.50 | 4.06 | 2 |
| 1416G Buy › | 10 | 4 | 4 | 2.5 | 7 | 2 | 2.50 | 8.31 | 2 |
| 1416I Buy › | 10 | 6 | 6 | 4.5 | 7 | 3 | 3.25 | 7.68 | 4 |
| 1416K Buy › | 11 | 7 | 7 | 5.5 | 8 | 4 | 5.00 | 7.68 | 6 |
| 1416M Buy › | 12 | 8 | 8 | 6.5 | 9 | 5 | 5.00 | 10.31 | 8 |
| 1416O Buy › | 15 | 10 | 8 | 8.5 | 12 | 6 | 5.00 | 12.93 | 10 |
| 1416Q Buy › | 20 | 10 | 8 | 8.5 | 17 | 6 | 5.00 | 18.18 | 12 |
| 1416T Buy › | 20 | 10 | 10 | 8.5 | 17 | 6 | 6.75 | 15.56 | 14 |
