Description

• Narrow design for side mounting on any enclosure surface where hot spot or low capacity cooling is required.
• Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.


Standards

• Maintains enclosure's NEMA 12 rating
• IP 54
• UL, cUL and CE

Features

• R134a refrigerant.
• Thermostat control accessible from inside enclosure.
• Expansion valve increases efficiency with improved evaporator heat transfer and less frequent compressor operation.
• Built in condensate evaporator.
• Continuous air circulation from high capacity fans.
• EMI/RFI suppression meets CE.
• Self-diagnostics on startup.
• Fault indication via LED light.
• Provision for door contact allowing power down when enclosure door is opened.

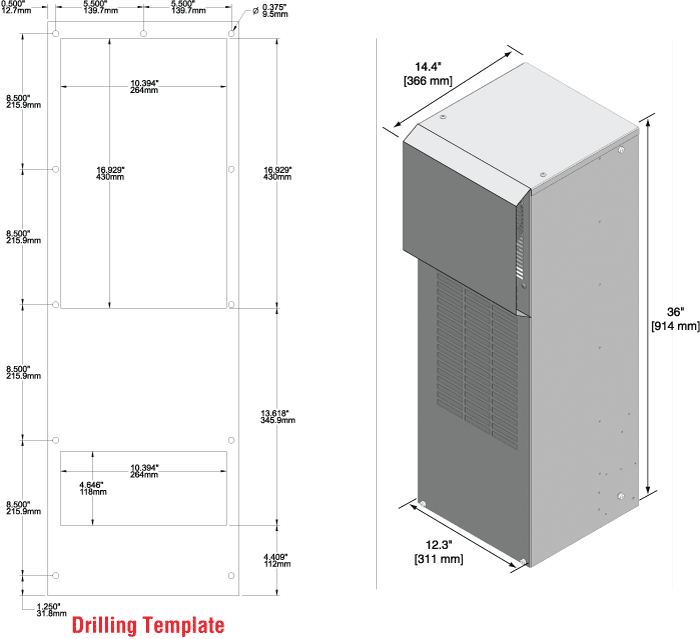

• Gasket, mounting kit and template for enclosure cutout and drilling are included.
• Condensate drain hose and clamp provided.
• Q Mount allows unit to hang in place for easy installation.

Accessories

• Gaskets
• Remote door switch
